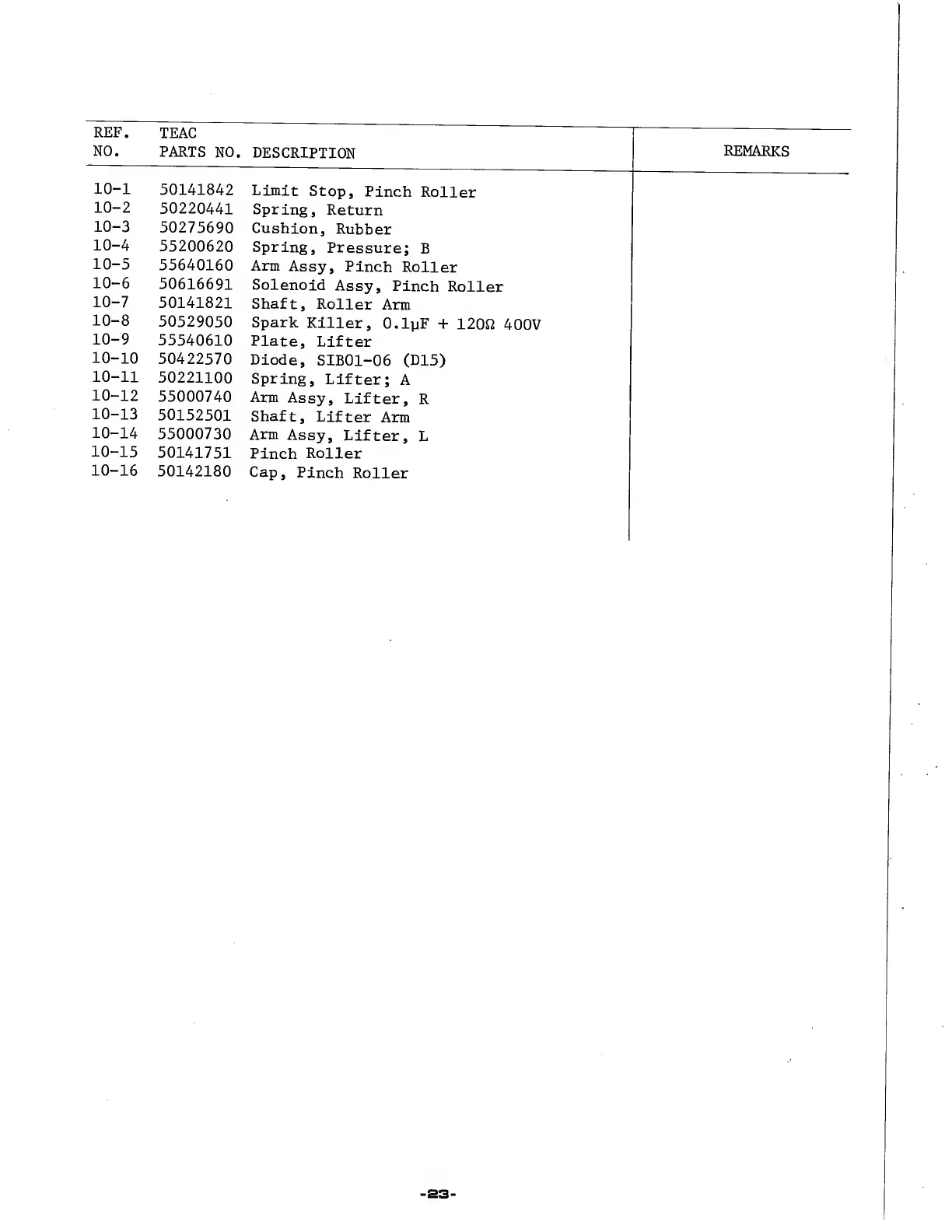

REF.
NO.
TEAC
PARTS NO.
DESCRIPTION REMARKS
10-1
50141842
Limit Stop, Pinch Roller
10-2
50220441
Spring, Return
10-3
50275690
Cushion, Rubber
10-4
55200620
Spring, Pressure; B
10-5
55640160
Arm Assy, Pinch Roller
10-6
50616691
Solenoid Assy, Pinch Roller
10-7
50141821
Shaft, Roller Arm
10-8
50529050
Spark Killer, O.lyF + 1200 400V
10-9
55540610
Plate, Lifter
10-10
50422570
Diode, SIB01-06 (D15)
10-11
50221100
Spring, Lifter; A
10-12
55000740
Arm Assy, Lifter, R
10-13
50152501
Shaft, Lifter Arm
10-14
55000730
Arm Assy, Lifter, L
10-15
50141751
Pinch Roller
10-16
50142180
Cap, Pinch Roller
23
