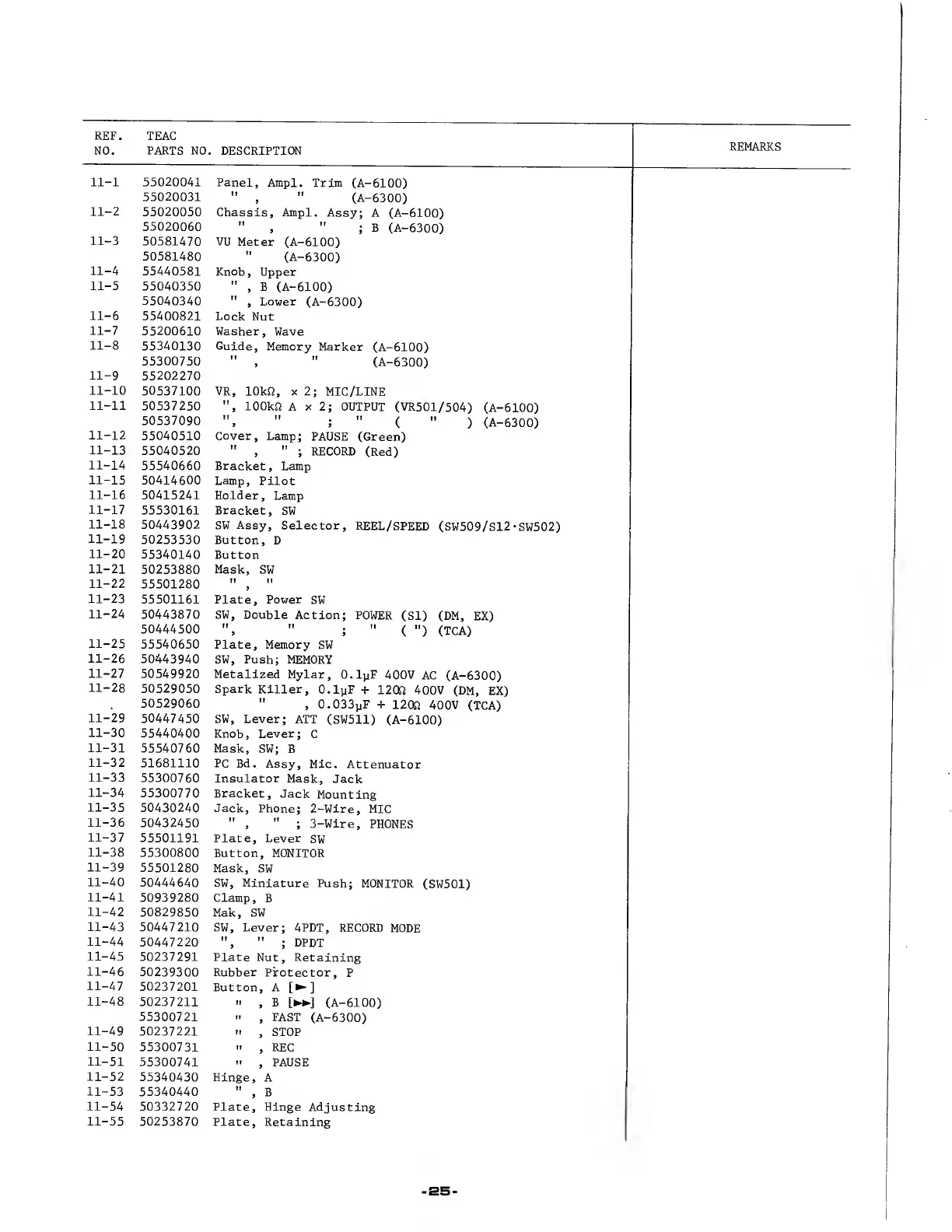

Teac A-6300 - Page 77

REF.
NO.
TEAC
PARTS NO . DESCRIPTION
REMARKS
11-1 55020041
Panel, Ampl. Trim (A-6100)
55020031
" , " (A-6300)
11-2
55020050
Chassis, Ampl. Assy; A (A-6100)
55020060
", " ; B (A-6300)
11-3
50581470 VU Meter (A-6100)
50581480
" (A-6300)
11-4
55440581
Knob , Upper
11-5
55040350
" , B (A-6100)
55040340
" , Lower (A-6300)
11-6
55400821
Lock Nut
11-7
55200610 Washer, Wave
11-8
55340130
Guide, Memory Marker (A-6100)
55300750
" , " (A-6300)
11-9 55202270
11-10
50537100
VR, lOkfl, x 2; MIC/LINE
11-11
50537250
", lOOkSJ A X 2; OUTPUT (VR501/504) (A-6100)
50537090
", " ; " ( " ) (A-6300)
11-12
55040510
Cover, Lamp; PAUSE (Green)
11-13 55040520
", " ; RECORD (Red)
11-14
55540660
Bracket , Lamp
11-15 50414600
Lamp, Pilot
11-16
50415241 Holder, Lamp
11-17
55530161
Bracket, SW
11-18
50443902
SW Assy, Selector, REEL/SPEED (SW509/S12-SW502)
11-19
50253530
Button, D
11-20
55340140 Button
11-21
50253880
Mask, SW
11-22
55501280
It It
»
11-23 55501161
Plate, Power SW
11-24
50443870
SW, Double Action; POWER (SI) (DM, EX)
50444500
", " ; " ( ") (TCA)
11-25
55540650
Plate, Memory SW
11-26
50443940
SW, Push; MEMORY
11-27
50549920
Metalized Mylar, O.lpF 400V AC (A-6300)
11-28
50529050
Spark Killer, O.lpF + 1202 400V (DM, EX)
50529060
" , 0.033yF + 1202 400V (TCA)
11-29
50447450
SW, Lever; ATT (SW511) (A-6100)
11-30
55440400
Knob, Lever; C
11-31
55540760 Mask, SW; B
11-32
51681110
PC Bd. Assy, Mic. Attenuator
11-33
55300760
Insulator Mask, Jack
11-34
55300770
Bracket, Jack Mounting
11-35
50430240
Jack, Phone; 2-Wire, MIC
11-36
50432450
", " ; 3-Wire, PHONES
11-37
55501191 Plate, Lever SW
11-38
55300800 Button, MONITOR
11-39
55501280 Mask, SW
11-40
50444640
SW, Miniature Push; MONITOR (SW501)
11-41
50939280 Clamp, B
11-42
50829850 Mak, SW
11-43
50447210
SW, Lever; 4PDT, RECORD MODE
11-44
50447220 ", " ; DPDT
11-45
50237291 Plate Nut, Retaining
11-46
50239300 Rubber Protector, P
11-47
50237201
Button, A [ ► ]
11-48
50237211
" , B [m»] (A-6100)
55300721
" , FAST (A-6300)
11-49 50237221
" , STOP
11-50
55300731 " , REC
11-51
55300741 " , PAUSE
11-52
55340430 Hinge, A
11-53 55340440
" , B
11-54
50332720
Plate, Hinge Adjusting
11-55 50253870
Plate, Retaining
