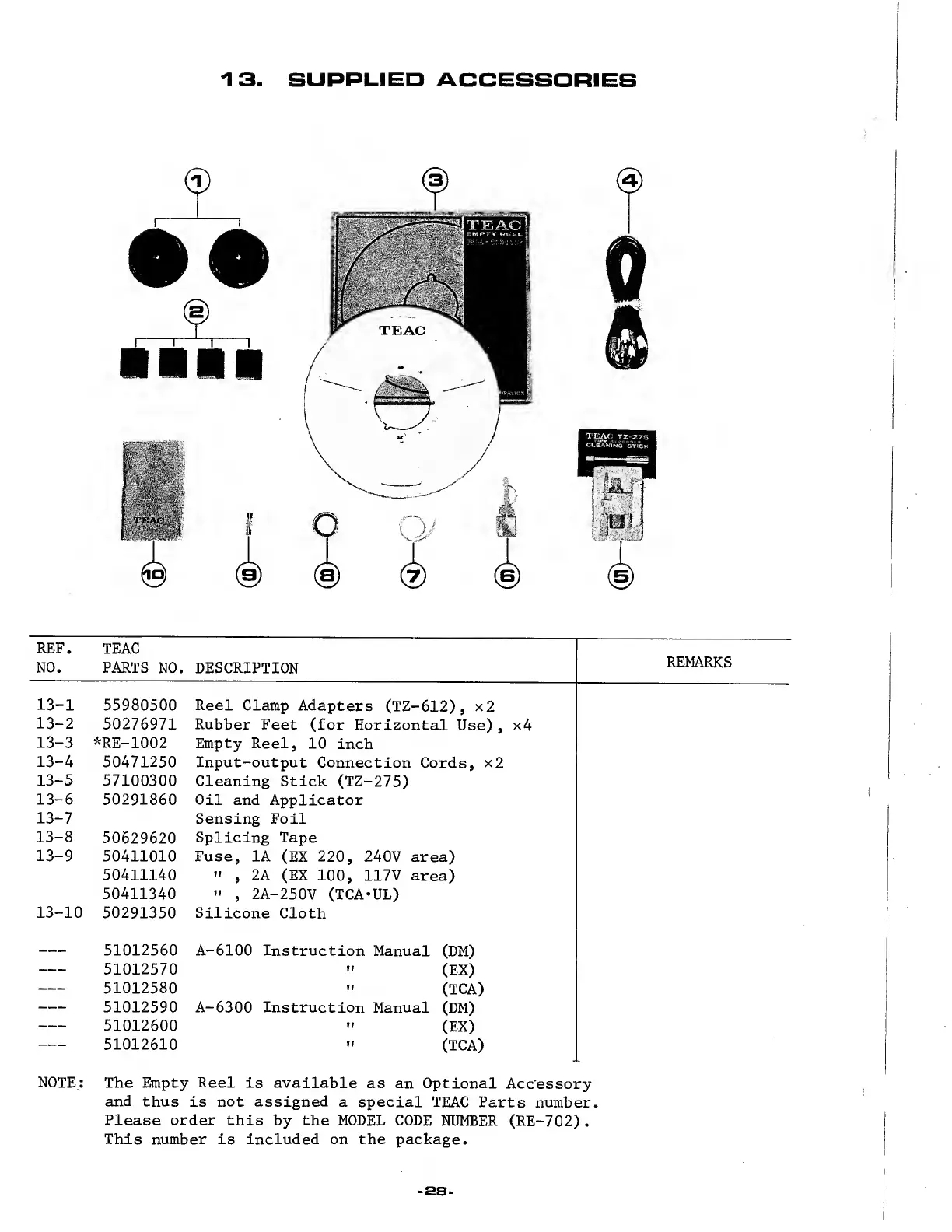

Teac A-6300 - Page 80

13
REF.
NO.
13-1
13-2
13-3
13-4
13-5
13-6
13-7
13-8
13-9
13-10
NOTE:
TEAC
PARTS NO. DESCRIPTION
55980500
50276971
*RE-1002
50471250
57100300
50291860
50629620
50411010
50411140
50411340
50291350
Reel Clamp Adapters (TZ-612), x2
Rubber Feet (for Horizontal Use),
Empty Reel, 10 inch
Input-output Connection Cords, x2
Cleaning Stick (TZ-275)
Oil and Applicator
Sensing Foil
Splicing Tape
Fuse, 1A (EX 220, 240V area)
» , 2A (EX 100, 117V area)
" , 2A-250V (TCA'UL)
Silicone Cloth
x4
51012560 A-6100 Instruction Manual (DM)
51012570 •' (EX)
51012580 » (TCA)
51012590 A-6300 Instruction Manual (DM)
51012600 » (EX)
51012610 » (TCA)
The Empty Reel is available as an Optional Accessory
and thus is not assigned a special TEAC Parts number.
Please order this by the MODEL CODE NUMBER (RE-702).
This number is included on the package.
REMARKS
- 2 8 -
