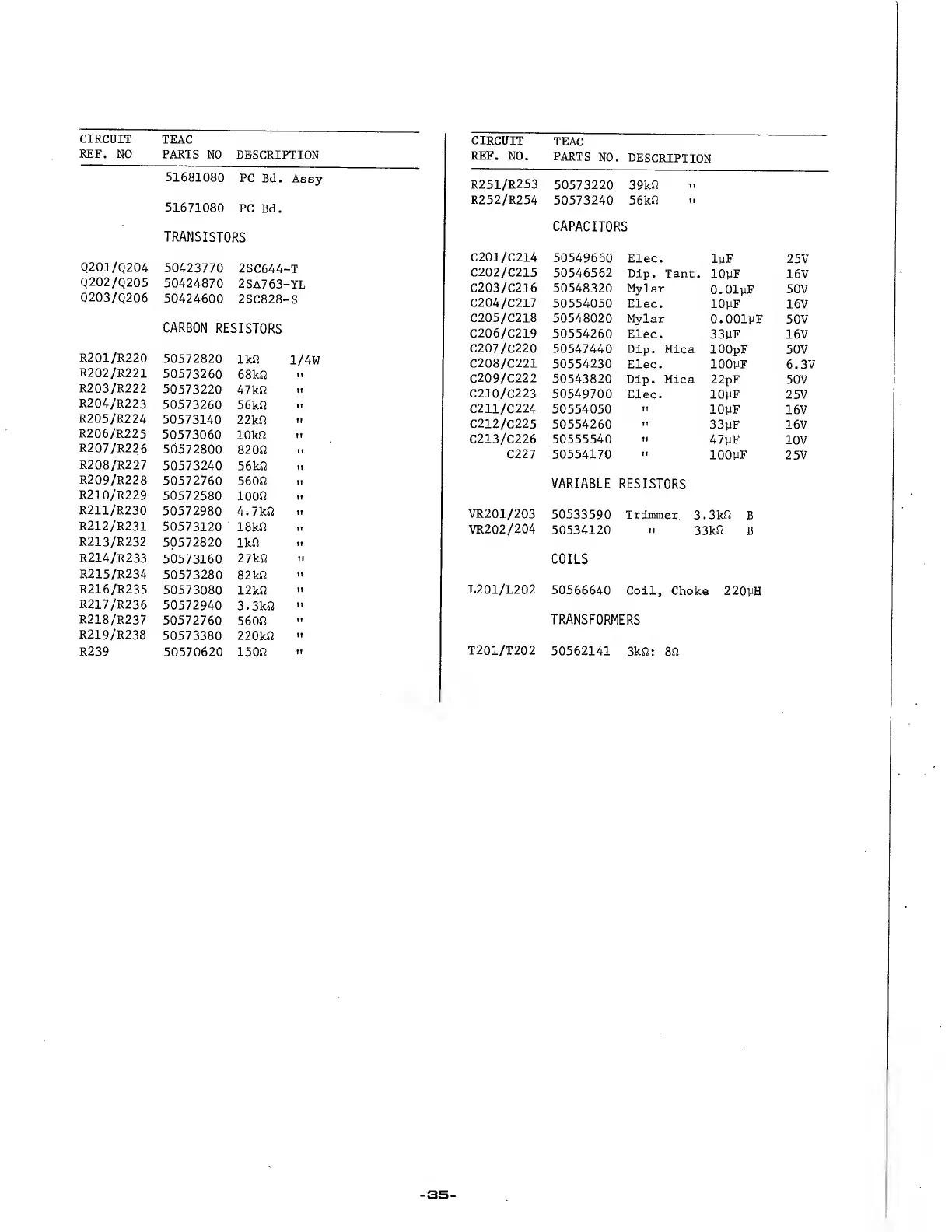

Teac A-6300 - Page 87

CIRCUIT
REF. NO
TEAC
PARTS NO
DESCRIPTION
51681080
PC Bd.
Assy
51671080 PC Bd.
TRANSISTORS
Q201/Q204
50423770
2SC644- -T
Q202/Q205
50424870
2SA763- -YL
Q203/Q206
50424600
2SC828-
-S
CARBON RESISTORS
R201/R220
50572820
lkft
1/4W
R202/R221
50573260 68kft
II
R203/R222
50573220
47kft
II
R204/R223
50573260
56kft
II
R205/R224
50573140
22kft
II
R206/R225
50573060
lOkft
It
R207/R226
50572800 820ft
It
R208/R227
50573240 56kft
II
R209/R228
50572760 560ft
II
R210/R229
50572580 100ft
II
R211/R230
50572980
4. 7kfi
II
R212/R231
50573120
18kft
II
R213/R232
50572820
lkft
II
R214/R233
50573160
27kft
II
R215/R234
50573280
82kft
II
R216/R235
50573080
12kft
II
R217/R236
50572940
3.3kft
II
R218/R237
50572760
560ft
II
R219/R238
50573380
220kft
II
R239
50570620 150ft
II
CIRCUIT
REF. NO.
TEAC
PARTS NO.
DESCRIPTION
R251/R253
50573220 39kft
R252/R254 50573240 56kft 'i
CAPACITORS
C201/C214
50549660 Elec.
IpF
25V
C202/C215 50546562
Dip. Tant. lOpF
16V
C203/C216
50548320 Mylar
0. 01pF
50V
C204/C217
50554050 Elec.
lOpF
16V
C205/C218
50548020 Mylar
O.OOlpF 50V
C206/C219
50554260
Elec.
33pF
16V
C207/C220
50547440
Dip. Mica
lOOpF 50V
C208/C221
50554230 Elec.
100PF 6.3V
C209/C222
50543820 Dip. Mica
22pF
50V
C210/C223
50549700 Elec. lOpF
25V
C211/C224
50554050
It
lOpF
16V
C212/C225
50554260
tt
33pF
16V
C213/C226 50555540
II
47pF
10V
C227
50554170
It
lOOpF
25V
VARIABLE
RESISTORS
VR201/203
50533590
Trimmer 3.
3kft B
VR202/204
50534120
> ■ 33kft B
COILS
L201/L202
50566640
Coil, Choke 220PH
TRANSFORMERS
T201/T202
50562141
3kft: 8ft
