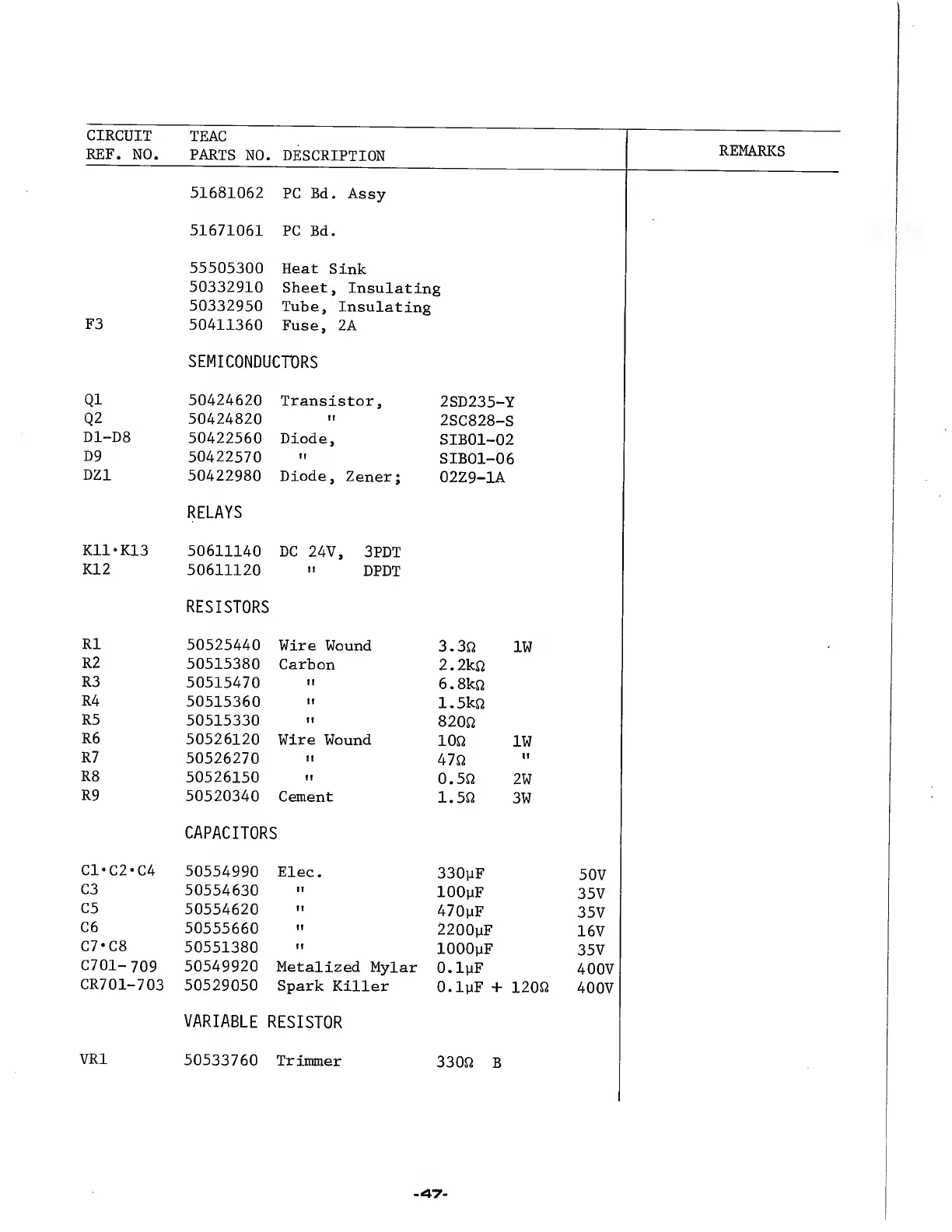

CIRCUIT TEAC
REF. NO. PARTS NO. DESCRIPTION
REMARKS
51681062 PC Bd. Assy
51671061 PC Bd.
55505300 Heat Sink
50332910 Sheet, Insulating
50332950 Tube, Insulating
50411360 Fuse, 2A
SEMICONDUCTORS
Ql
50424620
Transistor,
2SD235-Y
Q2
50424820
ft
2SC828-S
D1-D8
50422560
Diode,
SIB01-02
D9
50422570
ti
SIBO1-06
DZ1
50422980
Diode, Zener;
02Z9-1A
RELAYS
K11-K13
50611140
DC 24V, 3PDT
K12
50611120
•• DPDT
RESISTORS
R1
50525440
Wire Wound
3.3 Q
R2
50515380
Carbon
2.2kfl
R3
50515470
11
6.8kn
R4
50515360
II
1.5kn
R5
50515330
II
820fi
R6
50526120 Wire Wound
ion
R7
50526270
II
47ft
R8
50526150
II
o.5n
R9
50520340 Cement
1.5Q
CAPACITORS
C1*C2«C4
50554990
Elec.
330pF
C3
50554630
II
lOOpF
C5
50554620
If
470pF
C6
50555660
11
2200pF
C7* C8
50551380
11
lOOOpF
C701- 709
50549920
Metalized Mylar
O.lpF
CR701-703 50529050
Spark Killer
o.ipF + :
VARIABLE RESISTOR
VR1
50533760
Trimmer
330n B
