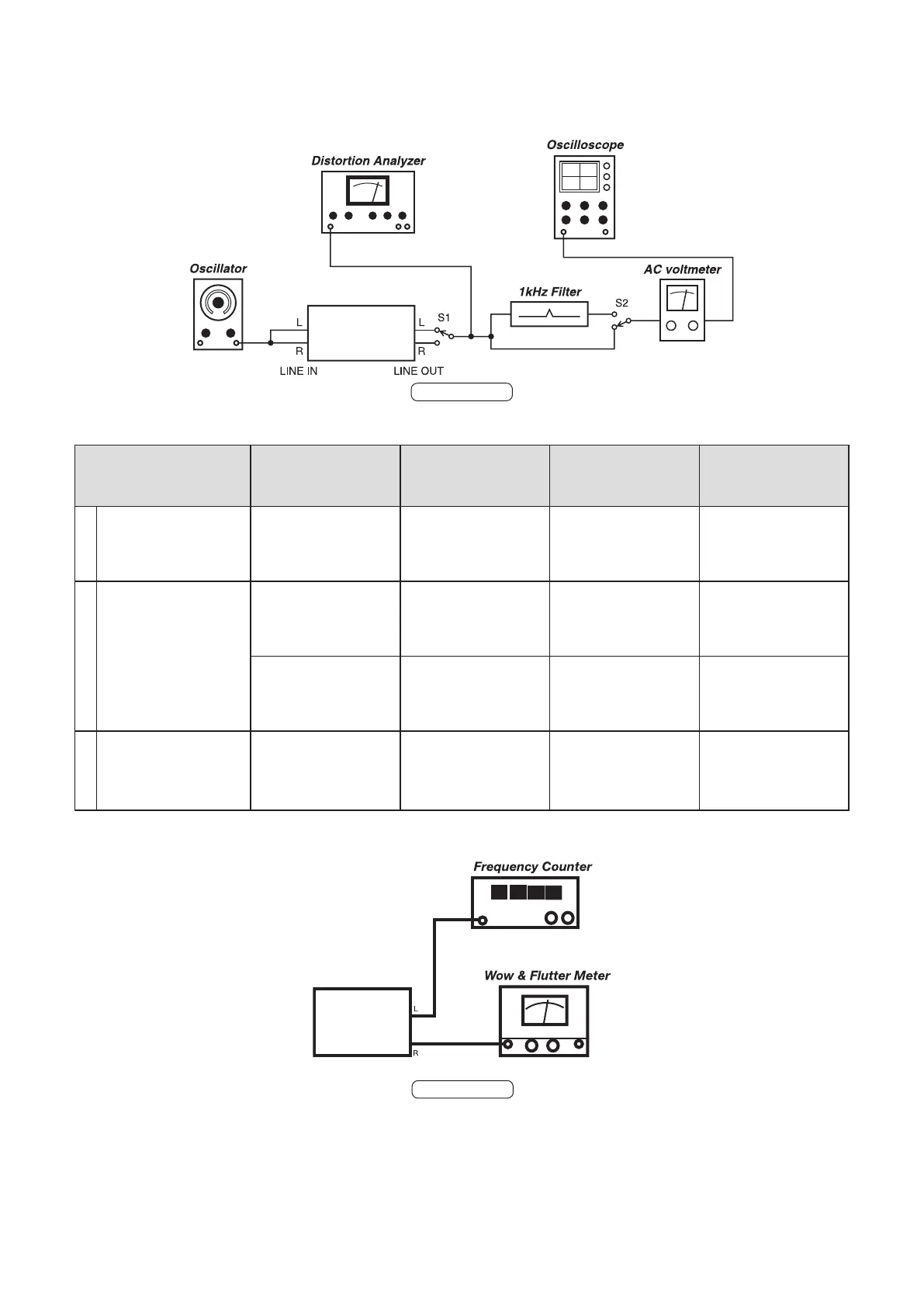

5-3 BASIC TEST SETUP
See the picture below.
5-3-1 Mechanical performance
5-3 BASIC TEST SETUP
Seethepicturebelow.
5-3-1 Mechanical performance
AD-RW900/900E
/,1(287
$'5:(
ITEM SETTING TEST TAPE ADJUSTMENTS
MEASURING POINTS,
RESULT
項 目 設 定 テストテープ 調整ヶ所 測定ヶ所・調整値
1.
Wow and utter
ワウ・フラッタ
PITCH CONTROL: Center
FWD and REV play
MTT-111N Check 0.28% or less (WRMS)
2.
Tape speed
テープ速度
PITCH CONTROL: Center
FWD play
MTT-111N
PCB,IF AD-RW900 G
(3E90100300A )
VR601
3,000±20Hz
REV play MTT-111N Check 3,000±75Hz
3.
Pitch control variable
range
ピッチコントロール
可変幅
MTT-111N Check
PITCH CONTROL -:
2,640Hz or lower
PITCH CONTROL -:
3,360Hz or higher
Fig. 5-2
Fig. 5-3
- 12 -
TEAC AD-RW900/900E
