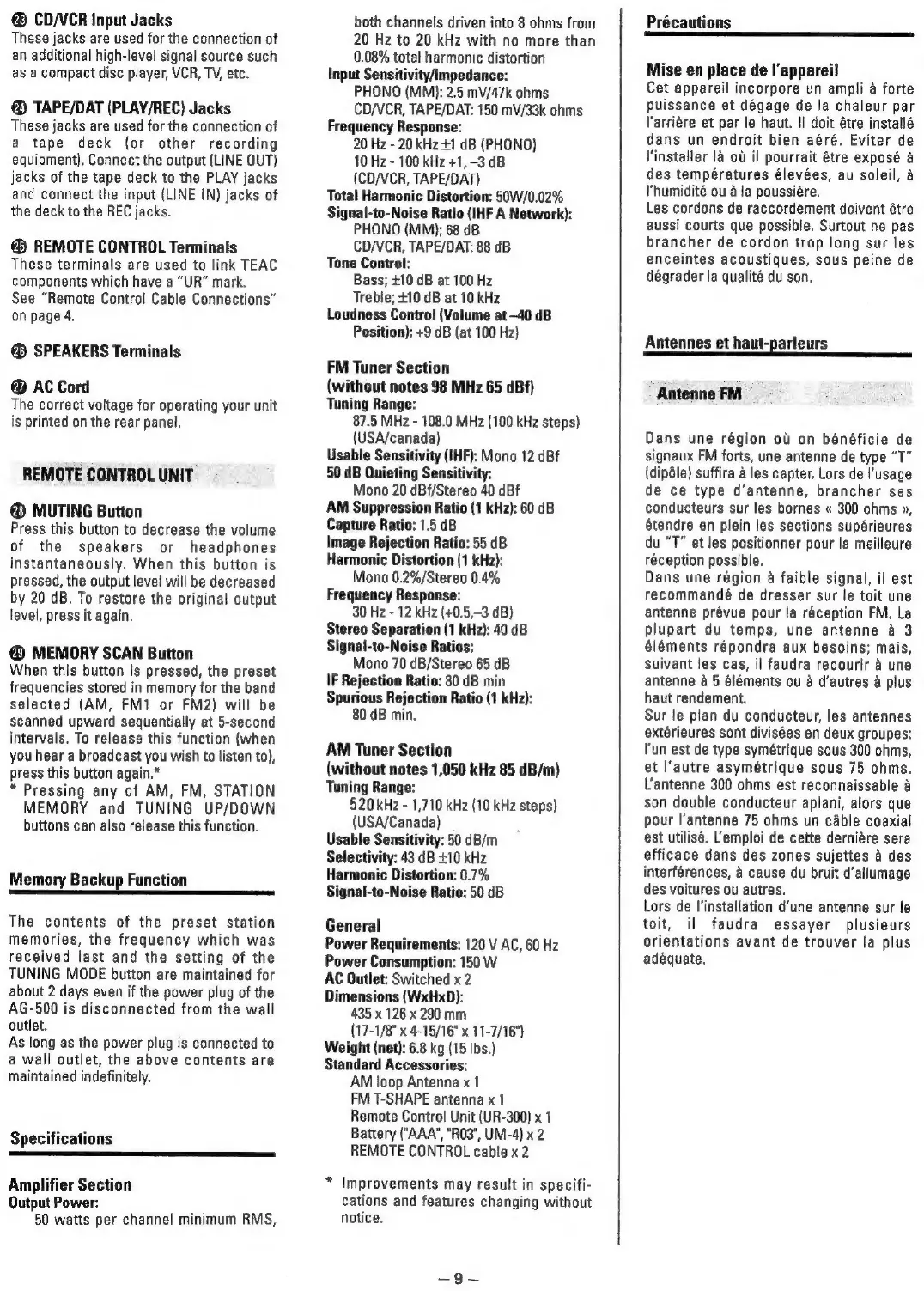

CD/VCR
Input
Jacks
These
jacks
are
used
for
the
connection
of
an
additional
high-level
signal
source
such
as
a
compact
disc
player,
VCR,
TV,
etc.
@
TAPE/DAT
(PLAY/REC)
Jacks
These
jacks
are
used
for
the
connection
of
a
tape
deck
(or
other
recording
equipment}.
Connect
the
output
(LINE
OUT)
jacks
of
the
tape
deck
to
the
PLAY
jacks
and
connect
the
input
(LINE
IN)
jacks
of
the
deck
to
the
REC
jacks.
@
REMOTE
CONTROL
Terminals
These
terminals
are
used
to
link
TEAC
components
which
have
a
“UR”
mark.
See
“Remote
Control
Cable
Connections”
on
page
4.
@
SPEAKERS
Terminals
AC
Cord
The
correct
voltage
for
operating
your
unit
is
printed
on
the
rear
panel.
REMOTE
CONTROL
UNIT
MUTING
Button
Press
this
button
to
decrease
the
volume
of
the
speakers
or
headphones
instantaneously.
When
this
button
is
pressed,
the
output
level
will
be
decreased
by
20
dB.
To
restore
the
original
output
level,
press
it
again.
MEMORY
SCAN
Button
When
this
button
is
pressed,
the
preset
frequencies
stored
in
memory
for
the
band
selected
(AM,
FM1
or
FM2)
will
be
scanned
upward
sequentially
at
5-second
intervals.
To
release
this
function
(when
you
hear
a
broadcast
you
wish
to
listen
to),
press
this
button
again.*
*
Pressing
any
of
AM,
FM,
STATION
MEMORY
and
TUNING
UP/DOWN
buttons
can
also
release
this
function.
Memory
Backup
Function
The
contents
of
the
preset
station
memories,
the
frequency
which
was
received
last
and
the
setting
of
the
TUNING
MODE
button
are
maintained
for
about
2
days
even
if
the
power
plug
of
the
AG-500
is
disconnected
from
the
wall
outlet.
As
long
as
the
power
plug
is
connected
to
a
wall
outlet,
the
above
contents
are
maintained
indefinitely.
Specifications
a
Amplifier
Section
Output
Power:
50
watts
per
channel
minimum
RMS,
both
channels
driven
into
8
ohms
from
20
Hz
to
20
kHz
with
no
more
than
0.08%
total
harmonic
distortion
Input
Sensitivity/Impedance:
PHONO
(MM):
2.5
mV/47k
ohms
CD/VCR,
TAPE/DAT:
150
mV/33k
ohms
Frequency
Response:
20
Hz
-
20
kHz
+1
dB
(PHONO)
10
Hz
-
100
kHz
+1,-3
dB
(CD/VCR,
TAPE/DAT)
Total
Harmonic
Distortion:
50W/0.02%
Signal-to-Noise
Ratio
(IHF
A
Network):
PHONO
(MM)};
68
dB
CD/VCR,
TAPE/DAT:
88
dB
Tone
Control:
Bass;
+10
dB
at
100
Hz
Treble;
+10
dB
at
10
kHz
Loudness
Control
(Volume
at
40
dB
Position):
+9
dB
(at
100
Hz}
FM
Tuner
Section
(without
notes
98
MHz
65
dBf)
Tuning
Range:
87.5
MHz
-
108.0
MHz
(100
kHz
steps)
(USA/canada)
Usable
Sensitivity
(IHF):
Mono
12
dBf
50
dB
Quieting
Sensitivity:
Mono
20
dBf/Stereo
40
dBf
AM
Suppression
Ratio
(1
kHz):
60
dB
Capture
Ratio:
1.5
dB
Rejection
Ratio:
55
dB
Harmonic
Distortion
(1
kHz):
Mono
0.2%/Stereo
0.4%
Frequency
Response:
30
Hz
-
12
kHz
(+0.5,-3
dB)
Stereo
Separation
(1
kHz):
40
dB
Signal-to-Noise
Ratios:
Mono
70
dB/Stereo
65
dB
IF
Rejection
Ratio:
80
dB
min
Spurious
Rejection
Ratio
(1
kHz):
80
dB
min.
AM
Tuner
Section
(without
notes
1,050
kHz
85
dB/m)
Tuning
Range:
520
kHz
-
1,710
kHz
(10
kHz
steps)
(USA/Canada)
Usable
Sensitivity:
50
dB/m
Selectivity:
43
dB
+10
kHz
Harmonic
Distortion:
0.7%
Signal-to-Noise
Ratio:
50
dB
General
Power
Requirements:
120
V
AC,
60
Hz
Power
Consumption:
150
W
AC
Outlet:
Switched
x
2
Dimensions
(WxHxD):
435
x
126
x
290
mm
(17-1/8"
x
4-15/16"
x
11-7/16")
Weight
(net):
6.8
kg
(15
Ibs.)
Standard
Accessories:
AM
loop
Antenna
x
1
FM
T-SHAPE
antenna
x
1
Remote
Control
Unit
(UR-300)
x
1
Battery
(“AAA’,
"R03",
UM-4)
x
2
REMOTE
CONTROL
cable
x
2
*
Improvements
may
result
in
specifi-
cations
and
features
changing
without
notice.
Précautions
Mise
en
place
de
l'appareil
Cet
appareil
incorpore
un
ampli
a
forte
puissance
et
dégage
de
la
chaleur
par
l'arriére
et
par
le
haut.
Il
doit
étre
installé
dans
un
endroit
bien
aéré.
Eviter
de
installer
la
ot
i!
pourrait
étre
exposé
a
des
températures
élevées,
au
soleil,
a
I'humidité
ou
a
la
poussiére.
Les
cordons
de
raccordement
doivent
étre
aussi
courts
que
possible.
Surtout
ne
pas
brancher
de
cordon
trop
long
sur
les
enceintes
acoustiques,
sous
peine
de
dégrader
la
qualité
du
son.
Antennes
et
haut-parleurs
Antenne
FM
Dans
une
région
ot
on
bénéficie
de
signaux
FM
forts,
une
antenne
de
type
“T”
(dipdle)
suffira
4
les
capter.
Lors
de
I'usage
de
ce
type
d’antenne,
brancher
ses
conducteurs
sur
les
bornes
«
300
ohms
»,
étendre
en
plein
les
sections
supérieures
du
“T”
et
les
positionner
pour
la
meilleure
réception
possible.
Dans
une
région
a
faible
signal,
il
est
recommandé
de
dresser
sur
le
toit
une
antenne
prévue
pour
la
réception
FM.
La
plupart
du
temps,
une
antenne
a
3
éléments
répondra
aux
besoins;
mais,
suivant
les
cas,
il
faudra
recourir
4
une
antenne
a 5
éléments
ou
a
d'autres
a
plus
haut
rendement.
Sur
le
plan
du
conducteur,
les
antennes
extérieures
sont
divisées
en
deux
groupes:
l'un
est
de
type
symétrique
sous
300
ohms,
et
l'autre
asymétrique
sous
75
ohms.
L'antenne
300
ohms
est
reconnaissable
a
son
double
conducteur
aplani,
alors
que
pour
l’antenne
75
ohms
un
cable
coaxial
est
utilisé.
Lemploi
de
cette
derniére
sera
efficace
dans
des
zones
sujettes
a
des
interférences,
a
cause du
bruit
d’allumage
des
voitures
ou
autres.
Lors
de
l'installation
d'une
antenne
sur
le
toit,
il
faudra
essayer
plusieurs
orientations
avant
de
trouver
la
plus
adéquate.
