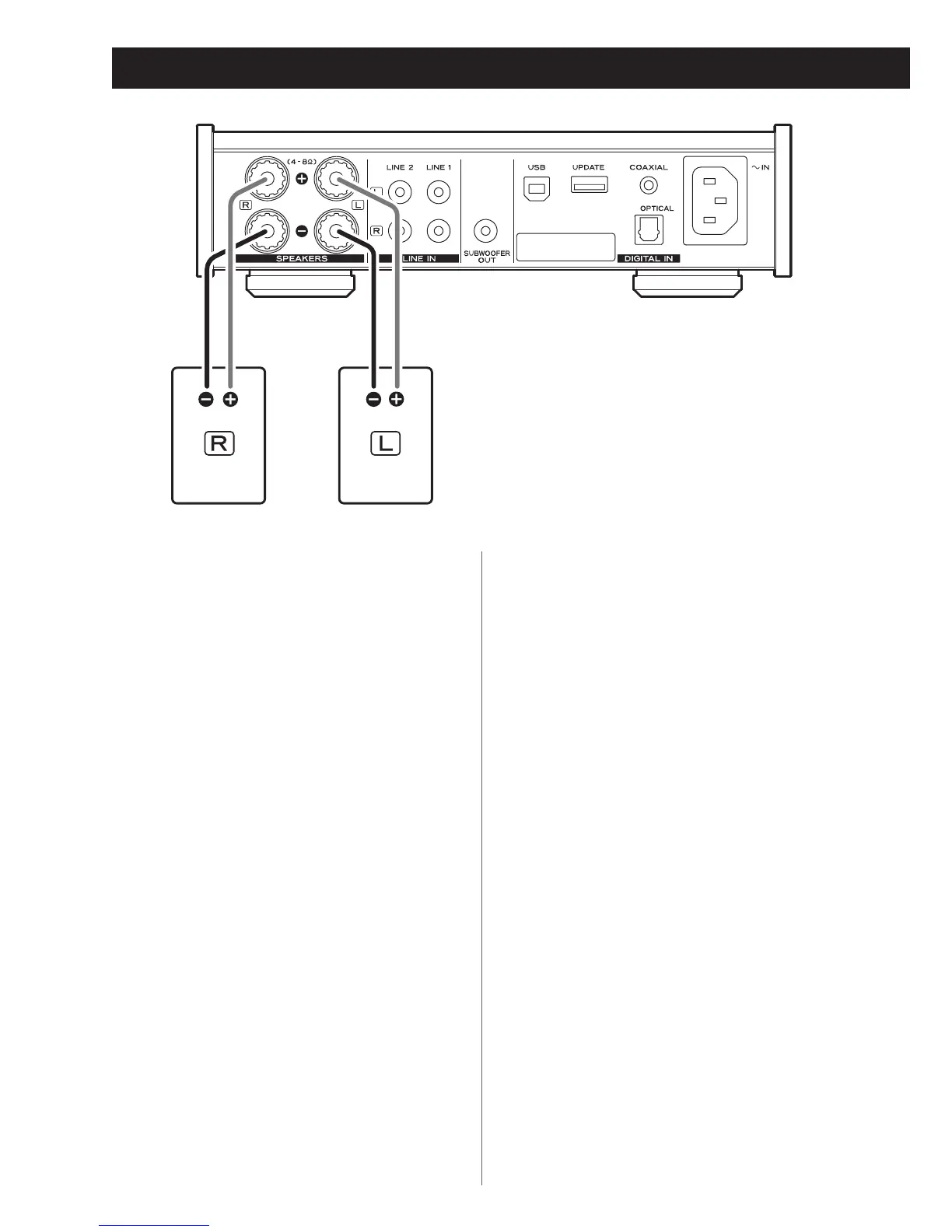

Speaker Connection
V
PRECAUTIONS before connection
o Connect the power cord's plug to the wall
outlet only after all other connections are
complete.
o Read the instructions of each device that
you intend to use with this unit.
Caution
o Check the impedance of your speakers.
Connect speakers with an impedance of
between 4 ohms and 8 ohms.
o The red speaker terminals are positive (+)
and the black speaker terminals are nega-
tive (–).
o Generally, the + wire of the speaker cable is
marked to distinguish it from the – wire of
the cable. Connect the marked wire to the
red + terminal and the unmarked wire to
the black – terminal.
o The metal portions of the two separate
wires should not touch. If they touch an
electrical short might occur. Shorted wires
can create a fire hazard or cause equipment
failure.
o Be sure to insert each plug securely. To pre-
vent hum and noise, avoid bundling the
cables together with the AC power cord or
other cables.
