Connections
CAUTION:
< Connect all cables with all units powered off. Be sure to
insert each plug securely. To prevent hum and noise, avoid
bundling the signal interconnection cables together with the
AC power cord or speaker cables.
< Read the instructions of each component you intend to use
with this unit.
RL
IN IN
RL
RL

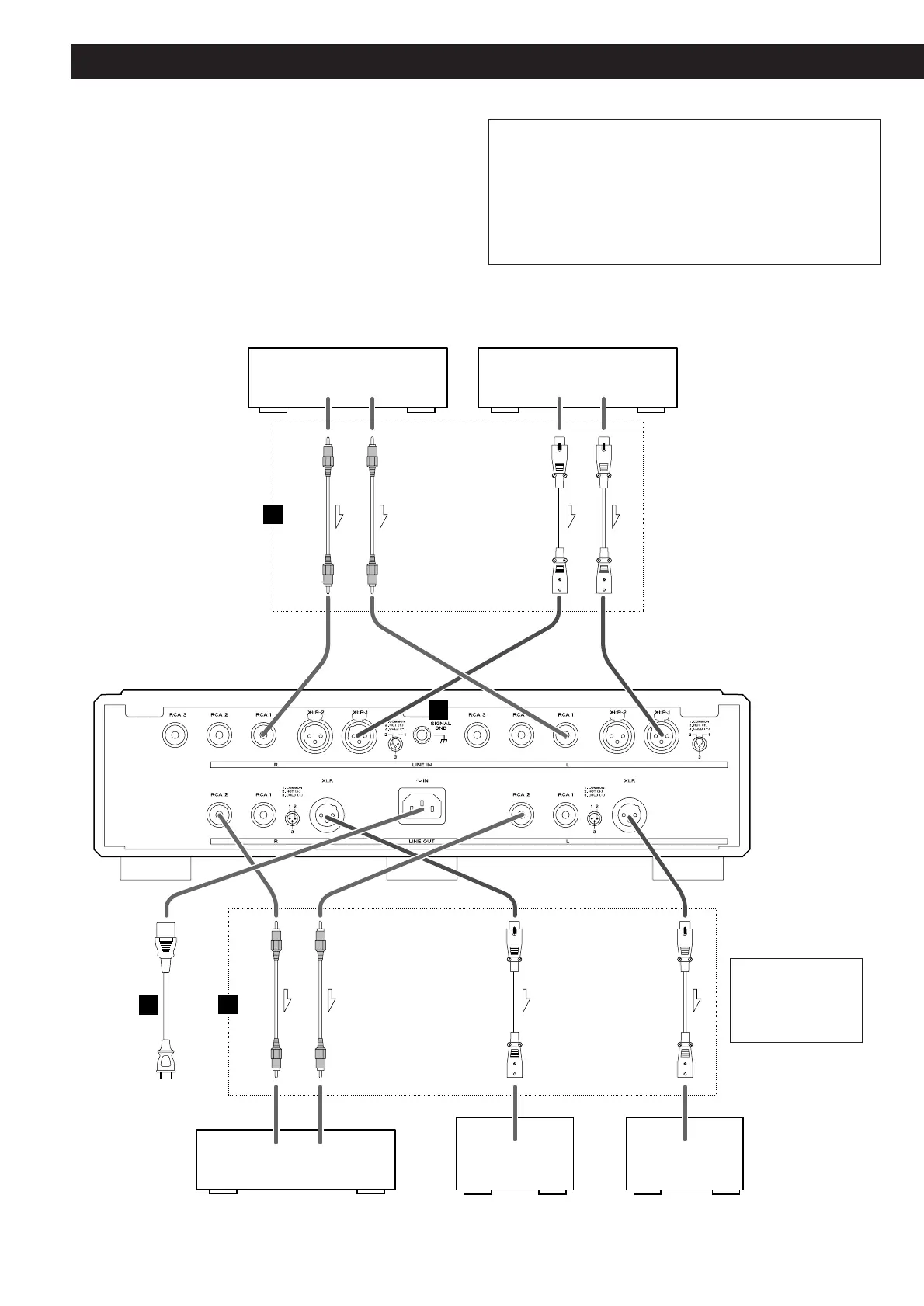

A
B
C
D
RCA audio cable
RCA audio cable
XLR audio cable
XLR audio cable
Wall socket
Super Audio CD
Player/CD Player etc.
Esoteric uses Esoteric MEXCEL stress-free 7N cable as a
reference. The following items are available in the Esoteric
MEXCEL cable series.
RCA audio cable
XLR audio cable
RCA digital cable
XLR digital cable
BNC digital cable
Speaker cable
Power cable
Super Audio CD
Player/CD Player etc.
LINE OUT
LINE OUT
RCA audio cable
RCA audio cable
XLR audio cable
XLR audio cable
LINE IN LINE IN LINE IN
Power amplifier Right channel Left channel
Power amplifier
XLR pin assignment:
1. COMMON
2. HOT (+)
3. COLD (–)
