Teac LCD4282FHDR - Names of each Part(Back View)

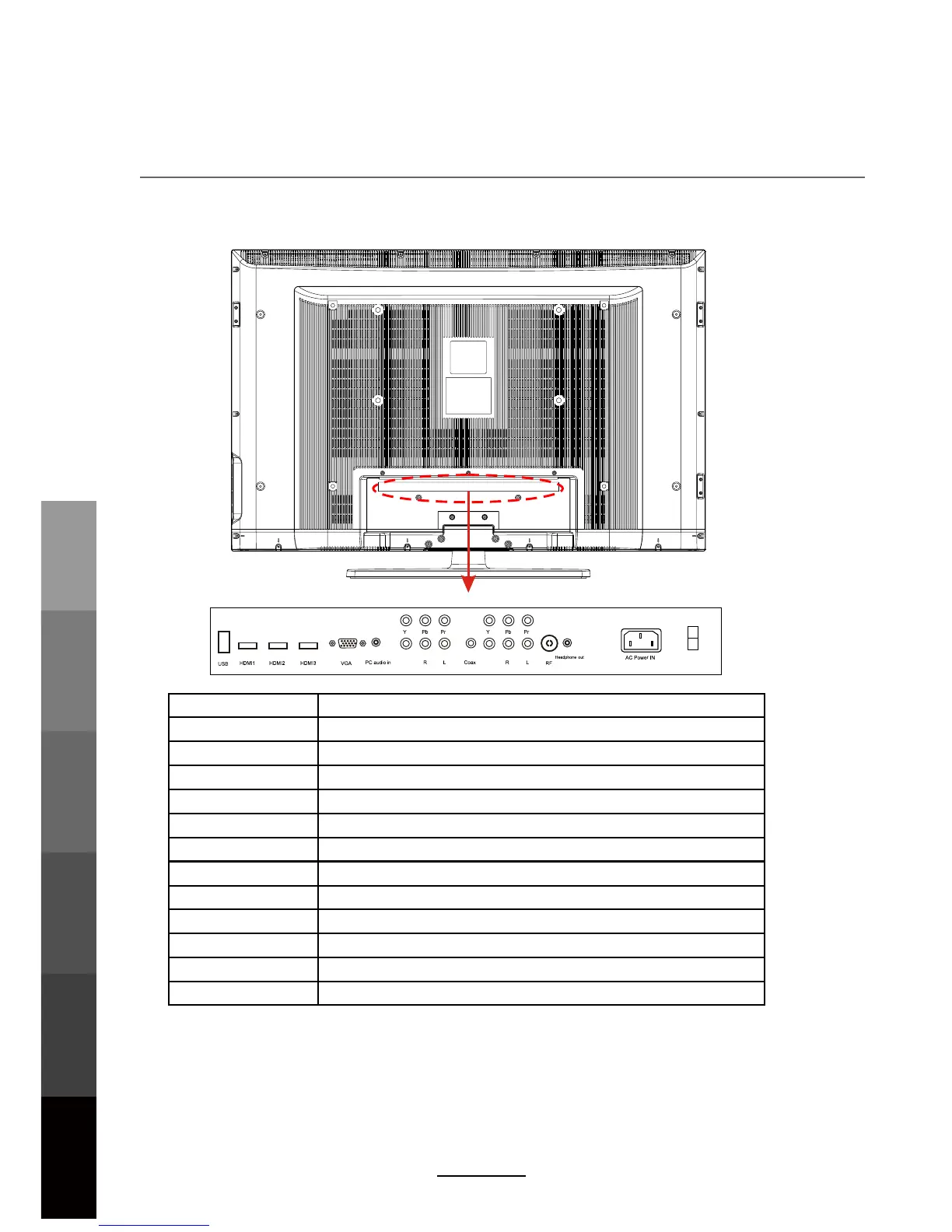

Names of each part
Back View
8
Name
Function Description
VGA Connect to the PC VGA output to display PC graphics
Connect to the video output of external devices Video1/2
AC POWER IN Connect to power supply
SWITCH Turn on/off the power supply
Connect to USB device for multimediaUSB
HDMI1/2/3 Connect to the HDMI socket of your DVD or Satellite Box
(AUDIO)L/R IN1/2 Audio signal input for AV(Shared with YPbPr1/2)
YPbPr1/2 Connect to the YPbPr output on external devices
PC audio in PC audio input
Headphone
Connect Headphone
RF
Connect to antenna or cable source
COAX
Digital output to AV receiver
NOTE: Before making or changing cable connections, please make sure that power to
the unit is completely disconnected by switching off the power supply and unplugging
the power cable from the wall outlet.
