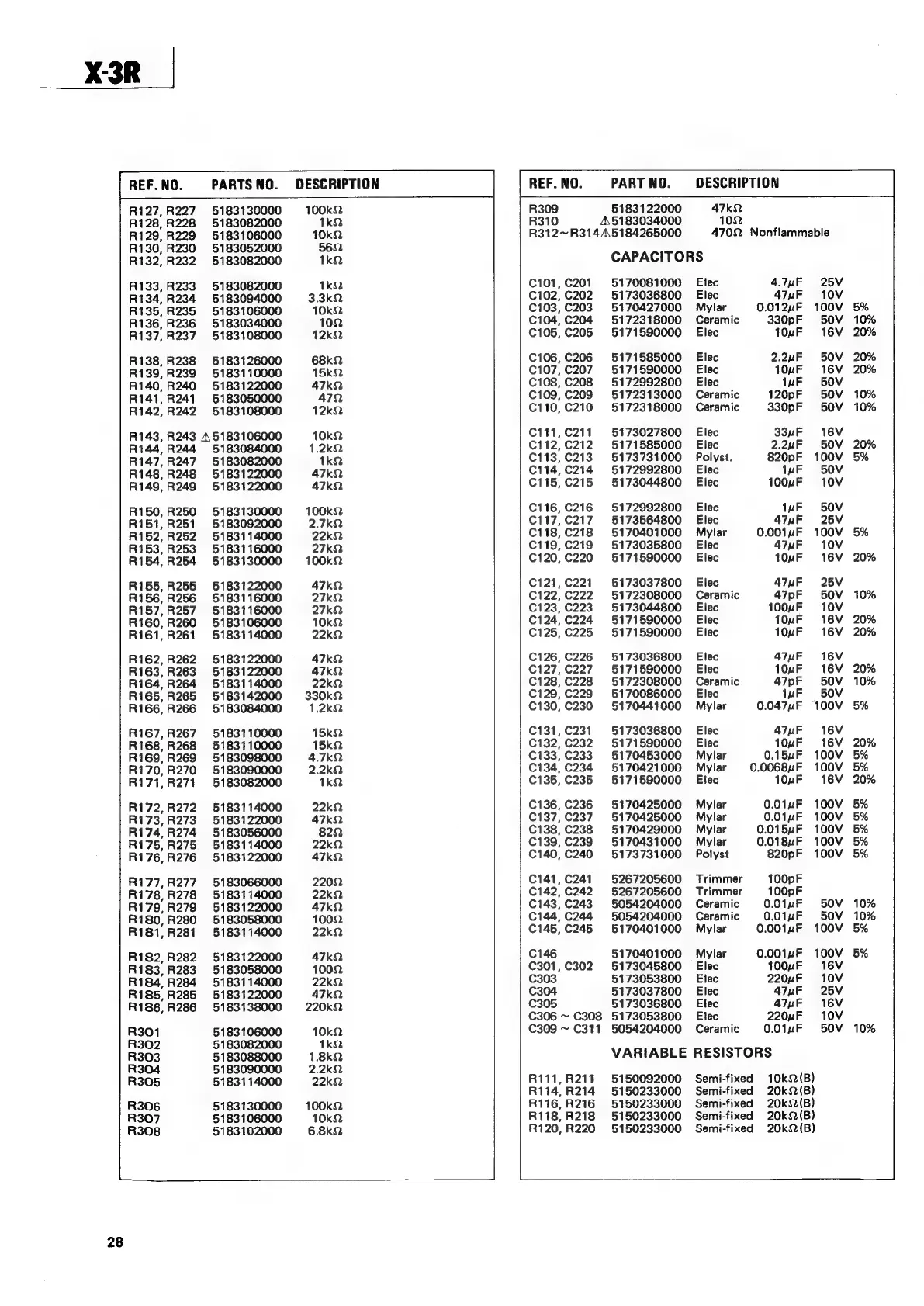

X:3R
REF. NO. PARTS NO. DESCRIPTION
R127,R227 5183130000 100k2
R128, R228 5183082000 1k2
R129, R229 5183106000 10kQ
R130, R230 5183052000 562
R132, R232 5183082000 1k2
R133,R233 5183082000 1kQ
R134, R234 5183094000 3.3kQ
R135, R235 5183106000 10kQ
R136, R236 5183034000 102
R137, R237 5183108000 12kQ
R138, R238 5183126000 68kQ
R139, R239 5183110000 16kQ
R140,R240 5183122000 47k2Q
R141, R241 5183050000 472
R142, R242 5183108000 12kQ
R143, R243 45183106000 10kQ
R144, R244 5183084000 1.2kQ
R147,R247 5183082000 1kQ
R148,R248 5183122000 47kQ
R149,R249 5183122000 47kQ
R150,R250 5183130000 100k2
R151,R251 5183092000 2.7kQ
R152,R252 5183114000 22k2
R153,R253 5183116000 27kQ
R154, R254 5183130000 100k2
R155,R255 5183122000 47kQ
R156, R256 5183116000 27k2.
R157,R257 5183116000 27k2
R160, R260 5183106000 10k2
R161, R261 5183114000 22k2
R162,R262 5183122000 47kQ
R163, R263 5183122000 47kQ
R164, R264 5183114000 22kQ
R165,R265 5183142000 330k2
R166, R266 5183084000 1,.2ka.
R167, R267 5183110000 15k2
R168,R268 5183110000 16kO.
R169, R269 5183098000 4.7kQ
R170,R270 5183090000 2.2kQ
R171,R271 5183082000 1k2Q
R172,R272 5183114000 22k2
R173,R273 5183122000 47kQ.
R174,R274 5183056000 822
R175,R275 5183114000 22k
R176,R276 5183122000 47kQ
R177,R277 5183066000 2202
R178,R278 5183114000 22k
R179,R279 5183122000 47kQ
R180,R280 5183058000 1002
R181,R281 5183114000 22k2
R182,R282 5183122000 47kQ
R183, R283 5183058000 1002
R184, R284 5183114000 22k
R185,R285 5183122000 47kQ
R186,R286 5183138000 220k2
R301 5183106000 10k2
R302 5183082000 1k2
R303 5183088000 1.8kQ
R304 5183090000 2.2k2
R305 5183114000 22kQ
R306 5183130000 100k2
R307 5183106000 10kQ
R308 5183102000 6.8k2
28
REF. NO. PARTNO. DESCRIPTION
R309 5183122000 47kQ.
R310 45183034000 102.
R312~R31445184265000 4702 Nonflammable
CAPACITORS
C101,C201 5170081000 Elec 4.7uF 25V
C102,C202 5173036800 Elec 474uF 10V
C103,C203 5170427000 Mylar 0.012uF 100V
C104, C204 5172318000 Ceramic 330pF 50V
C105,C205 5171590000 Elec 10uF 16V
C106,C206 5171585000 Elec 2.2uF 50V
C107,C207 5171590000 Elec 10uF 16V
C108, C208 5172992800 Elec 1uF 8 6S0V
C109,C209 5172313000 Ceramic 120pF S0V
C110,C210 5172318000 Ceramic 330pF 50V
C111,C211 5173027800 Elec 33uF 16V
C112,C212 5171585000 Elec 2.2uF SOV
C113, C213 5173731000 Polyst. 820pF 100V
C114,C214 5172992800 Elec 1uF 650V
C115,C215 5173044800 Elec 100uF 10V
C116,C216 5172992800 Elec 1uF 8 50V
C117,C217 5173564800 Elec 47uF = 25V
C118,C218 5170401000 Mylar 0.0014F 100V
C119,C219 5173035800 Elec 47uF 10V
C120,C220 5171590000 Elec 10uF 16V
€121,C221 5173037800 Elec 47uF 25V
C122,C222 5172308000 Ceramic 47pF 50V
C123, C223. 5173044800 Elec 100uF 10V
C124,C224 5171590000 Elec 10uF 16V
C125,C225 6171590000 Elec 10uF 16V
C126,C226 5173036800 Elec 47uF 16V
C127,C227 5171590000 _ Elec 10uF 16V
C128, C228 5172308000 Ceramic 47pF 50V
C129,C229 5170086000 Elec 1uF 8 650V
C130,C230 5170441000 Mylar 0.047uF 100V
C131,C231 5173036800 Elec 47uF 16V
C132,C232 5171590000 Elec 10uF 16V
C133, C233 5170453000 Mylar 0.15uF 100V
C134,C234 5170421000 Mylar 0.0068uF 100V
C135,C235 5171590000 Elec 10uF 16V
C136, C236 5170425000 Mylar 0.01nF 100V
C137, C237 5170425000 Mylar 0.01nF 100V
C138, C238 5170429000 Mylar 0.015uF 100V
C139,C239 5170431000 Mylar 0.018uF 100V
C140,C240 5173731000 Polyst 820pF 100V
C141, C241 5267205600 Trimmer 100pF
C142, C242 5267205600 Trimmer 100pF
C143, C243. 5054204000 Ceramic 0.01uF 50V
C144,C244 5054204000 Ceramic 0.01nF SOV
C145,C245 5170401000 Mylar 0.001uF 100V
C146 5170401000 Mylar 0.001uF 100V
C301,C302 5173045800 Elec 100uF 16V
C303 5173053800 Elec 220uF 10V
C304 5173037800 Elec 47uF 25V
C305 5173036800 Elec 47uF 16V
C306 ~ C308 5173053800 Elec 220uF 10V
C309 ~ C311 5054204000 Ceramic 0.01nF 50V
R111, R217
R114, R214
R116, R216
R118, R218
R120, R220
VARIABLE RESISTORS
5150092000
5150233000
5150233000
5150233000
5150233000
Semi-fixed
Semi-fixed
Semi-fixed
Semi-fixed
Semi-fixed
10k2.(B)
20k2.(B)
20k2.(B)
20k2.(B)
20k2.(B)
5%
20%
10%
20%
20%
20%
10%
5%
10%
10%
5%
5%
10%
