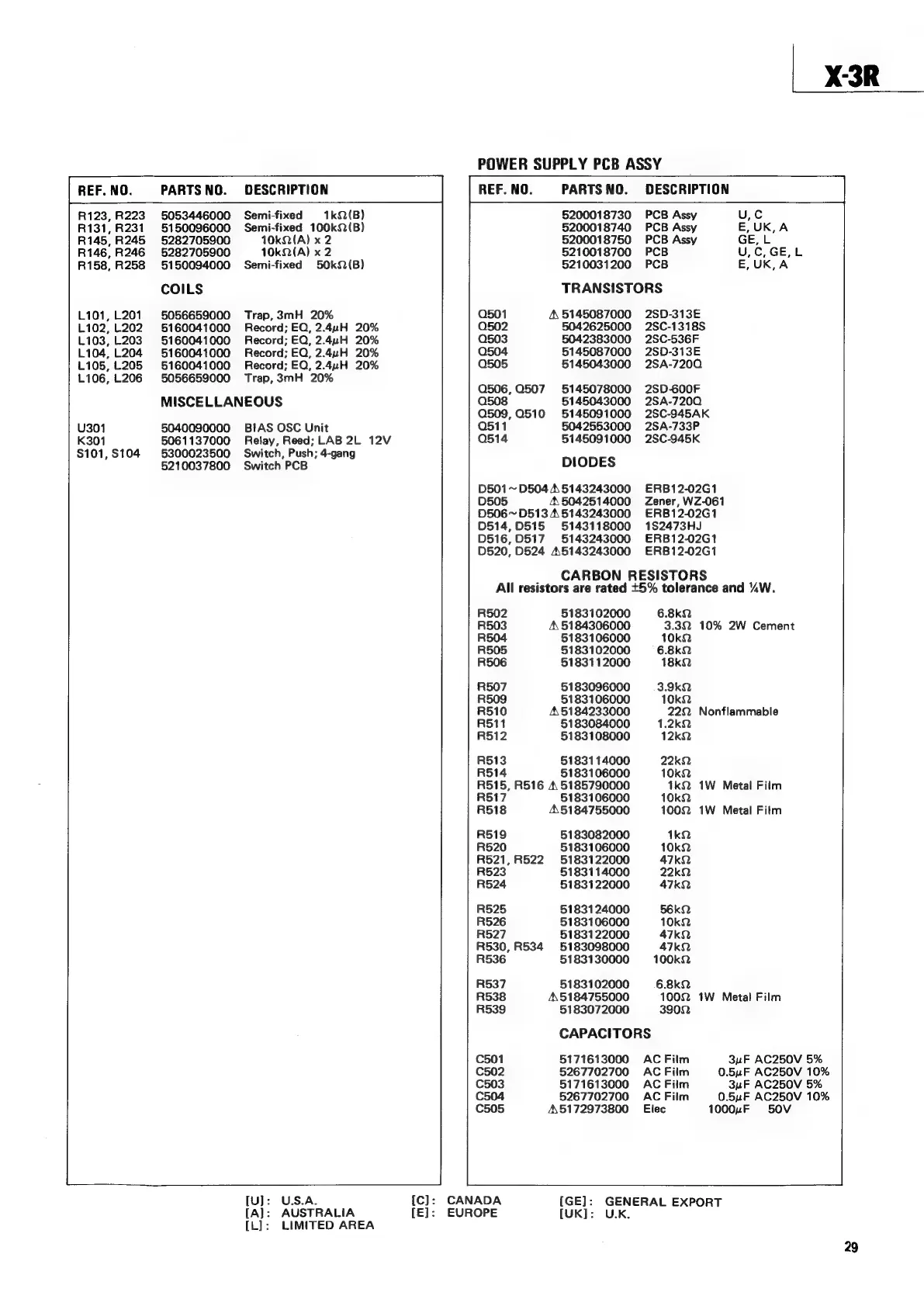

Teac X-3R - POWER SUPPLY PCB ASSY COMPONENTS; REVERSE PCB ASSY COMPONENTS

REF. NO.
R123, R223
R131, R231
R145, R245
R146, R246
R158, R258
L101, L201
L102, L202
L103, L203
L104, L204
L105, L205
L106, L206
U301
K301
$101, $104
PARTS NO.
5053446000
5150096000
5282705900
5282705900
5150094000
COILS
5056659000
5160041000
5160041000
5160041000
5160041000
5056659000
DESCRIPTION
Semi-fixed 1k2(B)
Semi-fixed 100k2(B)
10kQ(A) x 2
10kQ(A) x 2
Semi-fixed 50k2(B)
Trap, 3mH 20%
Record; EQ, 2.4uH 20%
Record; EQ, 2.4uH 20%
Record; EQ, 2.4uH 20%
Record; EQ, 2.44H 20%
Trap, 3mH 20%
MISCELLANEOUS
5040090000
5061137000
5300023500
5210037800
BIAS OSC Unit
Relay, Reed; LAB 2L 12V
Switch, Push; 4-gang
Switch PCB
POWER SUPPLY PCB ASSY
PARTSNO. DESCRIPTION |
5200018730 PCB Assy U,C
5200018740 PCB Assy E,UK,A
5200018750 PCB Assy GE,L
5210018700 PCB U,C,GE,L
5210031200 PCB E,UK,A
TRANSISTORS
Q501 A 5145087000 2SD-313E
Q502 5042625000 2SC-1318S
Q503 5042383000 2SC-536F
Q504 5145087000 2SD-313E
Q505 5145043000 2SA-7200
Q506, Q507 5145078000 2SD-600F
a508 5145043000 2SA-7200
Q509,0510 5145091000 2SC-945AK
Q511 5042553000 2SA-733P
Q514 5145091000 2SC-945K
DIODES
D501 ~ D504 4 5143243000 ERB12-02G1
D505 45042514000 Zener, WZ-061
D506~ D513 45143243000 ERB12-02G1
0514,D515 5143118000 1S2473HJ
D516,0517 5143243000 ERB12-02G1
D520, D524 A5143243000 ERB12-02G1
CARBON RESISTORS
All resistors are rated +5% tolerance and “%W.
R502 5183102000 6.8k
R503 A.5184306000 3.32: 10% 2W Cement
R504 5183106000 = 10k
R505 5183102000 6.8k.
R506 5183112000 18k
R507 5183096000 _3.9k2
R509 5183106000 = 10k
R510 45184233000 222 Nonflammable
R511 5183084000 1.2k2
R512 5183108000 12k
R513 5183114000 =. 22k.
R514 5183106000 = 10k
R515, R516 45185790000 1k 1W Metal Film
R517 5183106000 = 10k
R518 45184755000 100 _1W Metal Film
R519 5183082000 1ka
R520 5183106000 10k
R521, R522 5183122000 = 47k
R523 5183114000 =. 22k
R524 5183122000 47k
R525 5183124000 56k
R526 5183106000 = 10k.
R527 5183122000 = 47k.
R530, R534 5183098000 47k2
R536 5183130000 — 100k2
R537 5183102000 = 6.8k2
R538 A5184755000 = 100 1W Metal Film
R539 5183072000 3902
CAPACITORS
5171613000 AC Film 3uF AC250V 5%
5267702700 ACFilm 0.5uF AC250V 10%
5171613000 AC Film 3uF AC250V 5%
5267702700 ACFilm — 0.5uF AC250V 10%
45172973800 Elec 1000uF 50V
[U]: U.S.A. {C]: CANADA [GE]: GENERAL EXPORT
[A]: AUSTRALIA [El]: EUROPE [UK]: U.K.
[L]: LIMITED AREA
