Adjusting stick range
The range of motion of the elevator and throttle can be adjusted (on the standard model, the range screws

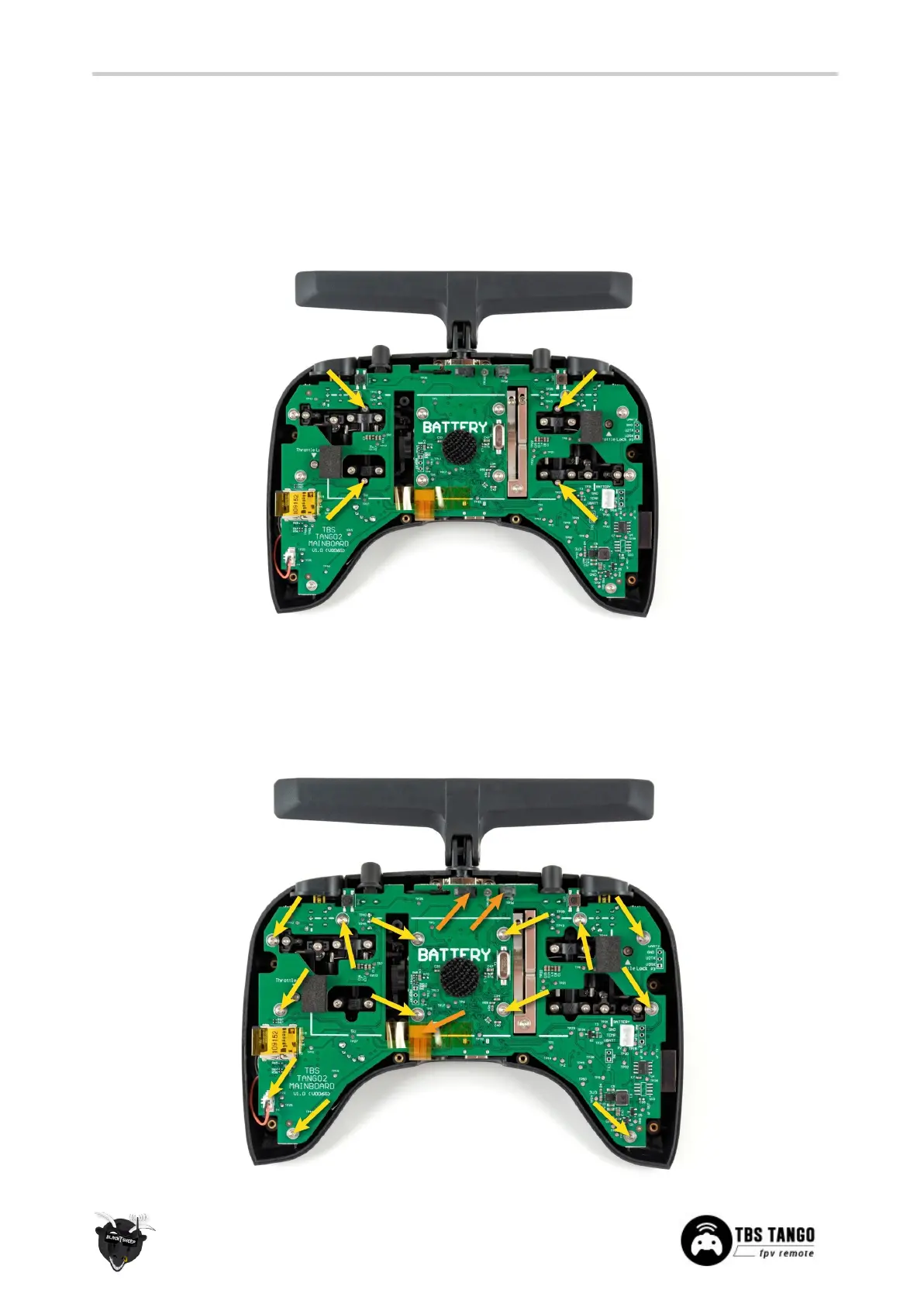

need to be purchased separately.) The default is no limit. Adjust the screws shown in the following photo.
Clockwise to increase the limit. There are 2x M1.4x6 machine thread screws included with every Tango 2
PRO. Recalibration is required after adjustment!
Upgrading / changing the gimbals
Remove the twelve (12) screws holding the mainboard to the housing and gimbals, disconnect the speaker
cable battery, display flex-cable. It is also recommended to disconnect the antenna antenna rubber-strap
and the u.FL connector to the antenna. Extra care is required if not disconnected!
