8
Revised 08/04
-- Z21.58b/CGA1.6b-2002
GAS, REGULATOR SUPPLY PRESSURE OPERATING PRESSURE MAIN BURNER BURNER OUTPUT
AND BASE TYPE (IN. WC (kPa), MAX/MIN) (IN. WC (kPa)) ORIFICE SIZE (DMS / DIA.) (BTU/HR. (W)/EA.)
Natural 14.0 (3.4)/5.0 (1.2) 4.0 (1.0) 46 (0.0810”) 18,500 (5,422)
model RV-47L (NG)
stationary or post
LP 14.0 (3.4)/12.0 (3.0) 11.0 (2.7) 55 (0.0520”) 18,500 (5,422)
model RV-47L (LP)
stationary or post
LP 125 psi (861), max 11.0 (2.7) 55 (0.0520”) 18,500 (5,422)
model 150 w/hose
pedestal
DESIGN TO PROTECT THE CYLINDER VALVE FROM
DAMAGE. DO NOT USE OR TRY TO REPAIR A
DAMAGED LP GAS CYLINDER AT ANY TIME. CONTACT
YOUR LOCAL LP GAS SUPPLIER FOR REPLACEMENT.
ALSO, YOU SHOULD ALWAYS OBSERVE THE
FOLLOWING PRECAUTIONS:
■ Store any spare or extra gas cylinders at least 15 feet
from this grill or other open flame, heat-producing
appliance or heat source.
■ Do not fill your gas cylinder beyond
3
/
4
full.
■ Gas cylinders come with a pressure relief valve. If a
cylinder is subjected to excess heat, the relief valve
will open and let highly flammable gas vapor and/or
liquid escape. Therefore, do not store gas cylinders
near an open flame or source of heat. Store cylinders
only in well ventilated areas. Failure to follow these
precautions could result in a fire causing death or
serious injury or property damage.
Installing Your LP Gas Cylinder
WARNING: THE GAS SUPPLY HOSE SHOULD BE
INSPECTED PRIOR TO USE. DO NOT USE A
REGULATOR WITH AN ATTACHED HOSE THAT HAS AN
ABRASION OR EXCESSIVE WEAR ON THE HOSE.
NOTICE: FOR YOUR SAFETY, ONLY USE THE
REGULATOR AND HOSE ASSEMBLY PROVIDED AS
ORIGINAL EQUIPMENT WITH YOUR GRILL.
NOTICE: A FIRE EXTINGUISHER FOR CLASS A, B, C &
D FIRES SHOULD BE READILY AVAILABLE AT ALL
TIMES.
Be sure to set the gas cylinder upright so the Cylinder Valve
is at the top. This will ensure proper vapor withdrawal.
WARNING: KEEP THE VENTILATION OPENINGS OF
THE CYLINDER ENCLOSURE FREE AND CLEAR OF
DEBRIS.
Procedure (See Figures 7 and 8):
1. In order to make sure the Cylinder Valve is fully
closed, turn the Handwheel clockwise until it stops.
2. Turn all burner and pilot controls OFF.
3. Move your grill to an open area that’s level.
4. Inspect the Coupling Nut, Nipple and Cylinder
Valve. Look for any damage to threads, dirt or
debris. Remove dirt or debris. Replace damaged
parts prior to use.
Gas Connection
continued
Table A.2. Gas Supply Specifications (revised)

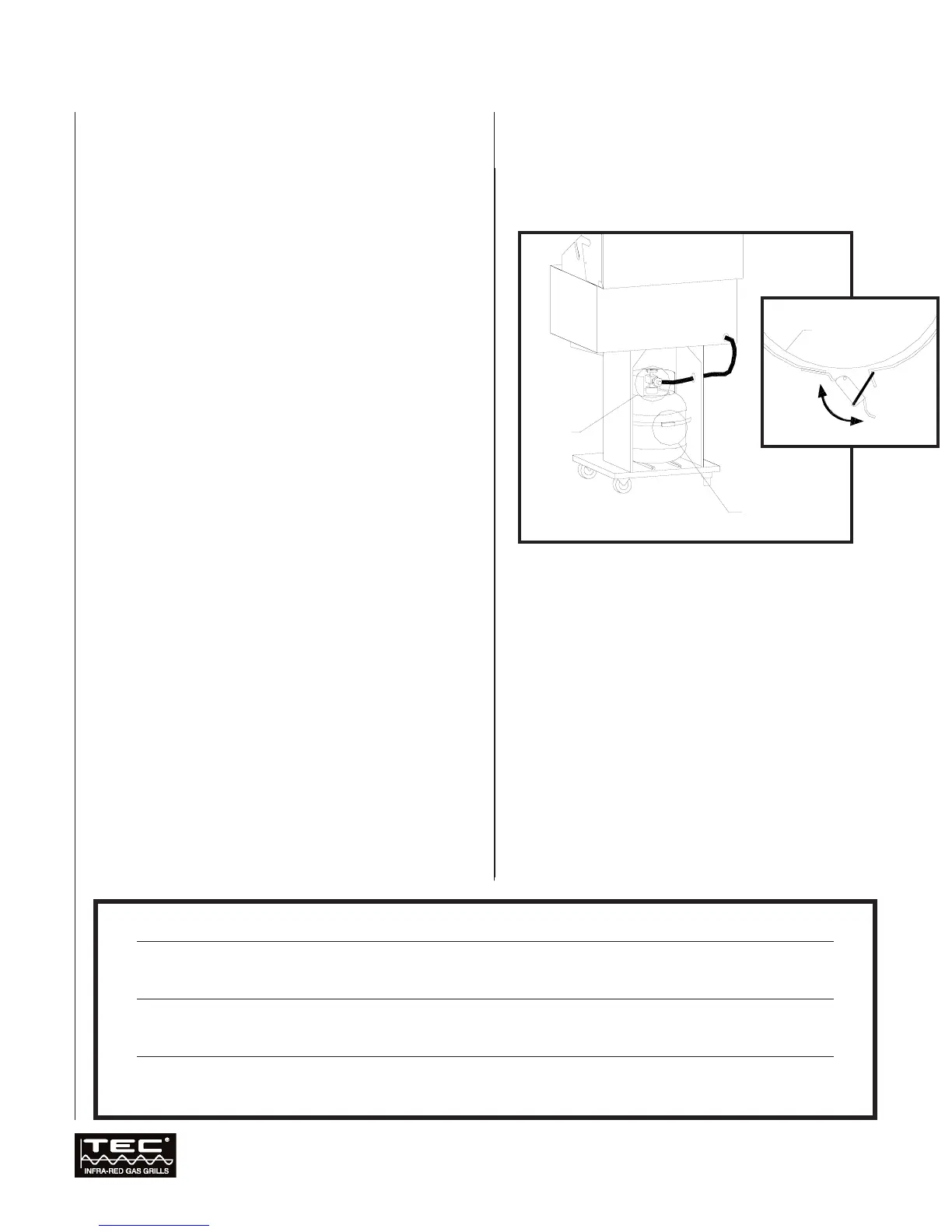

Figure 7. Gas Tank Placement
Figure 8
Insert Figure
Propane tank
Close
Release
