7
Cooking Grids and Warming Rack
1. Remove the Cooking Grids and Warming Rack
from the packaging materials.
2. Set the Cooking Grids in place with the open side of
the channels facing up and the holes toward the rear
of the grill. Set the Warming Rack in place inside the
Roll Back Hood.
General Overview
WARNING: WHEN PURCHASED FOR USE WITH LP
GAS, THE PATIO GRILL COMES WITH A REGULATOR
ASSEMBLY THAT USES A MARSHALL BRASS GAS
COUPLING DEVICE. THIS QUICK-CONNECT TYPE
DEVICE SHOULD ONLY BE USED WITH A SHERWOOD
TANK VALVE, PART #PV-3349.
WARNING: THE GAS SUPPLY HOSE SHOULD BE
INSPECTED PRIOR TO EACH USE. DO NOT USE A GAS
HOSE THAT HAS ABRASION, CUTS OR EXCESSIVE
WEAR. IF ABRASION, CUTS OR EXCESSIVE WEAR IS
EVIDENT, THE GAS SUPPLY HOSE MUST BE REPLACED
BEFORE USE. REPLACEMENT ASSEMBLY MUST BE
SPECIFIED BY TEC.
WARNING: WHEN YOUR GRILL IS STORED
INDOORS, REMOVE AND STORE THE LP GAS
CYLINDER OUTDOORS IN A PROTECTED, COOL AND
DRY LOCATION OUT OF REACH OF CHILDREN. THE
CYLINDER SHOULD NOT BE STORED IN A BUILDING,
GARAGE OR ANY OTHER ENCLOSED AREA.
Follow the procedures outlined in this section closely to
ensure safe and proper grill operation. The Patio II™ grill
is offered in one of two gas configurations: LP or Natural
gas. The pressure regulator and hose used for the LP gas
configuration varies depending on the type of base used.
Reference Table A.2 on page 8 for regulator specification.
Grills that do not use LP gas with standard 20 lb. LP
cylinder must be installed by qualified personnel. This
includes all Natural gas and permanently installed units.
Gas regulators specified by TEC should be used at all
times. For gas supply specifications refer to Table A.2 or
see rating plate located on the back of the grill housing.
LP Gas Cylinder Safety
NOTICE: AN LP GAS CYLINDER IS NOT PROVIDED
FROM THE FACTORY WITH THIS GRILL. HOWEVER,
ONLY APPROVED 20 LB. LP GAS CYLINDERS
CONSTRUCTED AND MARKED IN ACCORDANCE WITH
THE
SPECIFICATIONS FOR LP GAS CYLINDERS
OF
THE U.S. DEPARTMENT OF TRANSPORTATION (D.O.T)
OR NATIONAL STANDARD OF CANADA, CAN/CGA-B339,
CYLINDERS, SPHERES AND TUBES FOR THE
TRANSPORTATION OF DANGEROUS GOODS
;
AND
COMMISSION
, SHOULD BE USED. ALL APPROVED
CYLINDERS MUST HAVE AN INTEGRAL COLLAR
Assembly continued Gas Connection
1/4”-20
CARRIAGE BOLT
W/ FLAT
WASHER AND
NUT (TYP. 4
PLACES)
DRIP TRAY

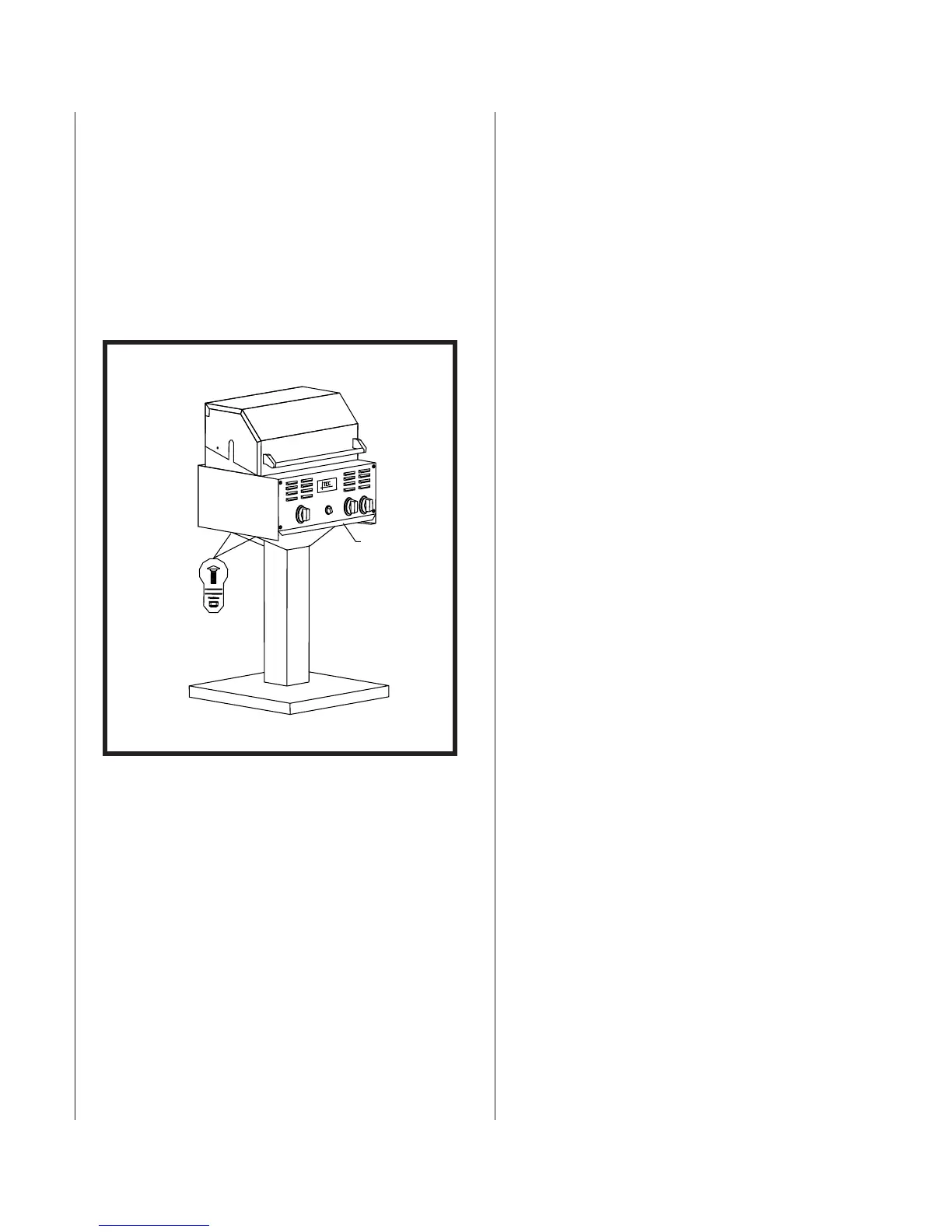

Figure 5. Bolt-down Post Base
To Next Page
