16
Revised 08/04
-- Z21.58b/CGA1.6b-2002
Care, Cleaning and Maintenance
continued
testing for gas leaks around all fittings as described in
Gas Leak Test on page 9, you should be able to
resume normal use of your grill.
Cleaning
CAUTION: ALWAYS ALLOW THE GRILL TO COOL
BEFORE CLEANING. DO NOT LET WATER COME IN
CONTACT WITH THE BURNER SURFACE AT ANY TIME.
Drip Tray
Remove soiled foil and rinse with soap and water.
Re-cover the Drip Tray with foil.
Heat Shield
Remove soiled foil and re-cover. If necessary, the Heat Shield
may be removed for further cleaning.
Cooking Grids
Leave the Cooking Grids in place for 5-10 minutes while the
burner is on HIGH with the hood OPEN. The Cooking Grids
may also be removed and cleaned with a brass or stainless steel
bristle brush and soapy solution. Standard oven cleaners may be
used for further cleaning. Rinse the Cooking Grids thoroughly
with clean water before using.
Maintenance
The Patio II™ requires very little maintenance. However, a
periodic inspection of orifice openings and venturi inlets to
clear obstructions to gas flow is recommended.
Burner Head
To maintain the performance of the Infra-Red burner it is
important to operate the grill on HIGH for at least 5
minutes after each use.
This procedure will leave some ash on the surface of the
Burner Head. If it accumulates in excessive amounts, it will
clog the small ports in the ceramic surface. To prevent this
blockage, remove the Cooking Grid and the Burner Screen,
and vacuum the burner surface with a low-suction vacuum
cleaner every six months, or as necessary. When completing
this procedure be careful not to scrape or strike the ceramic
with the suction device, which may damage the ceramic.
Replacement Parts
If you need replacement parts or accessories, contact your
TEC authorized dealer. See Appendix C of this manual for a
listing of replacement parts and accessories.
Heat Shield Removal Procedures
Tools Required
■
5
/
16
” hex-head nut driver or wrench
■ #2 Phillips-head screwdriver
Follow the steps below to remove the Heat Shield.
(See Figure 15.)
1. Remove the (4) four Phillips-head screws from the front
panel of the grill.
2. Remove the front panel.
3. Remove (2) two hex-head screws from the work shelf.
4. Remove the work shelf.
5. Remove (4) four hex-head screws from the grill hood
assembly.
6. Remove the grill hood assembly.
7. Lift the Heat Shield out of the grill housing.
DRIP TRAY
FRONT PANEL
2 HEX. HEAD SCREWS
(ACCESSIBLE AFTER
REMOVING FRONT PANEL)
4 PHILLIPS
HEAD SCREWS
WORK SHELF
4 HEX-HEAD SCREWS
HOOD ASSEMBLY
HEAT
SHIELD

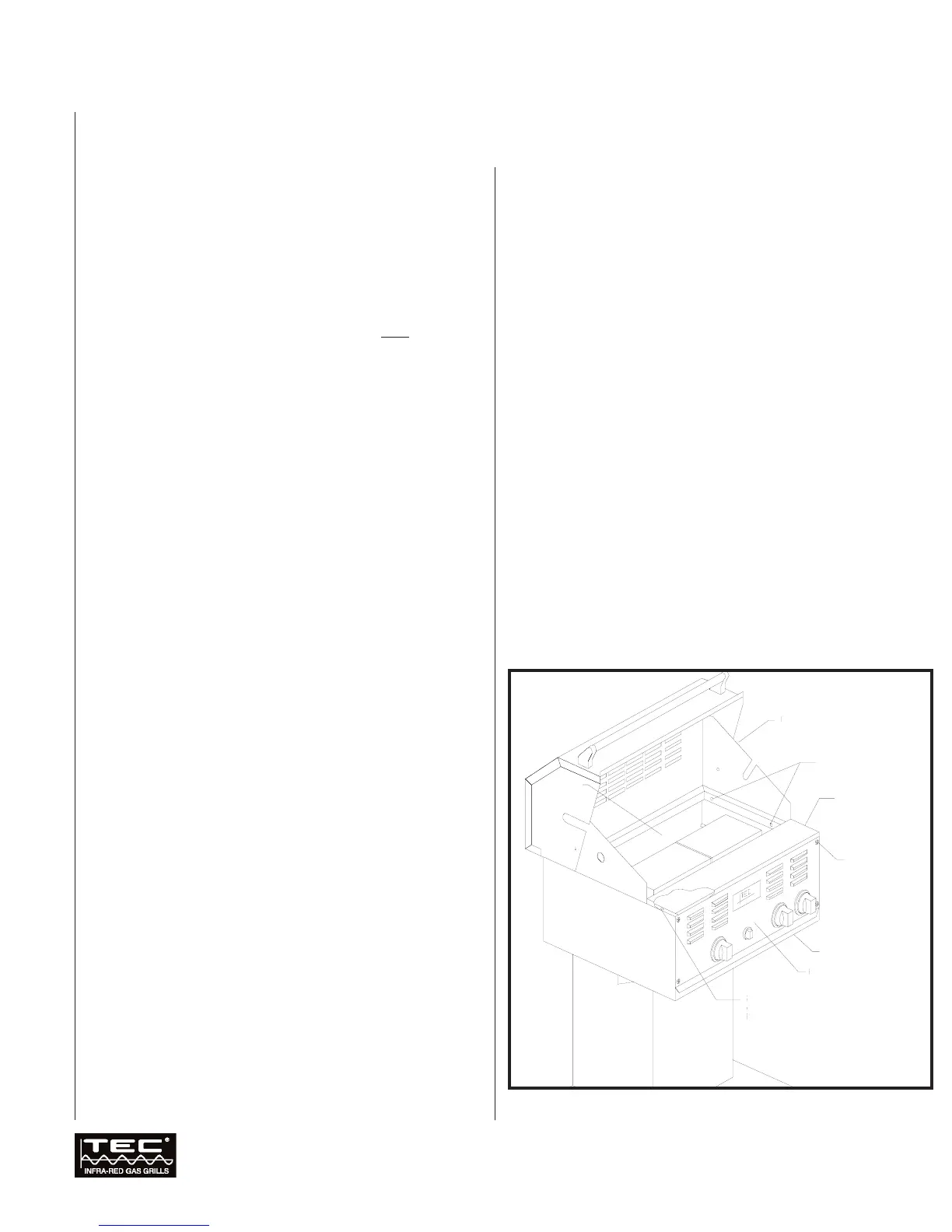

Figure 15. Heat Shield Removal
