TEC Patio II User Manual

6
Revised 08/04 -- Z21.58b/CGA1.6b-2002
Pedestal Base
Assemble the Pedestal Base and mount the Grill Housing
as follows. The required hardware is tied to the top
back corner of the Pedestal Base in a plastic bag.
1. Remove the Pedestal Base from the packaging
materials and set it on a level surface.
2. Remove the Gusset from the tank storage cavity and
unpackage it. Place Gusset across front top of
Pedestal Base with top flange facing away from the
front of the Pedestal Base. Align the (6) holes and
insert (6) 1/4”-20 Carriage bolts through the holes
with the threads pointed into the tank storage cavity.
Fasten the bolts with a flat washer followed by a lock
washer, followed by a 1/4” nut.
3. Remove the Drip Tray from the Grill Housing. Place
the Grill Housing on the Pedestal Base and align the
square holes in the Housing with the round holes in
the Base.
4. Fasten the Housing to the Base with the supplied
hardware. Make sure the carriage bolt threads are
on the outside of the grill. (Hardware needed: Six
(6)
1
/
4 ”-20 x
1
/
2 ”L carriage bolts, twelve (12)
1
/
4 ” flat
washers, six (6)
1
/ 4 ” lock washers and four (6)
1
/ 4 ”-20
nuts.)
5. Replace the Drip Tray after tightening the fasteners.
(See Figure 3.)
In-Ground Post Base & Bolt-Down Base
1. Install the In-ground or Bolt-down Post Base in
accordance with the instructions accompanying the
Post Base. (See Figures 4 & 5.)
2. Remove the Drip Tray from the Grill Housing. Place
the Grill Housing on the properly installed Post Base
and align the round mounting holes in the Base with
the square mounting holes in the Housing.
3. Fasten the Housing to the Base with the supplied hard-
ware. (Hardware needed: Four (4)
1
/ 4
” - 20 x
1
/ 2
”L carriage
bolts, eight (8)
1
/
4 ” flat washers, four (4)
1
/
4 ” lock washers
and four (4)
1
/ 4 ”-20 nuts.) (See Figure 4 or Figure 5.)
4. Replace the Drip Tray after tightening the fasteners.
Assembly
continued
17 1/2”
2 1/2”
DRIP TRAY
DRIP TRAY
1/4”-20 CARRIAGE
BOLT W/ FLAT
WASHER AND
NUT (TYP. 6
PLACES)

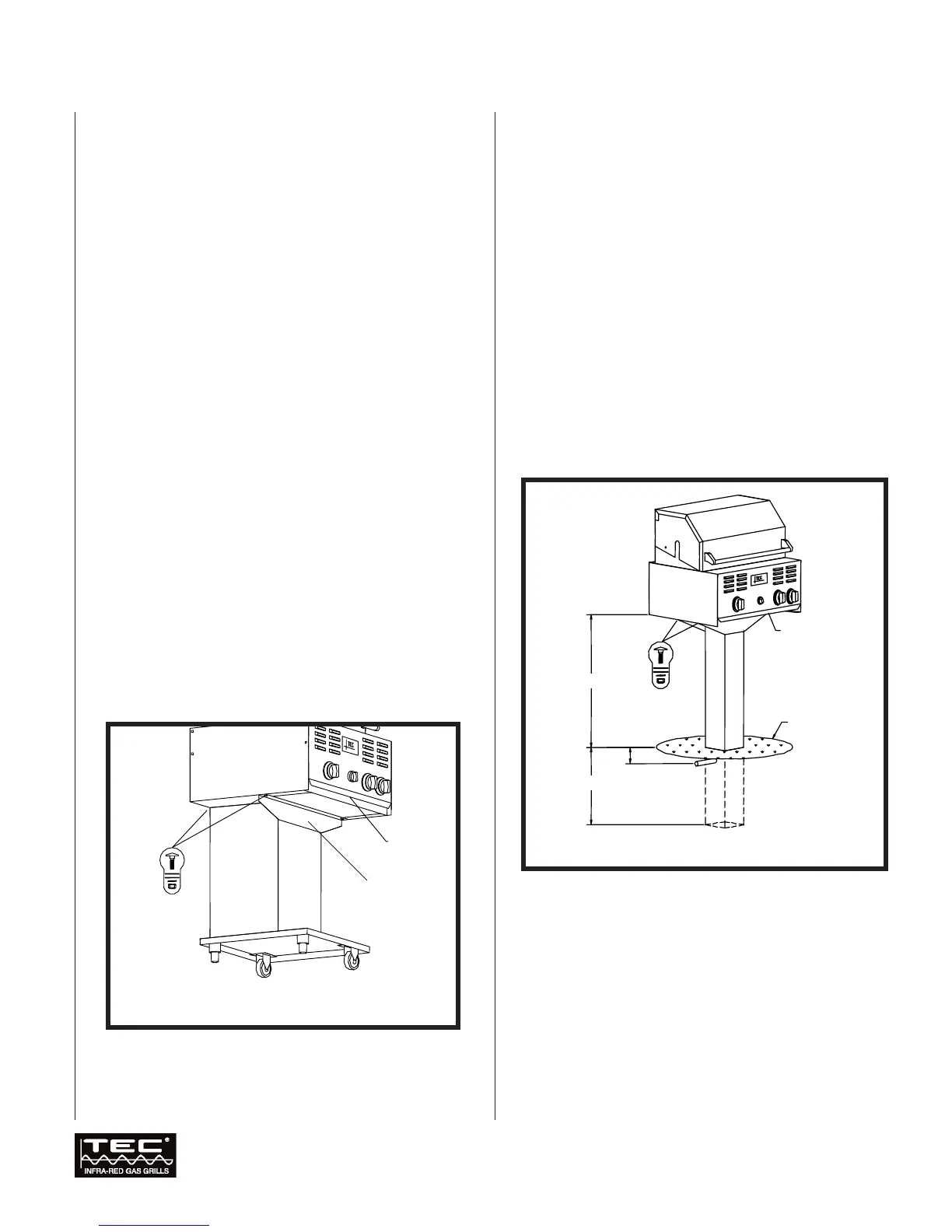

Figure 4. In-ground Post Base
DRIP TRAY
1/4”-20 CARRIAGE
BOLT W/ FLAT
WASHER AND NUT
(TYP. 4 PLACES)
GROUND
17-1/2”
2-1/2”
26-1/2”
GUSSETT
Figure 3. Pedestal Base
