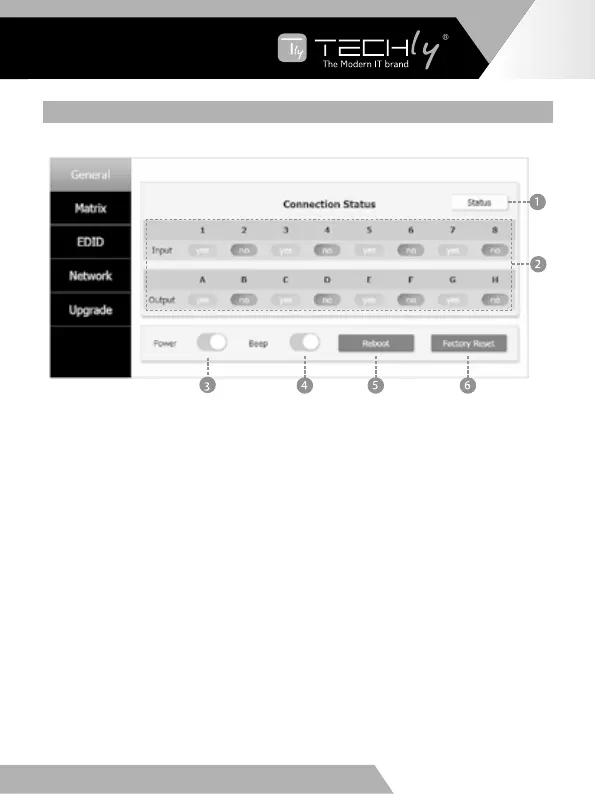

THE WEB GUI LIKES BELOW:
General page
➀ Click this button to check current the Matrix connection status.
➁ Display currently the Matrix input and output port status. The “yes” have
connected input or output source and “no” represent not connection.
➂ Powerswitch.TheMatrixwillworkwhenopenthisswitch.Otherwise,theMatrix
willstandby.
➃ Beepswitch.Openthisswitch,presstheMatrixon-panelbuttonwillhavevoice.
Closethisswitch,itwillmute.
➄ Clickthisbuttonwillrebootdevice.
➅ Clickthisbuttonwillsetittofactoryreset.
