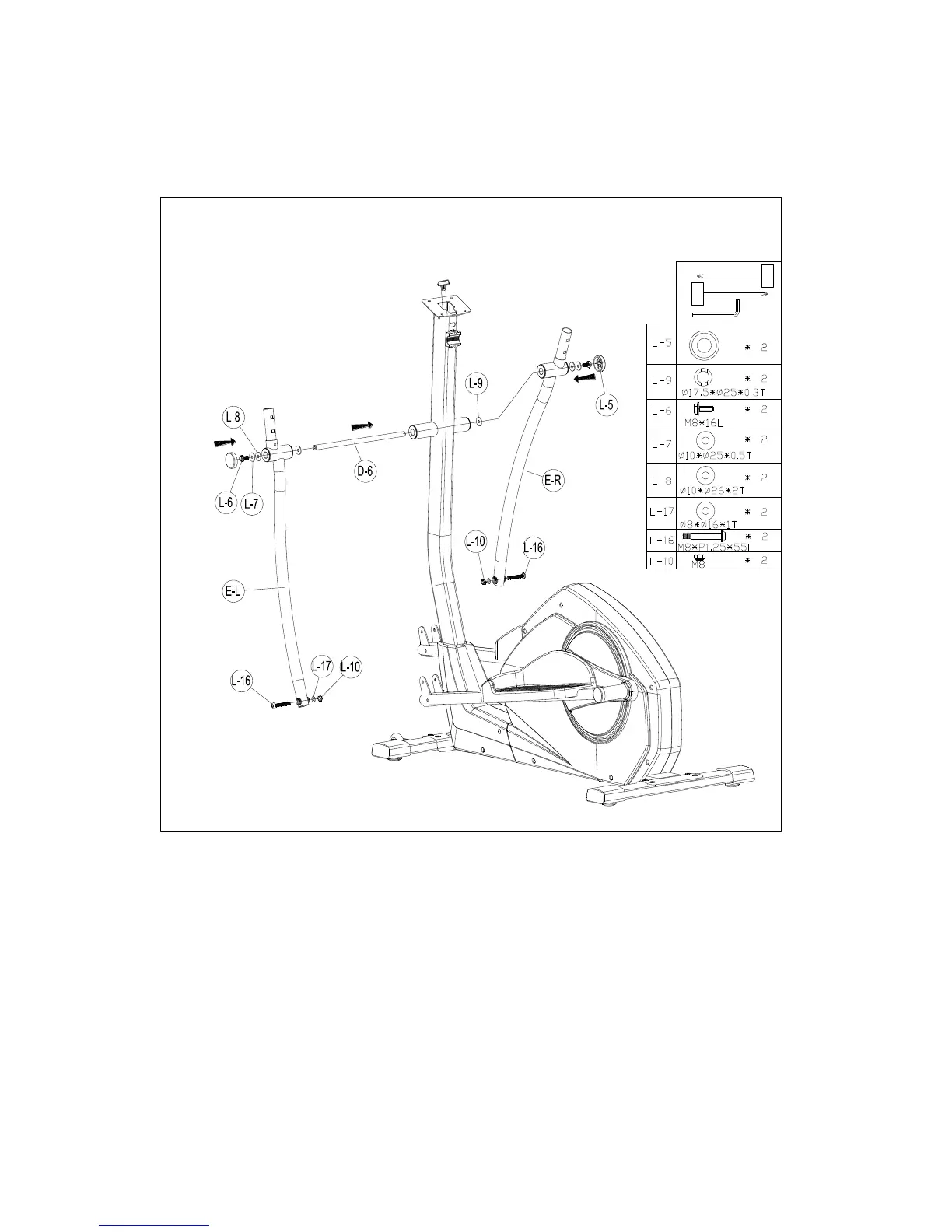

1. Disassemble one side of the pre-assembled screw (L-6) on axle; insert the axle into the whole
movable handlebars and handlebar post. Then tighten the end using one plastic washer (L-7), flat
washer (L-8), wave washer (L-9) and screw (L-6) in each side.
2. Tight the screw (L-16) with flat washer (L-17) and nylon nut (L-10) to connect the pedal arm and
lower swing arm in each side.
