ASSEMBLY STAGE # 6:

6

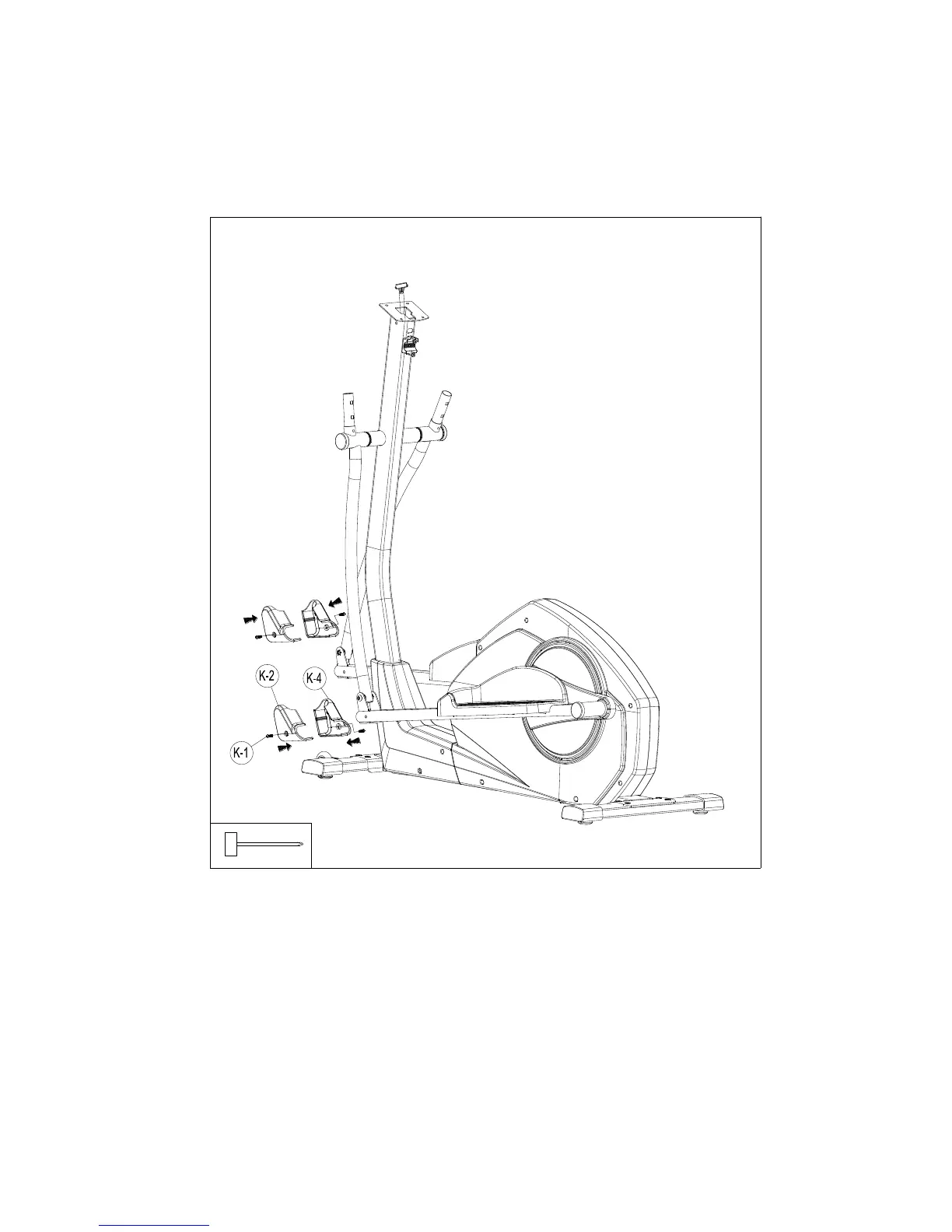

1. Assemble the front cover for the pedal arm (K-2, K-4) by screw (K-1) in each side.
