Techness SE800 - Assembly Stage 3: Pedal Attachment; Mount Pedals to Pedal Arms

ASSEMBLY STAGE # 3:
3

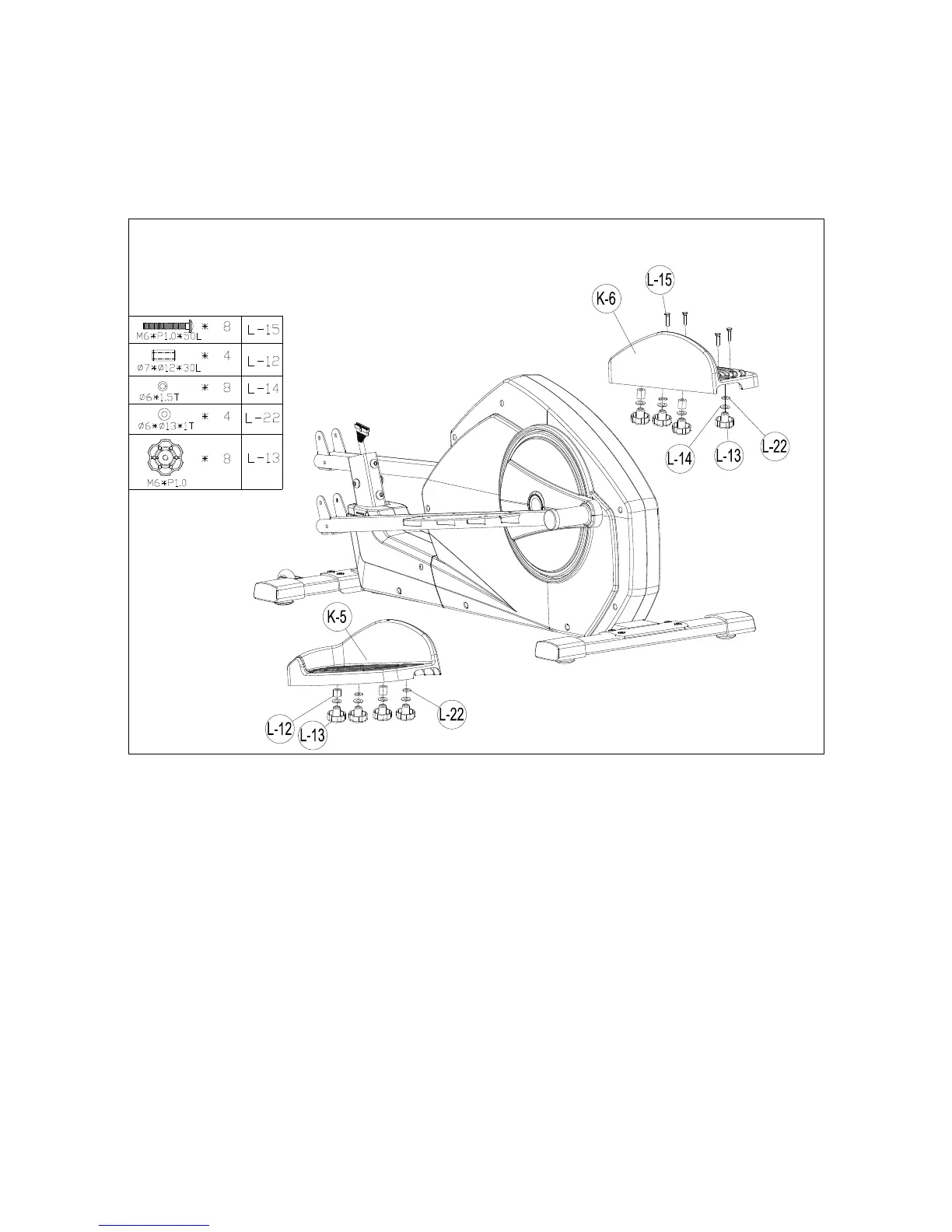

1. Put pedal (K-5, K-6) onto the pedal arm and tighten it, using 4 knobs (L-13), flat washers
(L-22), spring washer (L-14), sleeve (L-12) and bolts (L-15) in each side.
Please note that the left and right pedals need to be placed in identical positions.
