Techness SE800 - Assembly Stage 1: Stabilizer Attachment; Fasten Front and Rear Stabilizers

ASSEMBLY STAGE # 1:
1

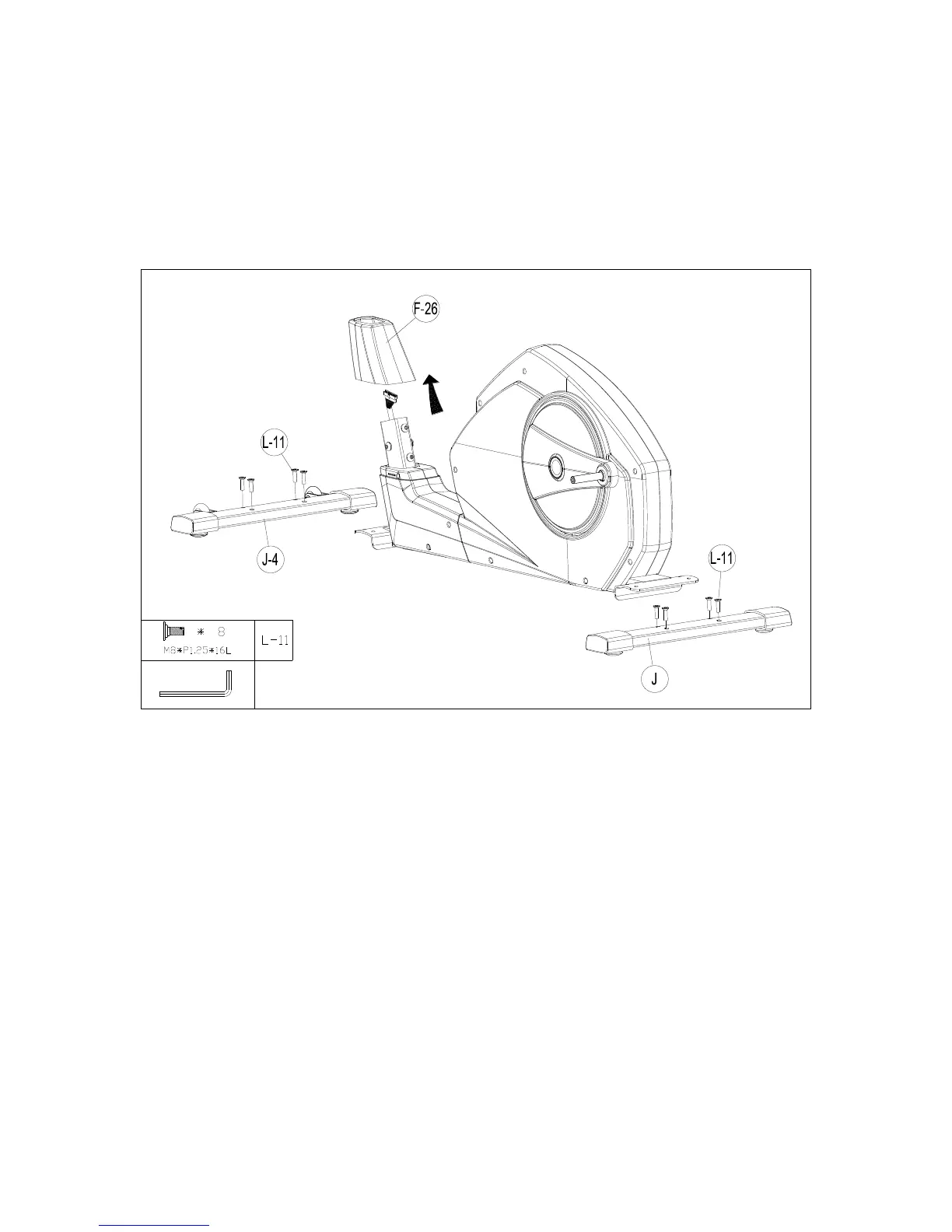

1. Fasten front and rear stabilizers to the main frame using 2 carriage bolts (L-11).
After assembly, the Trainer can be adjusted to slightly uneven ground by adjusting the height of
the foot caps at the front and back. The pre-assembled transportation wheels in the front allow
easy moving of the Elliptical and therefore during assembly, need to be pointing down at the front
(45°).
