3.4 Configuring the PSU
The DBC-1200 has the following power supply options:
1. Local powering is possible on RF port 3 (bypass port) using a power inserter
2. Remote powering, maximum AC power passing = 10
See page 27 for removal/installation of PSU unit.
Powering routing
Fusing (power directors)
Referring to the network design documentation, remove any fuses not required for passing power.

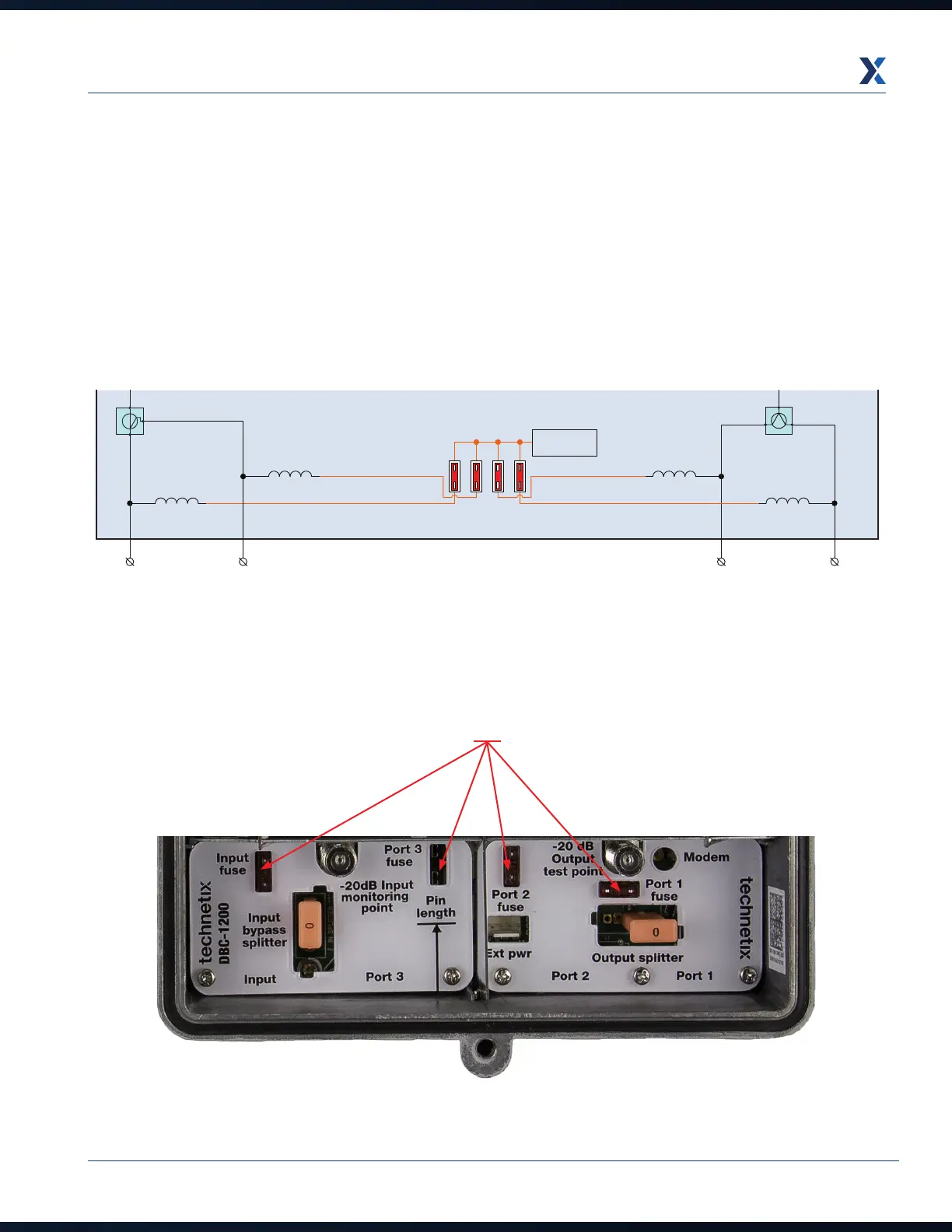

(Figure 4)
SPS unit
Local Power
input port
Output port 1Output port 2
(available with plug-in splitter)
Input
by-pass port
Control module
Auto fuses
-20 dB
testpoint
-20 dB
testpoint
DBUS-C1 upstream
DBDS-B-x-xx downstream
