21 Technetix Group Limited Rev.1._0.1_0217
3.8 Upstream activation
Two person method

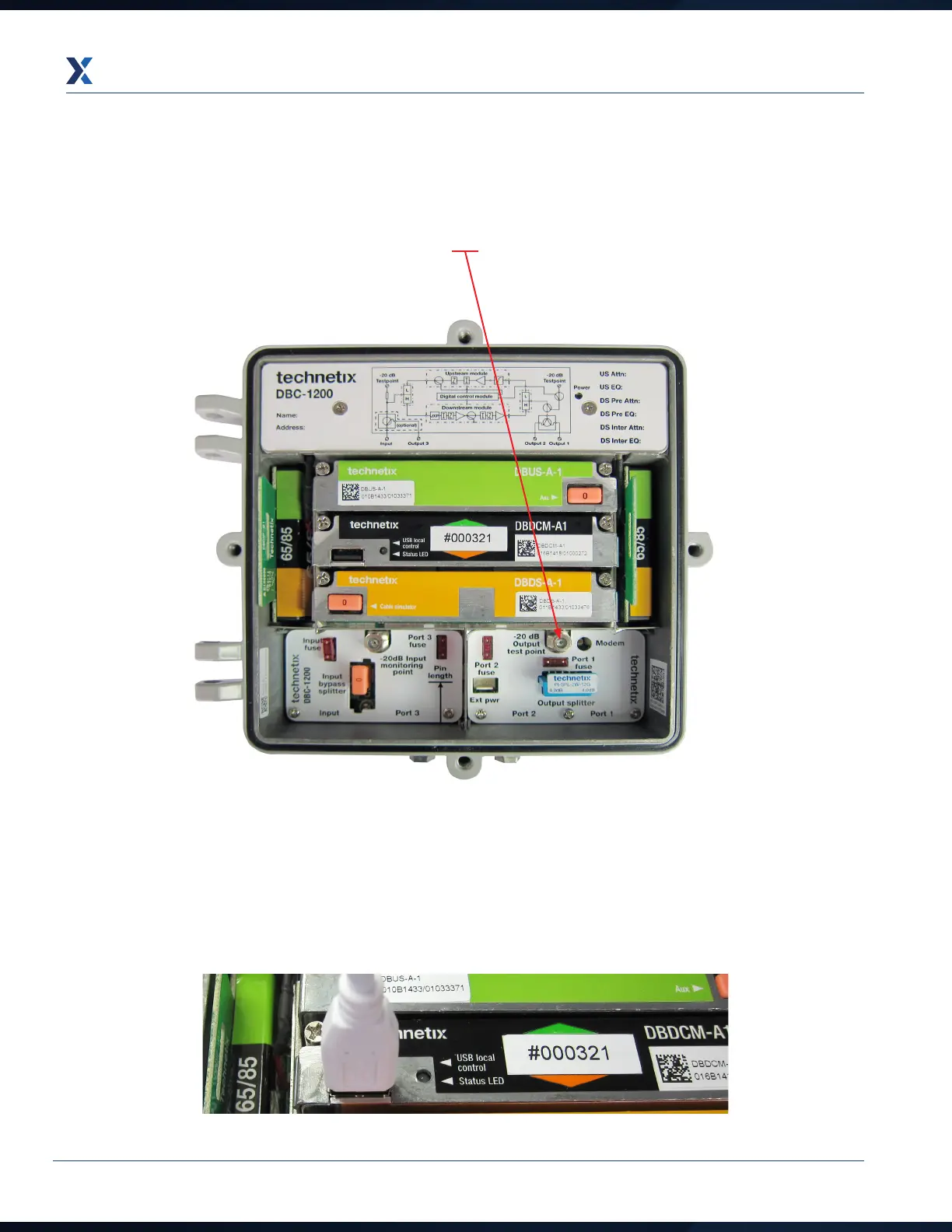

1. Connect a return path signal generator or a return path sweep system analyser to the -20 dB output test point.
2. Set the output level of the signal generator/return path sweep system to the network return path/upstream
alignment level and add +20 dB for the -20 dB test point, so that the correct level is injected into the amplifier.
Use a signal generator with 2 x CW carriers at 16 and 64 MHz at a 40 dBmV output level.
3. Connect a laptop (with the BLL software installed) to the amplifier DBDCM module using a standard USB cable.
Start the BLL software on the laptop.
