22Technetix Group LimitedRev.1._0.1_0217

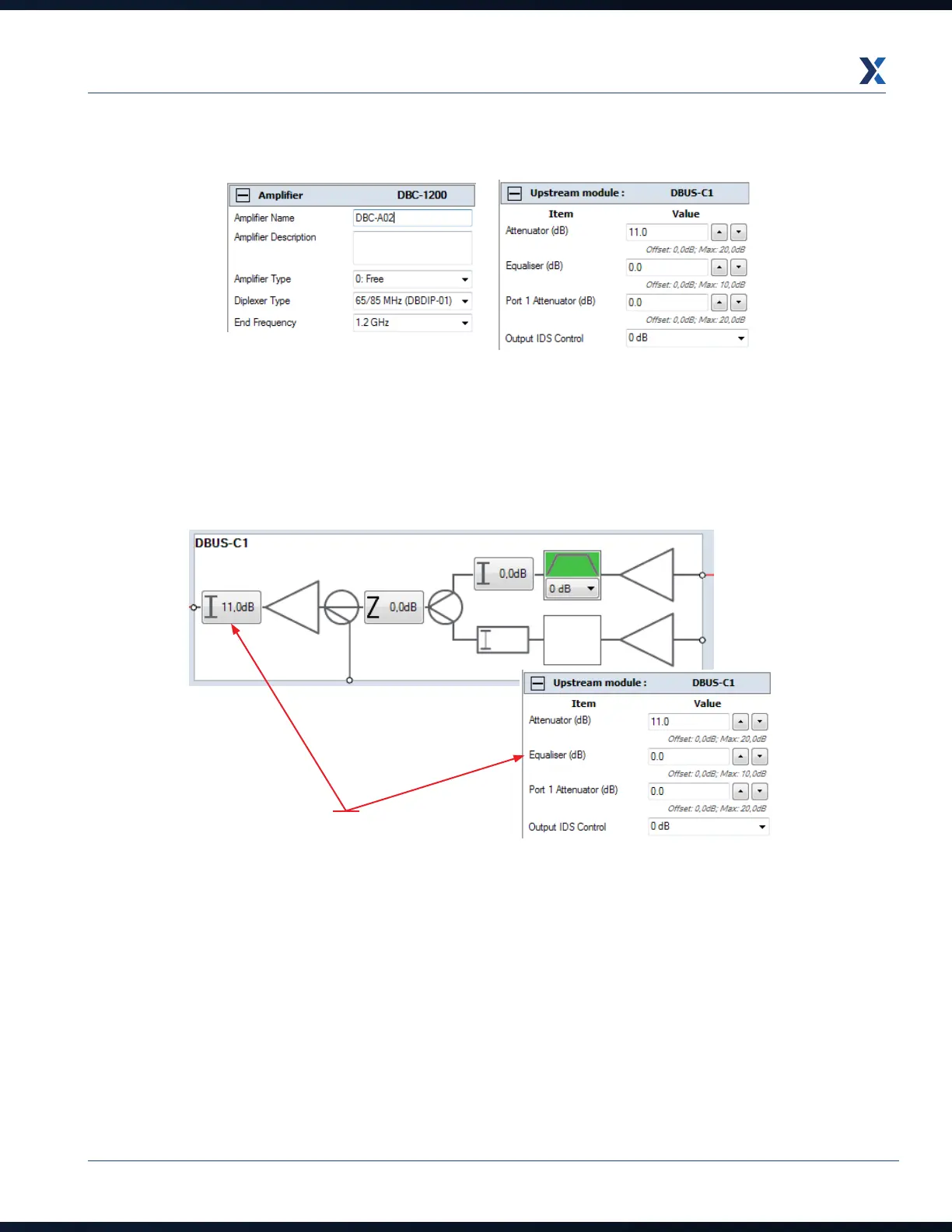

4. Set the correct Diplexer Type and set Output IDS Control to 0 dB.
5. Using two-way communication, contact the technician at the next amplifier/node on the upstream. Their RF
spectrum analyser test meter should be connected to the test point where the return path signals can be seen
from a signal generator. Advise the technician at the amplifier being setup to adjust the upstream tilt so that the 2
x CW signals are at the same level.
Equaliser (dB)
