25 Technetix Group Limited Rev.1._0.1_0217
Chapter 4: Maintenance

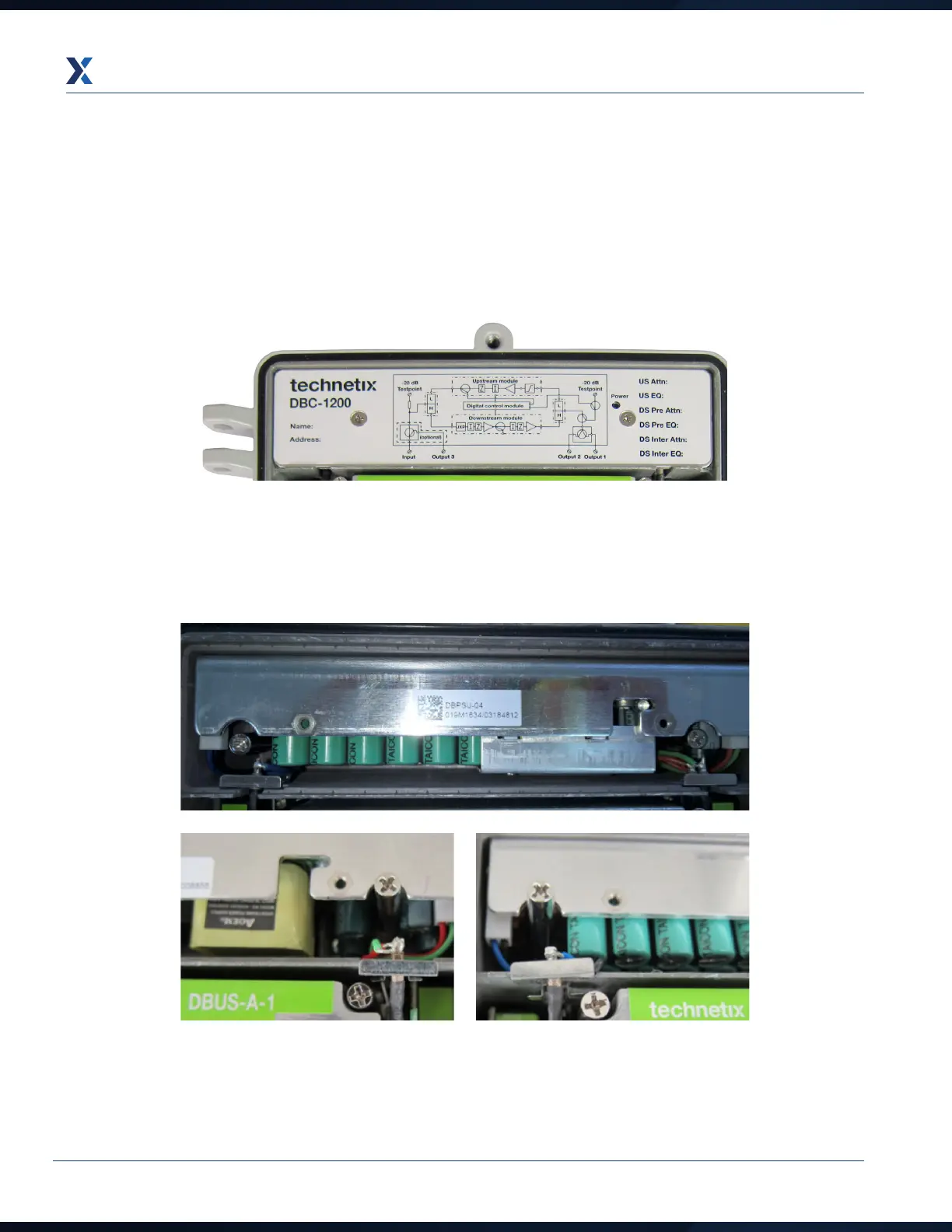

4.1 PSU replacement
Note: ensure line power is disconnected before starting PSU replacement.
1. Remove the 2 x PSU cover plate crosshead screws, then the PSU cover plate
2. Unscrew both PSU holding screws. Remove the PSU by lifting it carefully and sliding the grounding pass-
through PSU leads’ clips out of their slots.
