technetix DBC-1200 - Rear Mounting to Cabinet

7 Technetix Group Limited Rev.1._0.1_0217

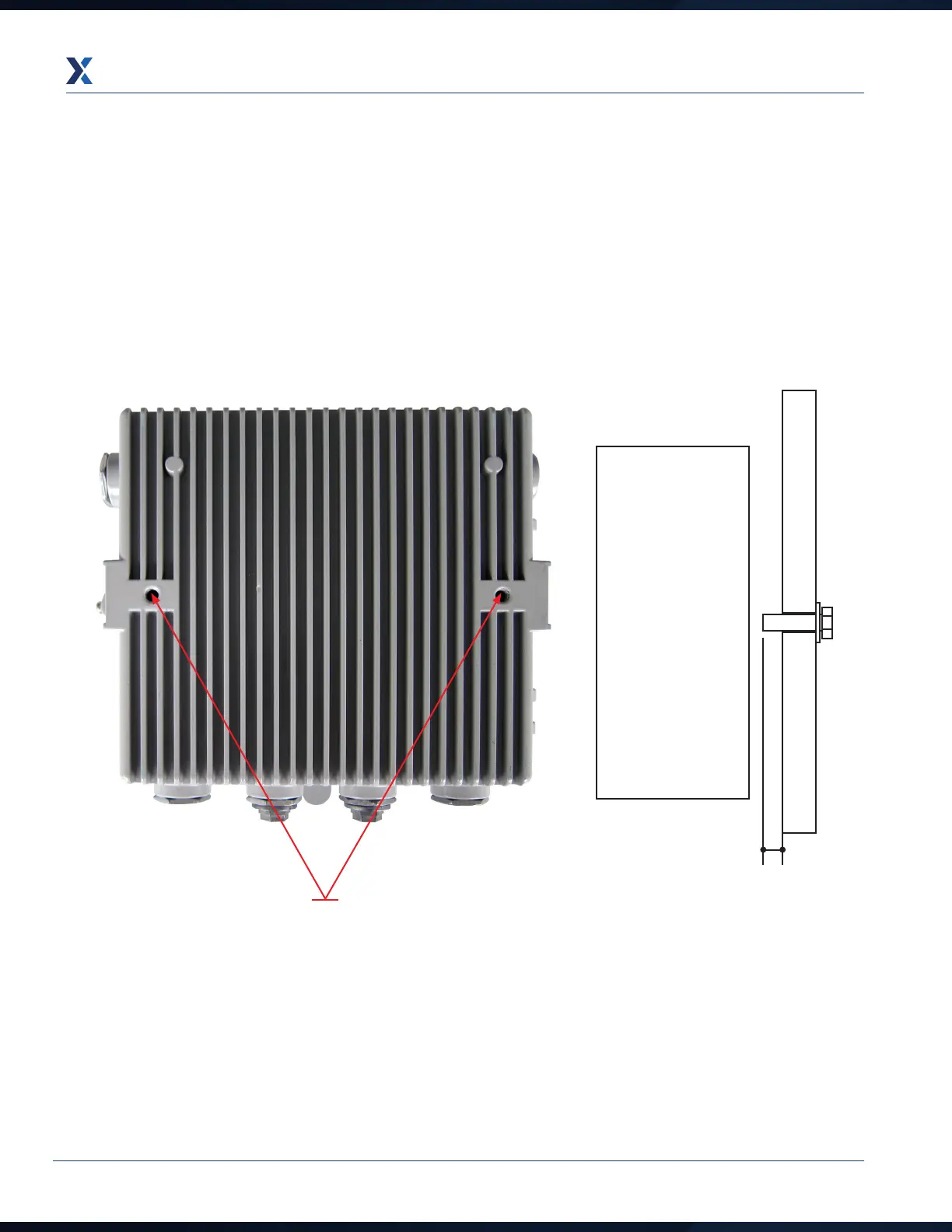

3.1.2 Rear mounting direct to cabinet back panel
For mounting directly onto a cabinet back panel, use the rear 6mm bolt holes with 2 x 6mm threaded bolts (figure 1). Do
not use fixings that are longer than 6mm, otherwise they may protrude through the back board. The bolt total length
dimension to be used is 6mm + back board thickness dimension + washer thickness dimension.
DBC-1200
housing
6.0mm MAX
Housing 6mm threaded bolt holes @140mm centres
(Figure 1)
