Technica Engineering 100/1000BASE-T1 MEDIACONVERTER MATEnet User Manual

100/1000BASE-T1 MediaConverter MATEnetUser Manual
10
2 HARDWARE INTERFACES
2.1 Connectors
Here you can see an overview of all HW interfaces of the 100/1000BASE-T1
MediaConverter on the front side and backside.

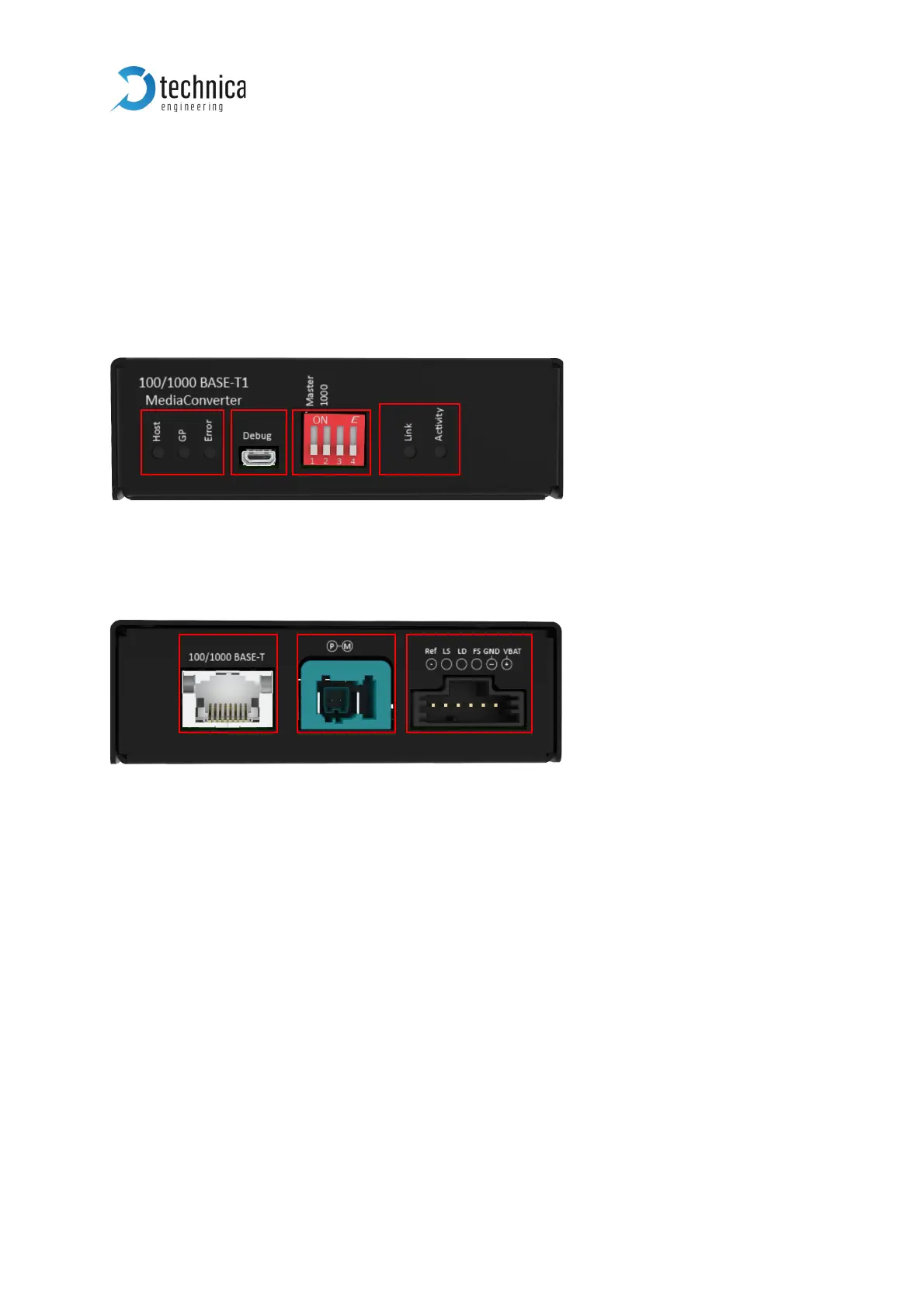

Figure 2-1: Front side of MediaConverter
Figure 2-2: Backside of MediaConverter
2.1.1 RJ-45 Connector (1)
This is a standard RJ-45 connector to be used with CAT5e STP cable for 100BASE-TX
or 1000BASE-T connections.
1
2
3
6
4
5
6
