4 STANDARD USE CASE
Here you can see a standard use case of the 100/1000BASE-T1 MediaConverter:

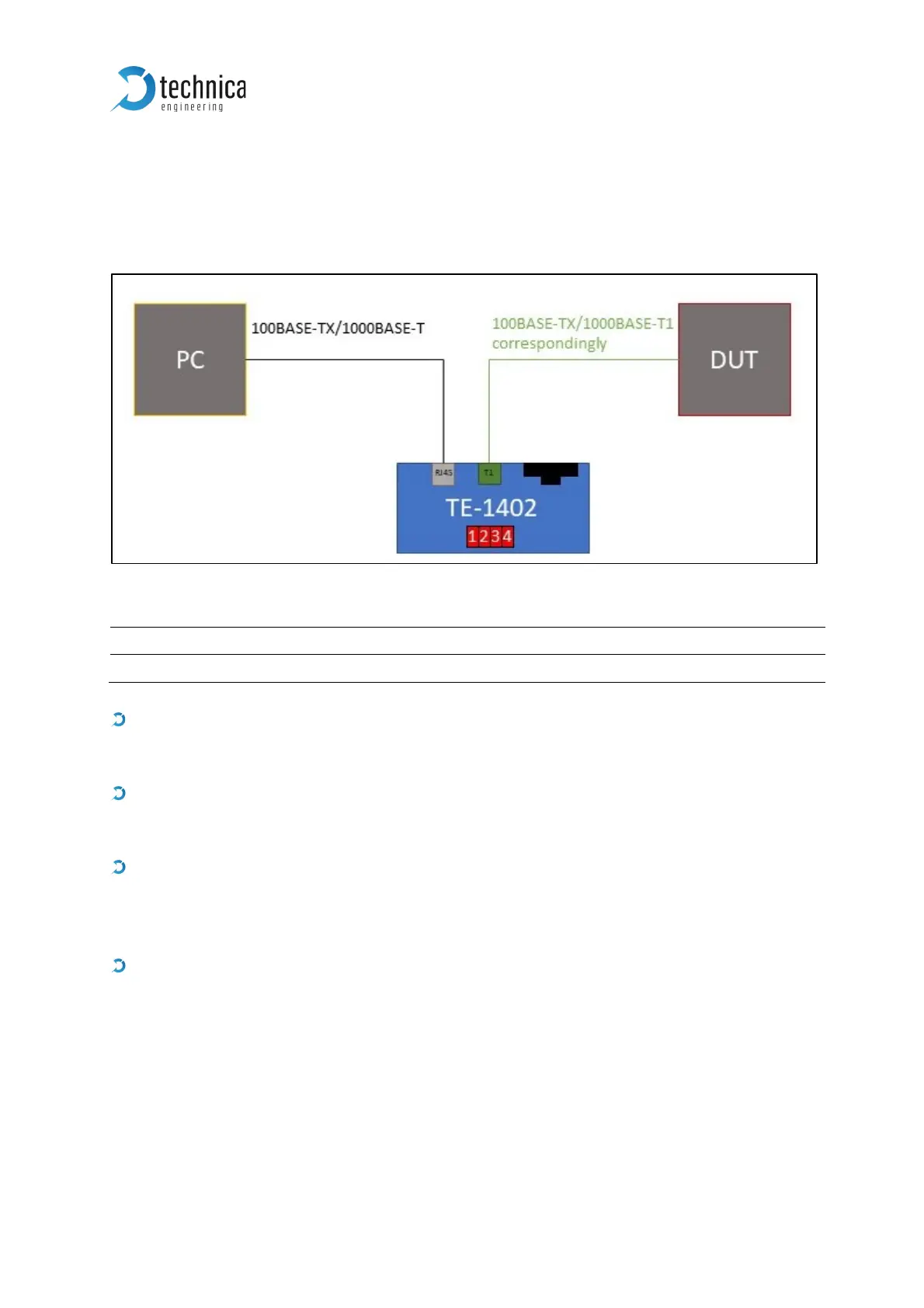

Figure 4-1: Example of a use case
MC
M
edia
C
onverter
DUT
D
evice
U
nder
T
est
DIP Switch 1: Master/Slave setting, is dependent on the DUT. If DUT is Master, MC
must be configured as Slave, DIP Switch 1 must be OFF [down], and vice versa
DIP Switch 2: 100/1000 speed setting is dependent on the speed of the DUT. If it is
a 100BASE-T1 connection DIP Switch 2 must be OFF [down] and vice versa
DIP Switch 3: Legacy/IEEE mode setting: If the PHY of the DUT is a Marvell PHY A0
(Only 1000BASE-T1) then the DIP Switch 3 must be OFF [down]. If it is any other
IEEE 1000BASE-T1 conform PHY the DIP Switch must be ON [up]
DIP Switch 4: Frame Generator function, always must be OFF [down]. Only in Frame
Generator-Mode, the DIP Switch must be ON [up], in this case, the device no longer
works as a converter
