100/1000BASE-T1 MediaConverter MATEnetUser Manual
12

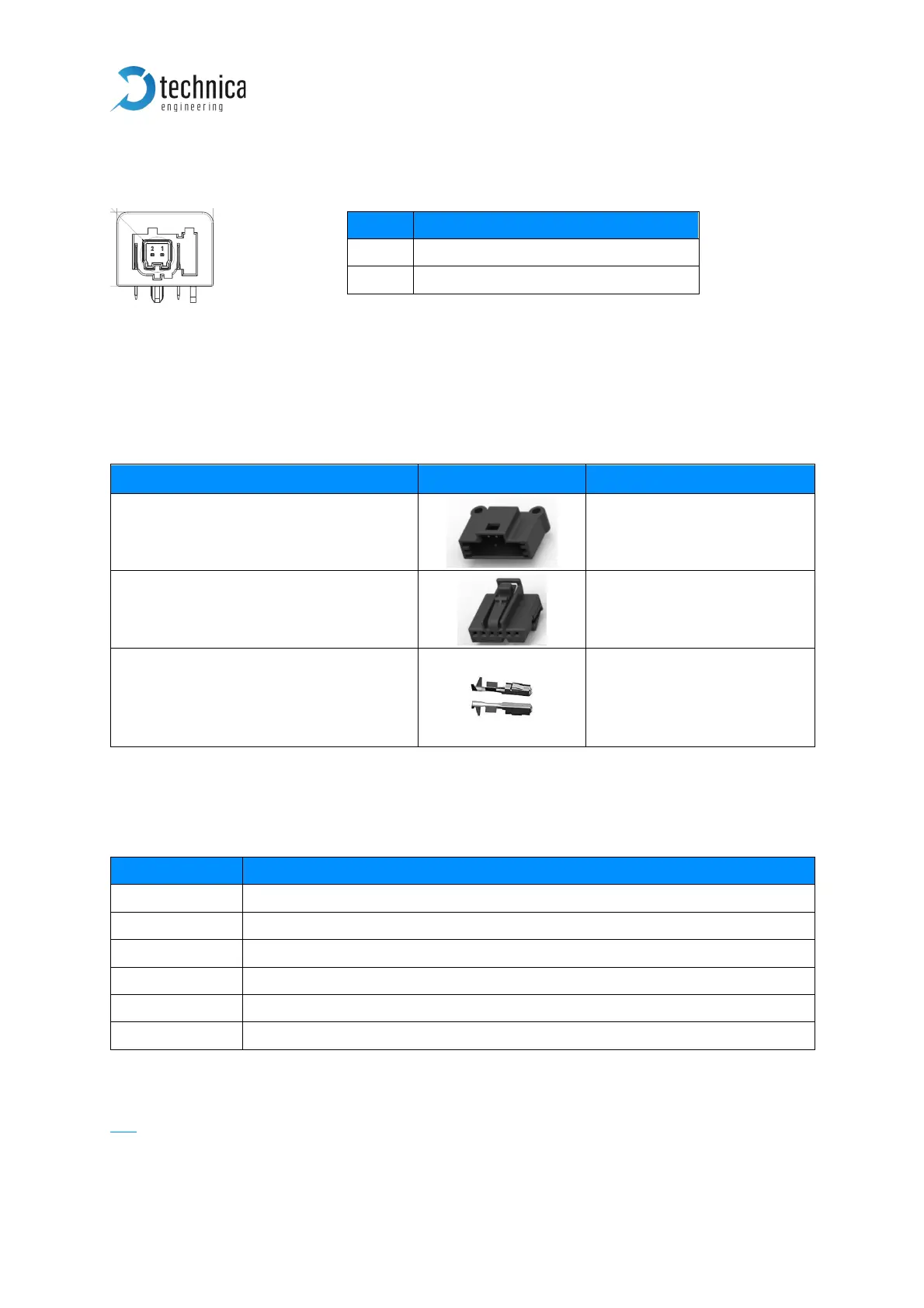

Pinning:
Pin
Function
1
Data Line Minus (Negative)
2
Data Line Plus (Positive)
Table 2-2: MATEnet Connector
2.1.3 Power MQS Connector (3)
Name
Part Number
TE connectivity
6pos MQS .63 header 90deg THR
1-1418888-5
TE connectivity
MQS BU-GEH 6P
1-969508-2
Distributor: mouser.de
TE connectivity
MQS crimp contact
928999-1
Distributors:
Mouser.de; Digikey.de
Table 2-3: Parts of Tyco MQS Connector
Pinning:
Pin
Function
1
Reference GND only
2
Link Status Output (3V3, Active High) (LS)
3
Force LinkDown Input (Active Low) (LD)
4
ForceSlave Mode (Active Low) (FS)
5
Power GND
6
VBAT (6 to 30 Volt DC)
Table 2-4: MQS Connector
For more information about PINs 2, 3, and 4 connected to PIN 1, please see CHAPTER
3.2.
Figure
2-3: MATEnet
Connector
