Technics QUARTZ SA-GX100 User Manual

Ref. No.
12

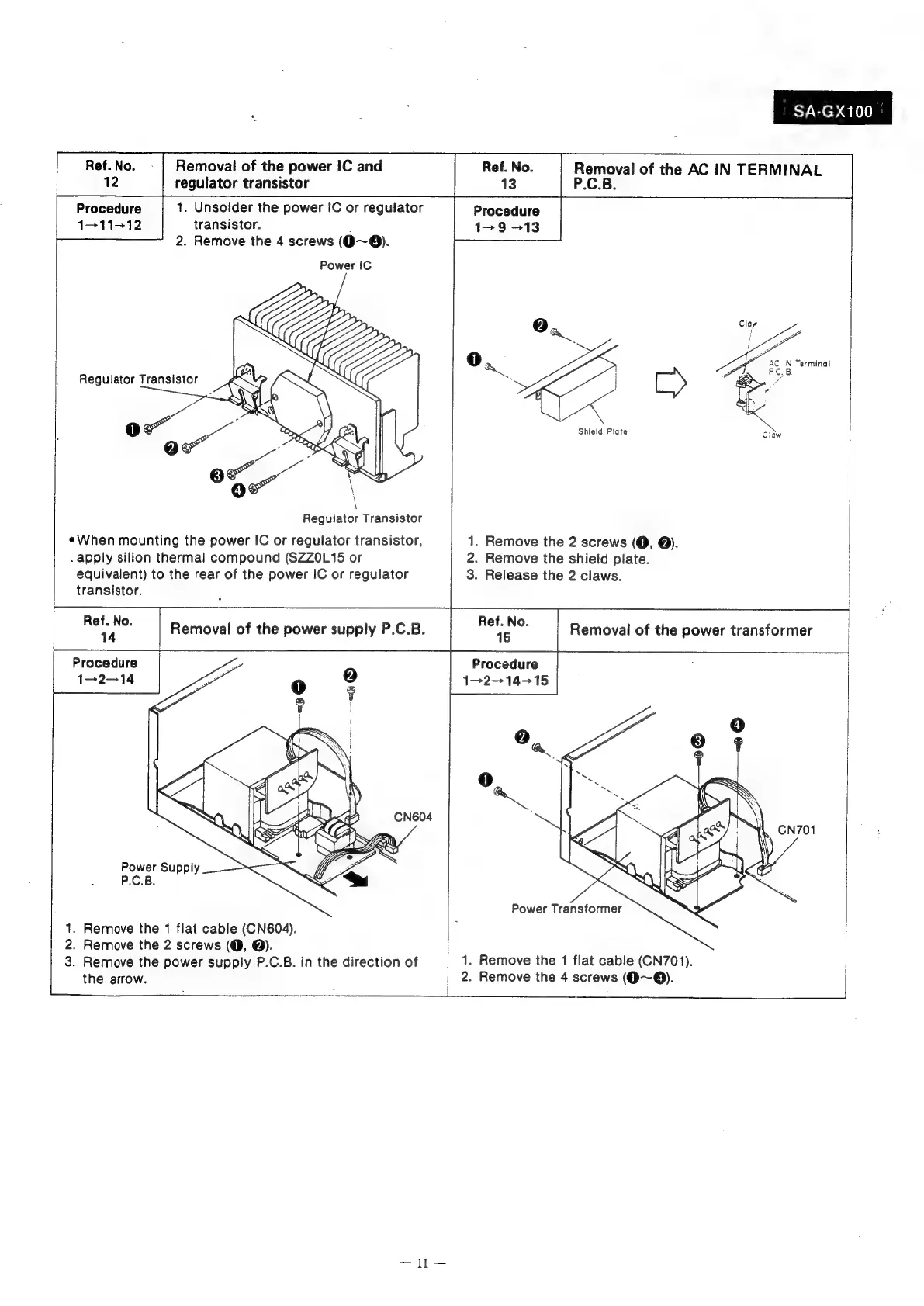

Procedure 1. Unsoider the power IC or regulator
1-11-12 transistor.
2. Remove the 4 screws (O~@).
Power !C
Regulator Transistor
eWhen mounting the power IC or regulator transistor,
. apply silion thermal compound (SZZ0L15 or
equivalent) to the rear of the power IC or regulator
transistor. .
nee
Removal
of
the
power
supply
P.C.B.
Procedure
1-2-—14
1. Remove the 1 flat cable (CN604).
2. Remove the 2 screws (@, @).
3. Remove the power supply P.C.B. in the direction of
the arrow.
Cy wep aren
- | Removal of the power IC and Ref. No. Removal of the AC IN TERMINAL
regulator transistor 13 P.C.B.
Procedure
1-9 +13
Claw
,
2
a
>
er
Shield Plate
1. Remove the 2 screws (@, @).
2. Remove the shield plate.
3. Release the 2 claws.
dere
Removal
of
the
power
transformer
Procedure
1—2— 14-15
Power Transformer
1. Remove the 1 flat cable (CN701).
2. Remove the 4 screws (Q~®).

Technics QUARTZ SA-GX100 Specifications

General

Total harmonic distortion	0.05%
Speaker load impedance	8Ω to 16Ω
Tuning range	FM: 87.5 - 108 MHz
Input sensitivity	150mV (line)
Dimensions	430 x 135 x 310 mm
Power output	100W per channel (8 ohms, 20Hz - 20kHz)
