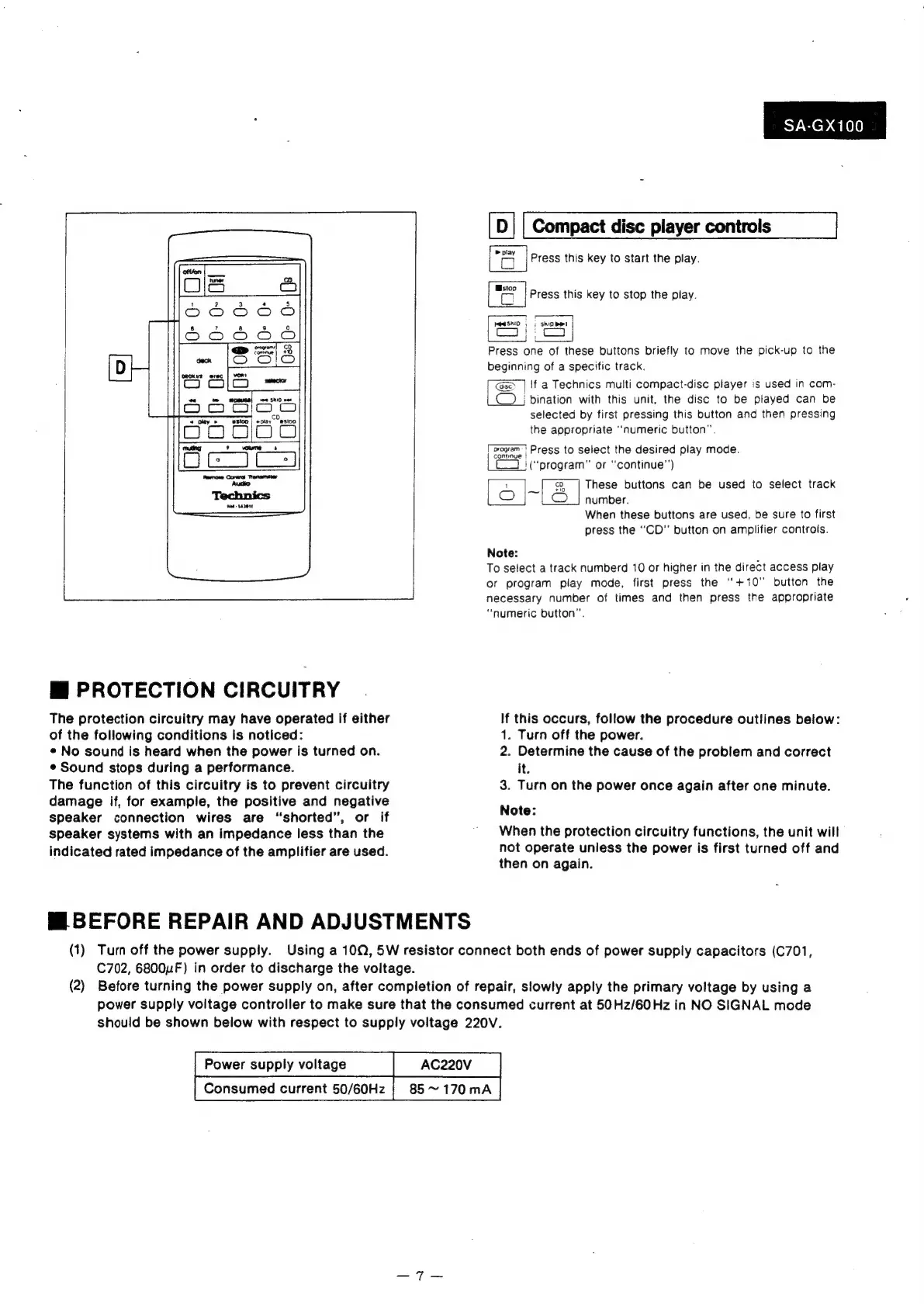

[D] Compact disc player controls
Press this key to start the play.
Press this key to stop the play.
ESRD | Shipp |
[ore pe : Cc
Press one of these buttons briefly to move the pick-up to the
beginning of a specific track.
[Gse ] If a Technics multi compact-disc player is used in com-
|_C) | bination with this unit, the disc to be played can be
selected by first pressing this button and then pressing
the appropriate “numeric button”.
program’ Press to Select the desired play mode.
continue |
C3 | (‘program” or “continue”)
1 ~| & | These buttons can be used to select track
Lo ©__} number.
When these buttons are used, be sure to first
press the “CD” button on amplifier controls.
Note:
To select a track numberd 10 or higher in the direct access play
or program play mode, first press the “+10” button the
necessary number of times and then press the appropriate
“numeric button”.
M@ PROTECTION CIRCUITRY
The protection circuitry may have operated if either If this occurs, follow the procedure outlines below:
of the following conditions is noticed: 1. Turn off the power.
¢ No sound is heard when the power is turned on. 2. Determine the cause of the problem and correct
¢ Sound stops during a performance. it.
The function of this circuitry is to prevent circuitry 3. Turn on the power once again after one minute.
damage if, for example, the positive and negative Note?
speaker connection wires are “shorted”, or if bd
speaker systems with an impedance less than the ’ When the protection circuitry functions, the unit will
indicated rated impedance of the amplifier are used. not operate unless the power is first turned off and
then on again.
M™@ BEFORE REPAIR AND ADJUSTMENTS
(1) Turn off the power supply. Using a 100, 5W resistor connect both ends of power supply capacitors (C701,
C702, 68004F) in order to discharge the voltage.
(2) Before turning the power supply on, after completion of repair, slowly apply the primary voltage by using a
power supply voltage controller to make sure that the consumed current at 50Hz/60Hz in NO SIGNAL mode
should be shown below with respect to supply voltage 220V.
Power supply voltage AC220V
Consumed current 50/60Hz | 85~170mA
