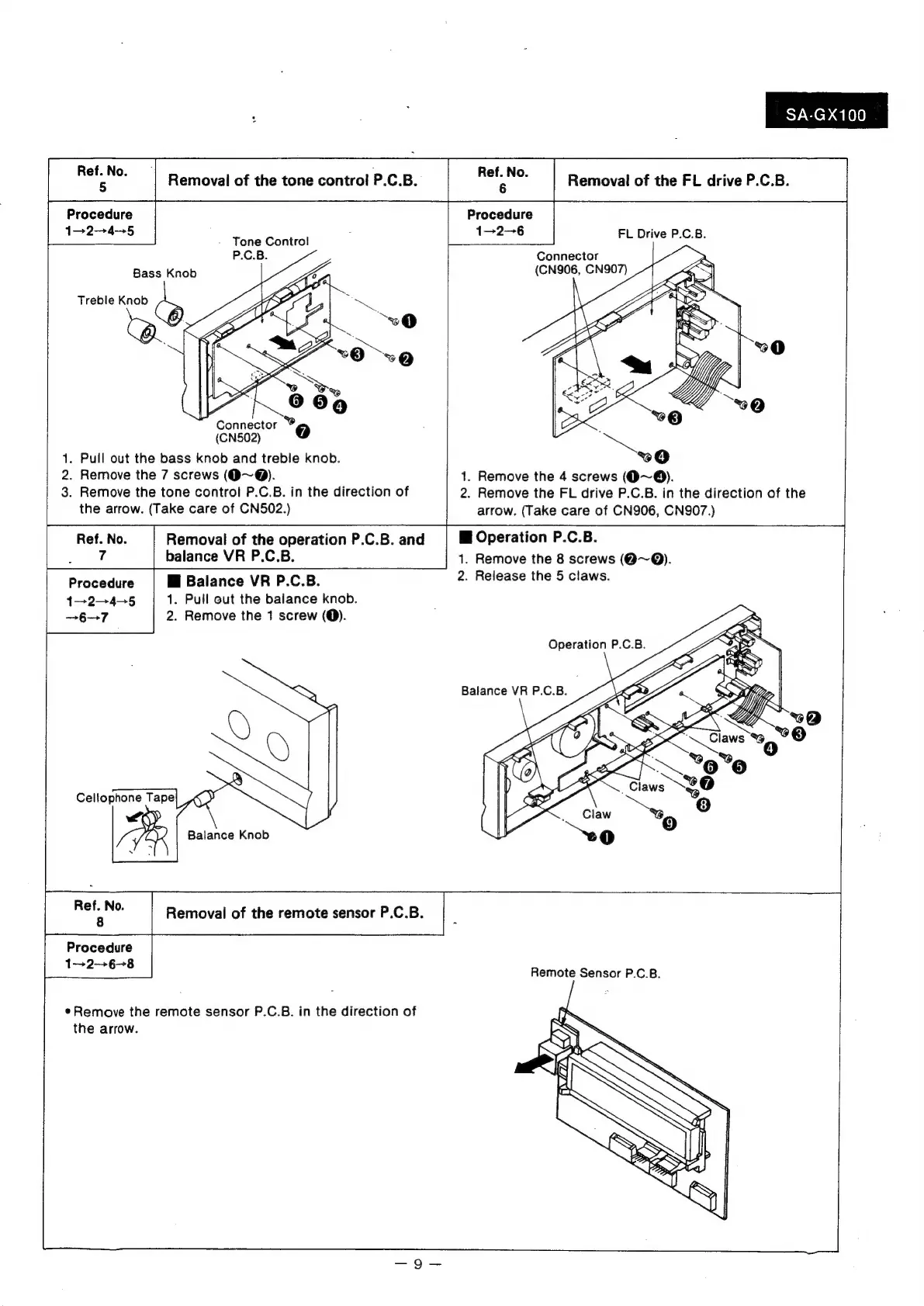

SA-GX100
©
Procedure
Procedure
Bass
Knob
P.C.B.
Connector
(CN906,
CN907)
Treble
Knob
"
Connector
(CN502)
7)
1.
Pull
out
the
bass
knob
and
treble
knob.
2.
Remove
the
7
screws
(@~@).
3.
Remove
the
tone
control
P.C.B.
in
the
direction
of
the
arrow.
(Take
care
of
CN502.)
Removal
of
the
operation
P.C.B.
and
balance
VR
P.C.B.
@
Balance
VR
P.C.B.
1.
Pull
out
the
balance
knob.
2.
Remove
the
1
screw
(Q).
1.
Remove
the
4
screws
(O~®).
2.
Remove
the
FL
drive
P.C.B.
in
the
direction
of
the
arrow.
(Take
care
of
CN906,
CN907.)
Hf
Operation
P.C.B.
1.
Remove
the
8
screws
(Q~Q).
2.
Release
the
5
claws.
Procedure
1-2--4-5
6-7
Cellophone
Tape
Balance
Knob
Procedure
12-68
Remote
Sensor
P.C.B.
¢Remove
the
remote
sensor
P.C.B.
in
the
direction
of
the
arrow.
