Technics Quartz SA-R230 - Page 6

SA-R230

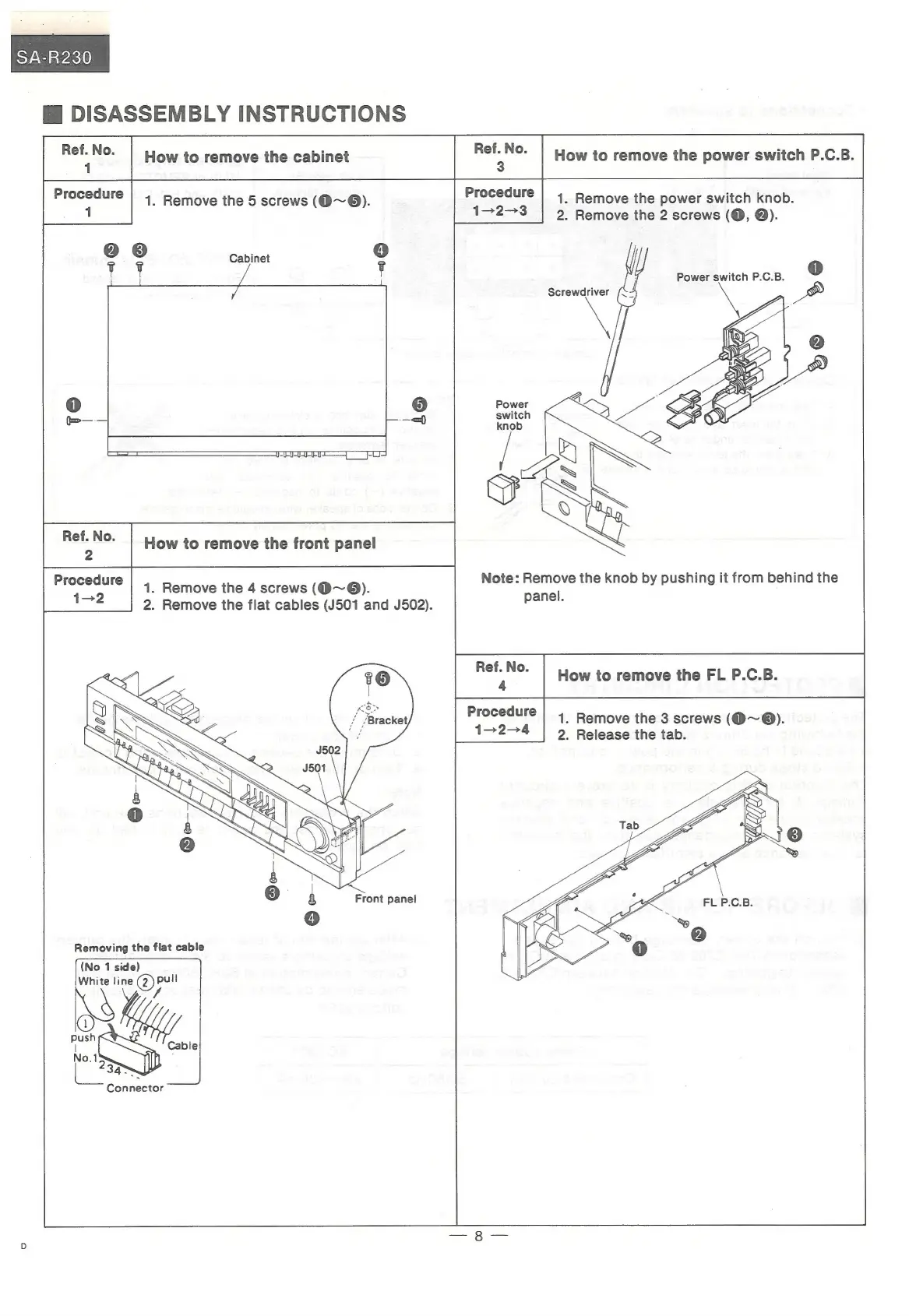

@ DISASSEMBLY INSTRUCTIONS
1
How to remove the cabinet Lee |
Procedure
1-2-3
1. Remove the 5 screws (@~@).
Cabinet
@
7
Procedure
1-2
(No 1 side)
push
No.1
23
=~
Connector
L
1. Remove the 4 screws (@~®@).
2. Remove the flat cables (J501 and J502).
Removing the flat cable
White line (Qypel
hy
Cable
How to remove the power switch P.C.B.
1. Remove the power switch knob.
2. Remove the 2 screws (@, @).
Power switch P.C.B.
Screwdriver /S =A
Note: Remove the knob by pushing it from behind the
panel.
1. Remove the 3 screws (@~®).
2. Release the tab.
