Technics RS-646DS-D

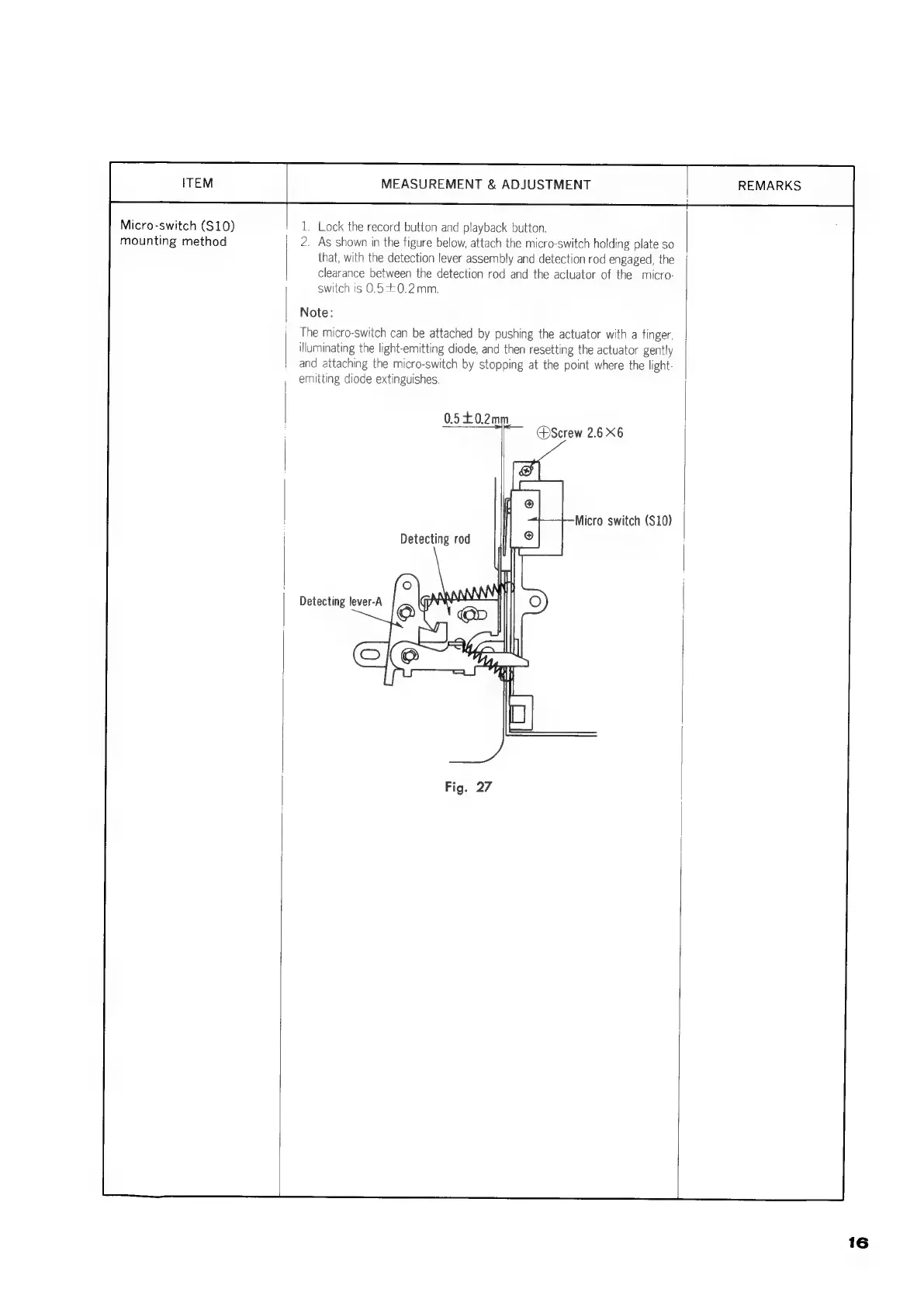

Micro-switch (S10)
mounting method
MEASUREMENT & ADJUSTMENT
1. Lock the record button and playback button.
2. As shown in the figure below, attach the micro-switch holding plate so
that, with the detection lever assembly and detection rod engaged, the
clearance between the detection rod and the actuator of the micro-
switch is 0.5£0.2mm.
Note:
The micro-switch can be attached by pushing the actuator with a finger,
illuminating the light-emitting diode, and then resetting the actuator gently
and attaching the micro-switch by stopping at the point where the light:
emitting diode extinguishes.
0.5£0.2mm
Screw 2.6 X6
Micro switch (S10)
Detecting rod
Detecting lever-A
REMARKS
16
