Technics RS-AZ7 Service Manual

I
R I
A
.
B
m
c
m
D
m
E
m
F
m
1
I
2
I
3
. 4 .-
1
5

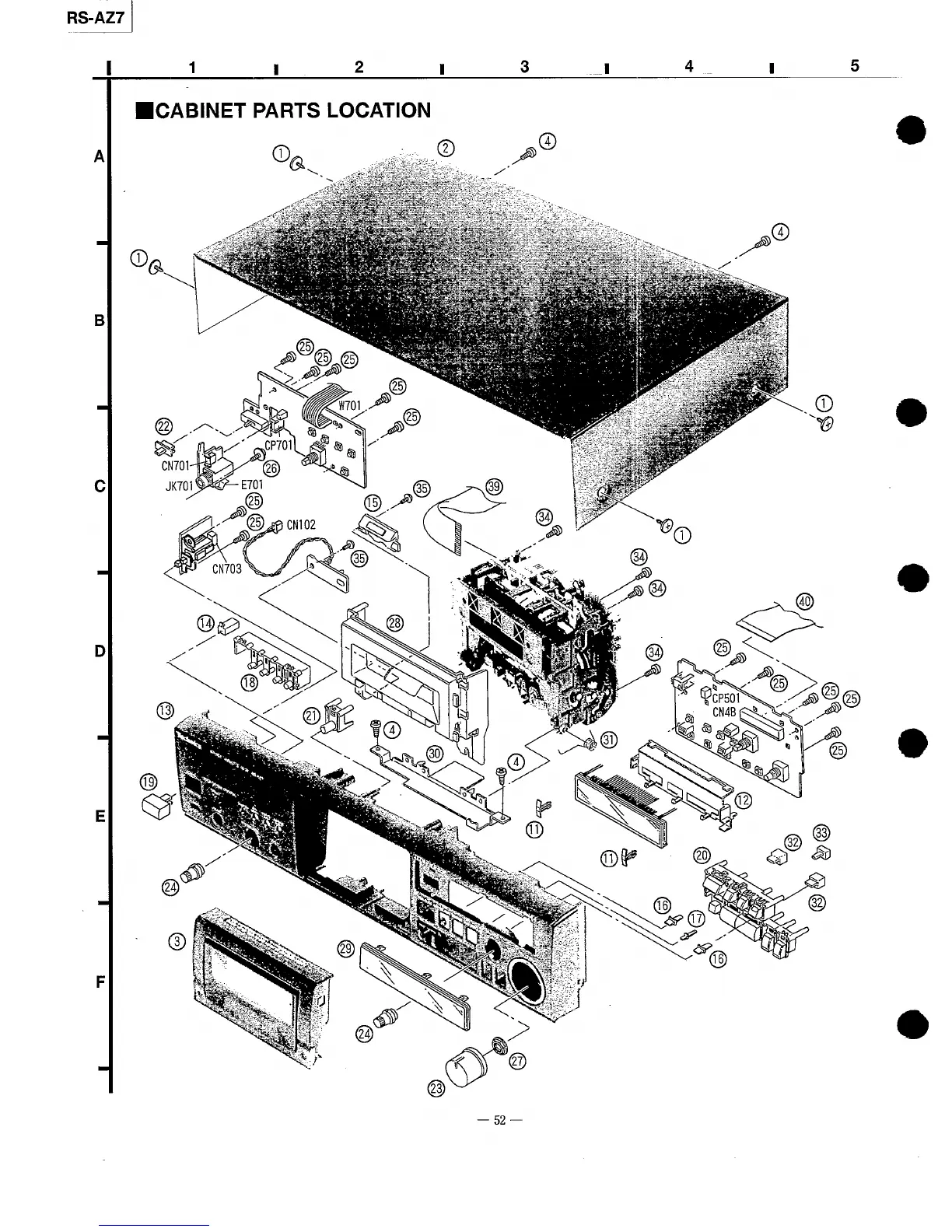

,CABINET PARTS LOCATION
&J’
— 52—

Technics RS-AZ7 Specifications

General

Tape Speed	4.8 cm/s
Track System	4-track, 2-channel stereo
Heads	1 x record/playback, 1 x erase
Weight	5.5 kg
Type	Cassette Deck
Tape Type	Normal, CrO2, Metal
Noise Reduction	Dolby B, C
Frequency Response	20Hz to 20kHz (Metal tape)
Input	Line In: 50mV
Output	Line out
Dimensions	430 x 120 x 290 mm
