Technics RS-M04

RS-MO4 RS-MO0O4

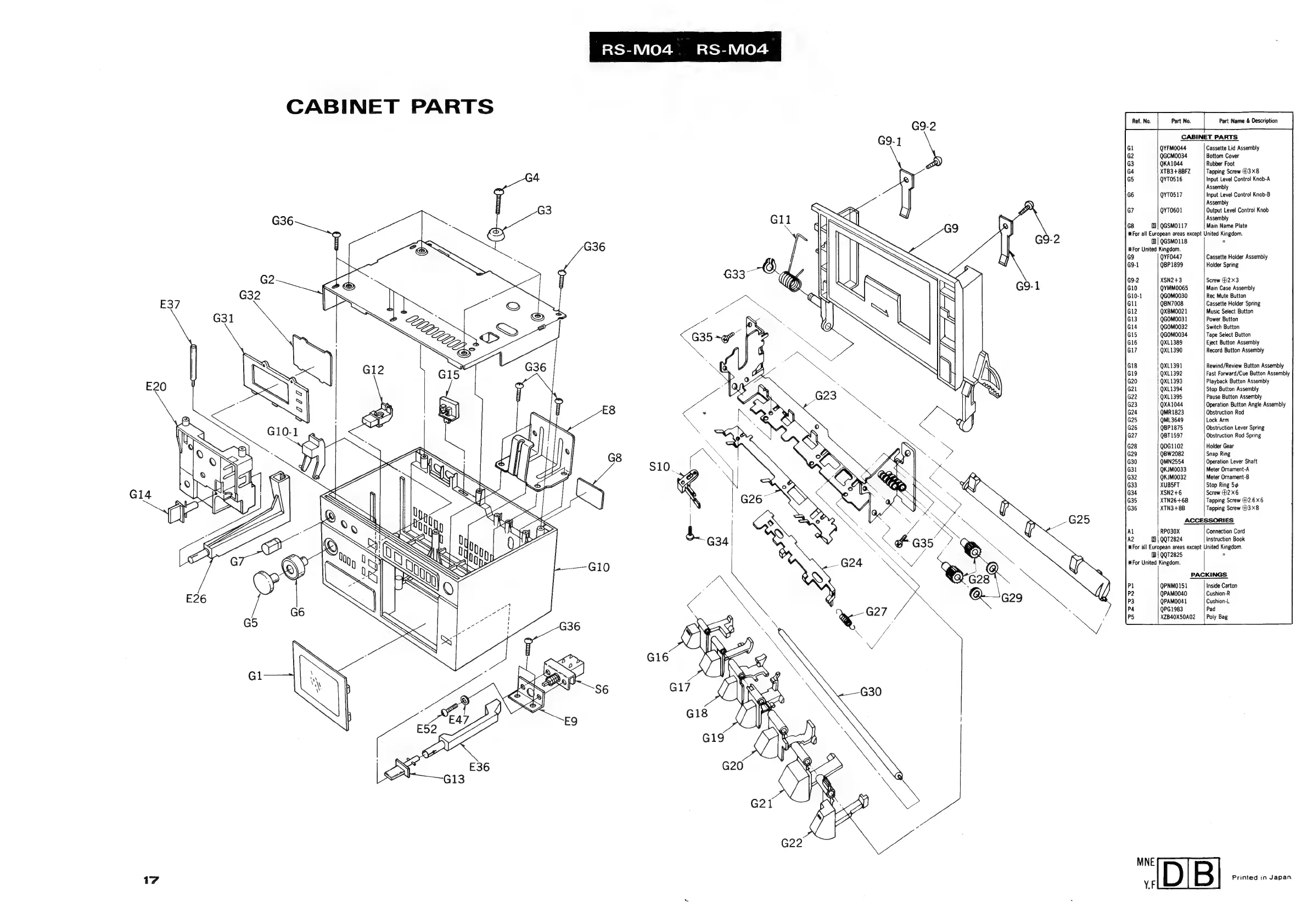

CABINET PARTS
G 9. 2 Part Name & Description
G9- 1 CABINET PARTS
QYFM0044 Cassette Lid Assembly
\ QGCM0034 Bottom Cover
QKA1044 Rubber Foot
4 XTB3+8BFZ Tapping Screw @3X8
QYT0516 Input Level Control Knob-A
Assembly
4 QYT0517 Input Level Control Knob-B
A Assembly
S QYT0601 Output Level Control Knob
S Assembly
8
A
RQ
QGSM0117
Main
Name
Plate
%For all European areas except United Kingdom.
A “ BI | QGSM0118 "
q Kingdom.
es G9 QYF0447 Cassette Holder Assembly
QBP1899 Holder Spring
XSN2+3 Screw ©2X3
QYMMO0065 Main Case Assembly
QGOM0030 Rec Mute Button
QBN7008 Cassette Holder Spring
QXBM0021 Music Select Button
QGOM0031 Power Button
QGOM0032 Switch Button
QGOM0034 Tape Select Button
QXL1389 Eject Button Assembly
QXL1390 Record Button Assembly
Mth,
q@
ite)
Pe 7
LL
Mi
L?
QXL1391 Rewind/Review Button Assembly
QXL1392 Fast Forward/Cue Button Assembly
QXL1393 Playback Button Assembly
QXL1394 Stop Button Assembly
QXL1395 Pause Button Assembly
QXA1044 Operation Button Angle Assembly
QMR1823 Obstruction Rod
QML3649 Lock Arm
QBP1875 Obstruction Lever Spring
QBT1597 Obstruction Rod Spring
QDG1102 Holder Gear
QBW2082 Snap Ring
QMN2554 Operation Lever Shaft
QKJM0033 Meter Ornament-A
QKJM0032 Meter Ornament-B
XUBSFT Stop Ring 5¢
XSN2+6 Screw ©2X6
XTN26+6B Tapping Screw ®2.6x6
XTN3+8B Tapping Screw 3X8
ACCESSORIES
RPO30X Connection Cord
D | QQT2824 Instruction Book
For all European areas except United Kingdom.
| 9972825 "
«For United Kingdom.
Lf
PACKINGS
QPNMO151 Inside Carton
QPAM0040 Cushion-R
QPAM0041 Cushion-L
QPG1983 Pad
XZB40X50A02 ‘| Poly Bag
MNE
17
YF
‘DIB
Printed
tn
Japan.
