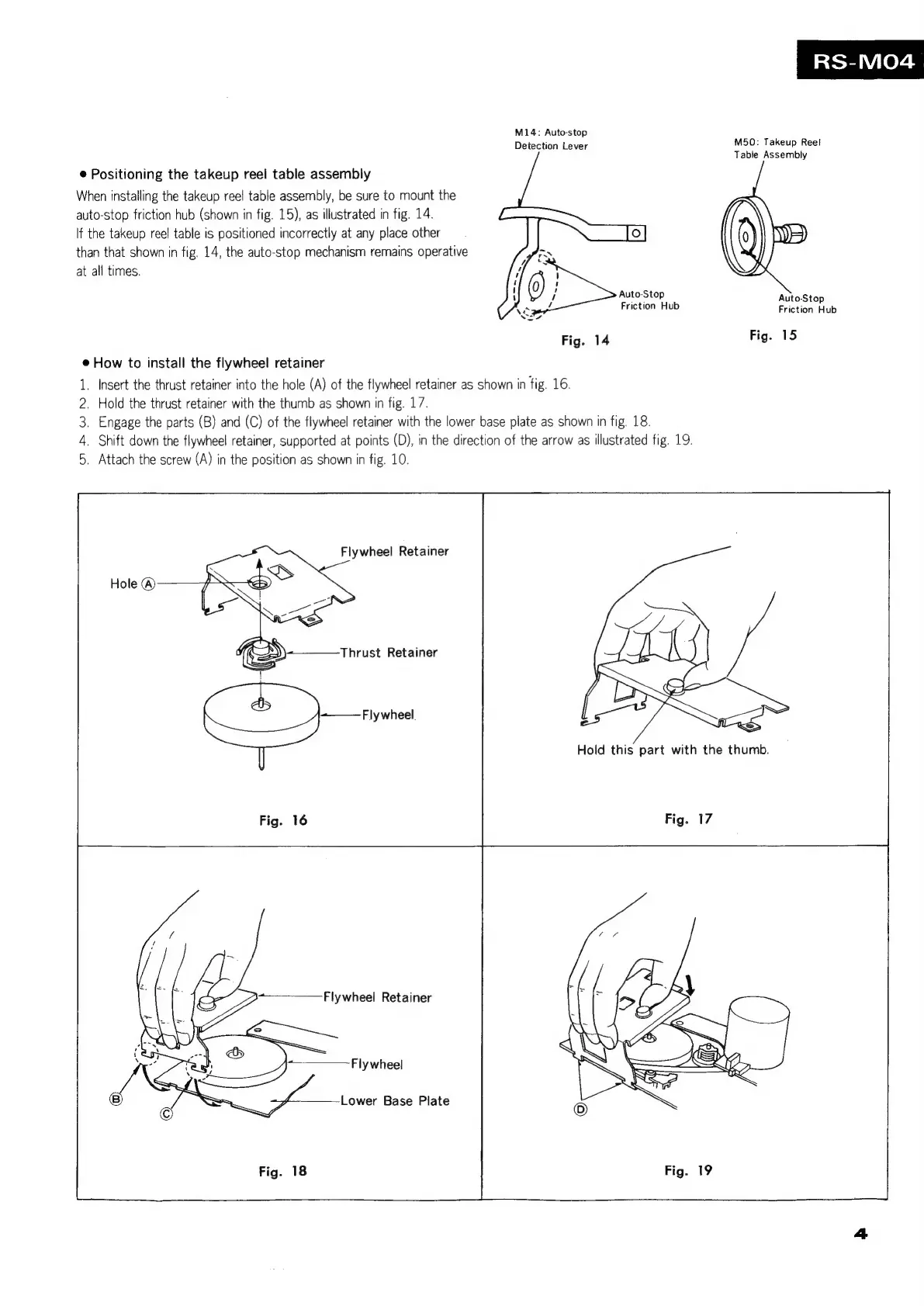

M50:
Takeup
Reet
Table
Assembly
M14:
Auto-stop
Detection
Lever
e
Positioning
the
takeup
reel
table
assembly
When
installing
the
takeup
reel
table
assembly,
be
sure
to
mount
the
auto-stop
friction
hub
(shown
in
fig.
15),
as
illustrated
in
fig.
14.
If
the
takeup
reel
table
is
positioned
incorrectly
at
any
place
other
than
that
shown
in
fig.
14,
the
auto-stop
mechanism
remains
operative
at
all
times.
Auto-Stop
Auto-Sto
Friction
Hub
Friction
Hub
Fig.
14
Fig.
15
©
How
to
install
the
flywheel
retainer
Insert
the
thrust
retainer
into
the
hole
(A)
of
the
flywheel
retainer
as
shown
in
fig.
16.
Hold
the
thrust
retainer
with
the
thumb
as
shown
in
fig.
17.
Engage
the
parts
(B)
and
(C)
of
the
flywheel
retainer
with
the
lower
base
piate
as
shown
in
fig.
18.
Shift
down
the
flywheel
retainer,
supported
at
points
(D),
in
the
direction
of
the
arrow
as
illustrated
fig.
19.
.
Attach
the
screw
(A)
in
the
position
as
shown
in
fig.
10.
OFWNr
Flywheel
Retainer
Thrust
Retainer
1)
Hold
this
part
with
the
thumb.
Flywheel
Flywheel
Retainer
}~—_———-
Flywheel
Lower
Base
Plate
