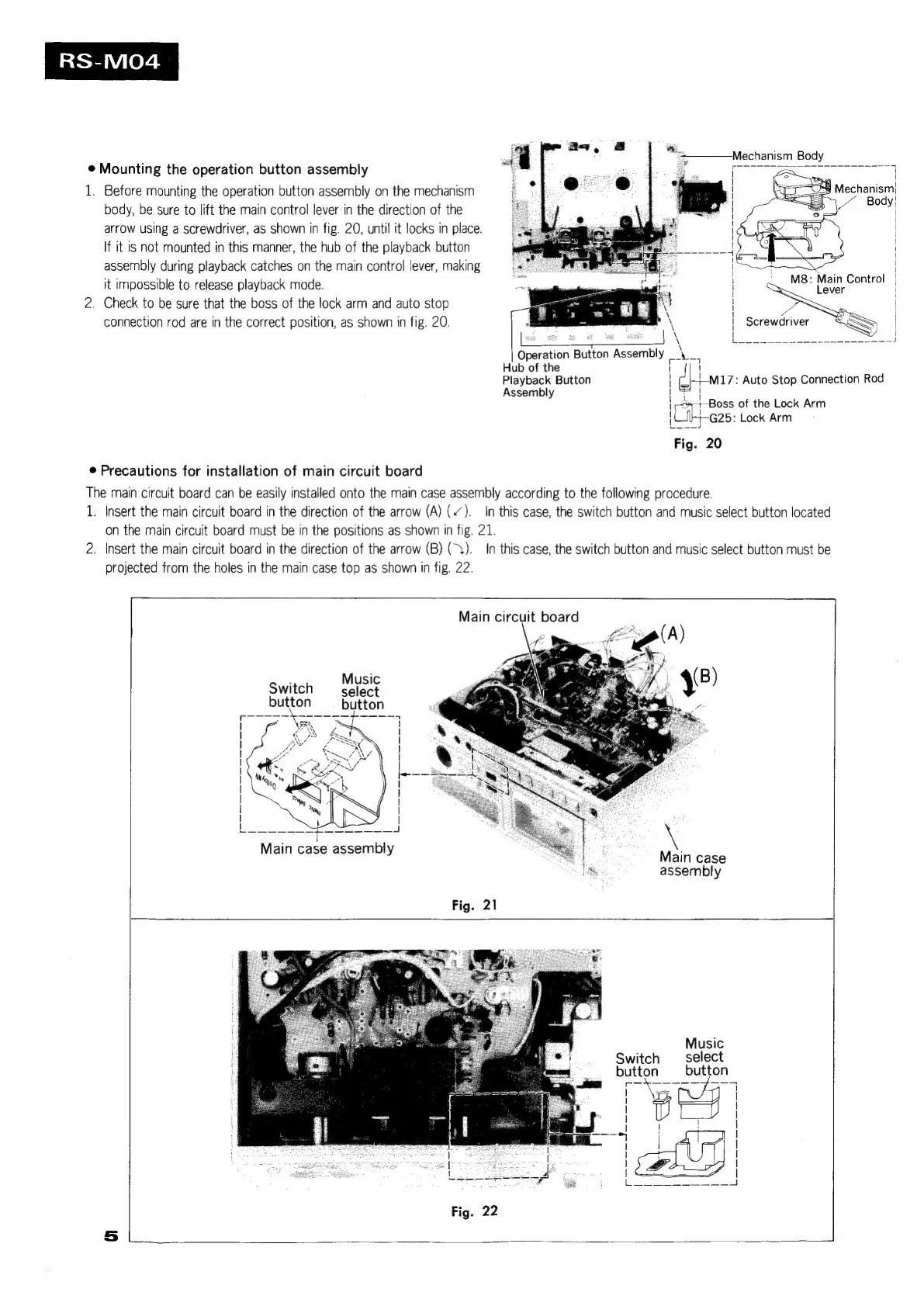

® Mounting the operation button assembly
1. Before mounting the operation button assembly on the mechanism
body, be sure to lift the main control lever in the direction of the
arrow using a screwdriver, as shown in fig. 20, until it locks in place.
If it is not mounted in this manner, the hub of the playback button
assembly during playback catches on the main control lever, making
it impossible to release playback mode.
2. Check to be sure that the boss of the lock arm and auto stop
connection rod are in the correct position, as shown in fig. 20. a \
rr 2 oo ae \
aa Button Assembly ayes
Hub of the
Playback Button
Assembly
_
!
Fig. 20
© Precautions for installation of main circuit board
The main circuit board can be easily installed onto the main case assembly according to the following procedure.
Fe
Mechanism Body
seta lead hea een
Mechanism|
_~ Body;
|
|
|
1
\
t
M8: Main Control |
—_ Lever
|
|
if
|
t
HM 17: Auto Stop Connection Rod
= |
rary Bass of the Lock Arm
17-G25: Lock Arm
1. Insert the main circuit board in the direction of the arrow (A) (“). In this case, the switch button and music select button located
on the main circuit board must be in the positions as shown in fig. 21.
2. Insert the main circuit board in the direction of the arrow (B) (~\). In this case, the switch button and music select button must be
projected from the holes in the main case top as shown in fig. 22.
Main circuit board
Switch we P ane a )
button —_— button ; P
Main
case
assembly
Main
case
1a assembly
Music
Switch select
button button
