Technics RS-M7 Service Manual

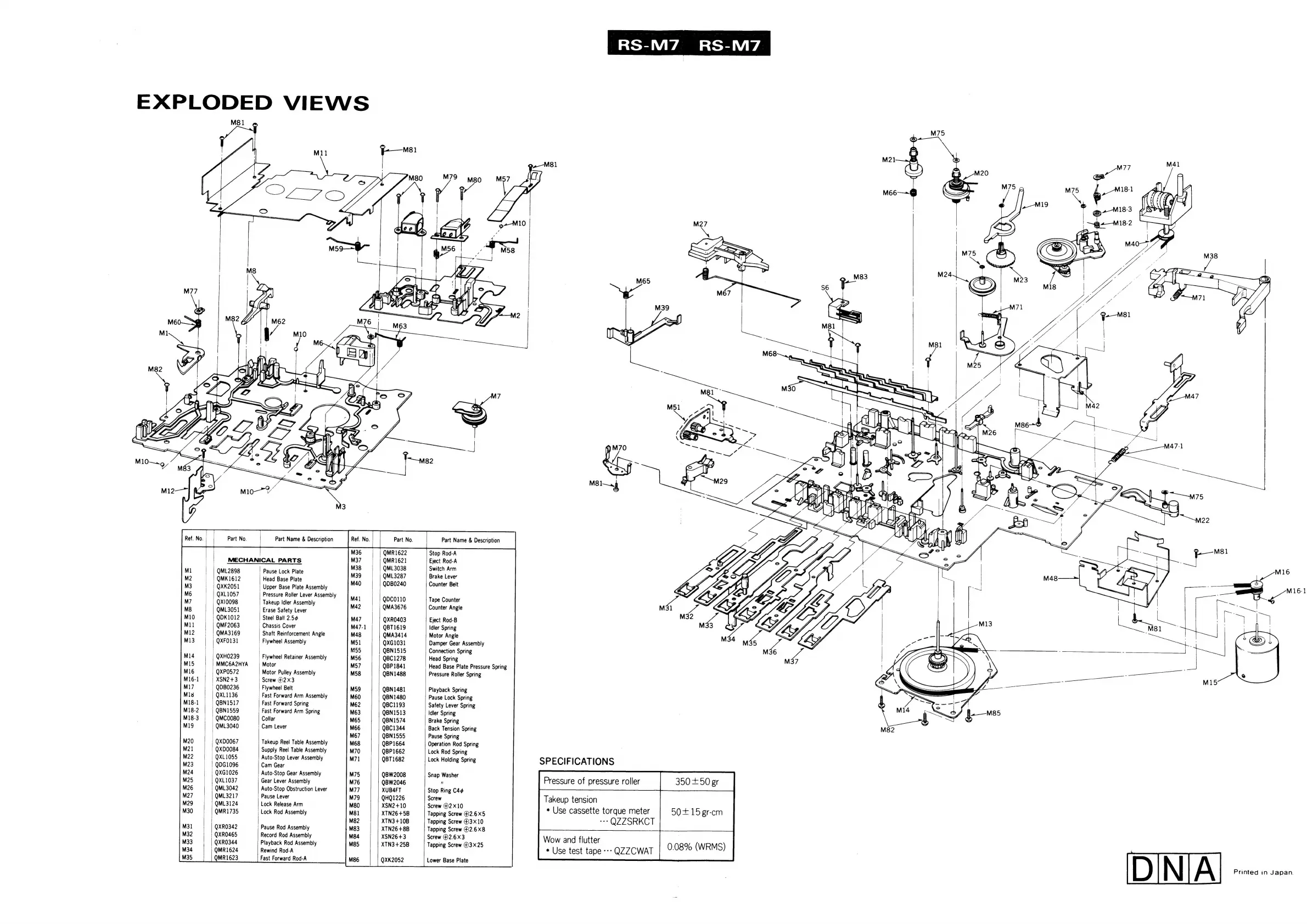

EXPLODED VIEWS
M31
M35
Part No.
Part Name & Description
MECHANICAL PARTS
QML2898
QMK1612
QXK2051
QXL1057
Qx10098
QML3051
QDK1012
QMF2063
QMA3169
QXFO131
QXH0239
MMC6A2HYA
QXP0572
XSN2+3
QDB0236
OXL1136
QBN1517
QBN1559
QMC0080
QML3040
QxD0067
QxD0084
QXL1055
0DG1096
0XG1026
QXL1037
QML3042
QML3217
QML3124
QMR1735
QXR0342
QXRO465
QXR0344
QMR1624
QMR1623
Pause Lock Plate
Head Base Plate
Upper Base Plate Assembly
Pressure Roller Lever Assembly
Takeup Idler Assembly
Erase Safety Lever
Steel Ball 2.5¢
Chassis Cover
Shaft Reinforcement Angle
Flywheel Assembly
Flywheel Retainer Assembly
Motor
Motor Pulley Assembly
Screw #2x3
Flywheel Belt
Fast Forward Arm Assembly
Fast Forward Spring
Fast Forward Arm Spring
Collar
Cam Lever
Takeup Reel Table Assembly
Supply Reel Table Assembly
Auto-Stop Lever Assembly
Cam Gear
Auto-Stop Gear Assembly
Gear Lever Assembly
Auto-Stop Obstruction Lever
Pause Lever
Lock Release Arm
Lock Rod Assembly
Pause Rod Assembly
Record Rod Assembly
Playback Rod Assembly
Rewind Rod-A
Fast Forward Rod-A
Ref. No.
M36
M37
M38
M39
M40
M41
M42
M47
M47-1
M48
M51
M55
M56
M57
M58
M85
M86
Part No.
QMR1622
QMR1621
QML3038
QML3287
QDB0240
QDC0110
QMA3676
QXR0403
QBT1619
QMA3414
QXxG1031
QBN1515
QBC1278
QBP1841
QBN1488
QBN1481
QBN1480
QBC1193
QBN1513
QBN1574
QBC1344
QBN1555
QBP1664
QBP1662
QBT1682
QBW2008
QBW2046
XUB4FT
QHQ1226
XSN2+10
XTN26+5B
XTN3+10B
XTN26+8B
XSN26+3
XTN3+25B
QXK2052
Part Name & Description
Stop Rod-A
Eject Rod-A
Switch Arm
Brake Lever
Counter Beit
Tape Counter
Counter Angle
Eject Rod-B
Idler Spring
Motor Angle
Damper Gear Assembly
Connection Spring
Head Spring
Head Base Plate Pressure Spring
Pressure Roller Spring
Playback Spring
Pause Lock Spring
Safety Lever Spring
Idler Spring
Brake Spring
Back Tension Spring
Pause Spring
Operation Rod Spring
Lock Rod Spring
Lock Holding Spring
Snap Washer
"
Stop
Ring
C4¢
Screw
Screw
2X10
Tapping
Screw
@2.6X5
Tapping
Screw
@3X10
Tapping
Screw
©2.6X8
Screw
62.6X3
Tapping
Screw
@3x25
Lower Base Plate
SPECIFICATIONS
Pressure of pressure roller
Takeup tension
* Use cassette torque meter
“© O77 SRACT
Wow and flutter
* Use test tape --- Q7Z7CWAT
350 +50 gr
50+ 15 gr-cm
0.08% (WRMS
M75
[\ Printed in Japan.
