Technics RS-TR165

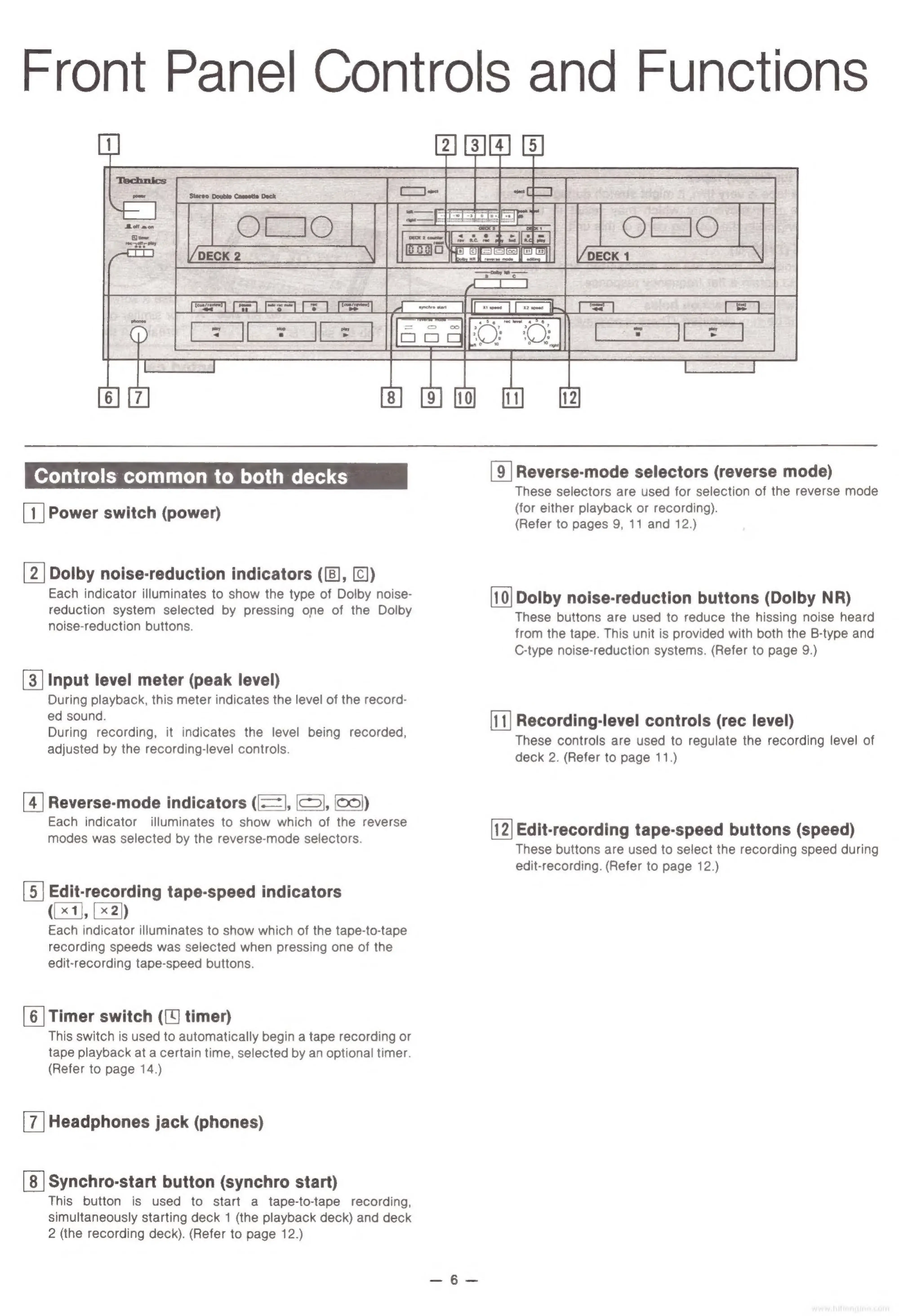

Front Panel Controls and Functions
Controls common to both decks
Power switch (power)
|
2
|
Dolby
noise-reduction
indicators
((),
[C])
Each indicator illuminates to show the type of Dolby noise-
reduction system selected by pressing one of the Dolby
noise-reduction buttons.
[3] Input level meter (peak level)
During playback, this meter indicates the level of the record-
ed sound.
During recording, it indicates the level being recorded,
adjusted by the recording-level controls.
[4]
Reverse-mode
indicators
((—],
(Sl,
60)
Each
indicator
illuminates
to
show
which
of
the
reverse
modes
was
selected
by
the
reverse-mode
selectors.
o
Edit-recording tape-speed indicators
(x1), |x2))
Each indicator illuminates to show which of the tape-to-tape
recording speeds was selected when pressing one of the
edit-recording tape-speed buttons.
[6 | Timer switch ({{) timer)
This switch is used to automatically begin a tape recording or
tape playback at a certain time, selected by an optional timer.
(Refer to page 14.)
7 |Headphones jack (phones)
a
Synchro-start button (synchro start)
This button is used to start a tape-to-tape recording,
simultaneously starting deck 1 (the playback deck) and deck
2 (the recording deck). (Refer to page 12.)
[9]
Reverse-mode
selectors
(reverse
mode)
These selectors
are used for selection
of the reverse mode
(for either playback
or recording).
(Refer to pages 9, 11 and 12.)
[10] Dolby noise-reduction buttons (Dolby NR)
These buttons are used to reduce the hissing noise heard
from the tape. This unit is provided with both the B-type and
C-type noise-reduction systems. (Refer to page 9.)
[11] Recording-level controls (rec level)
These controls are used to regulate the recording level of
deck 2. (Refer to page 11.)
[12] Edit-recording tape-speed buttons (speed)
These buttons are used to select the recording speed during
edit-recording. (Refer to page 12.)
