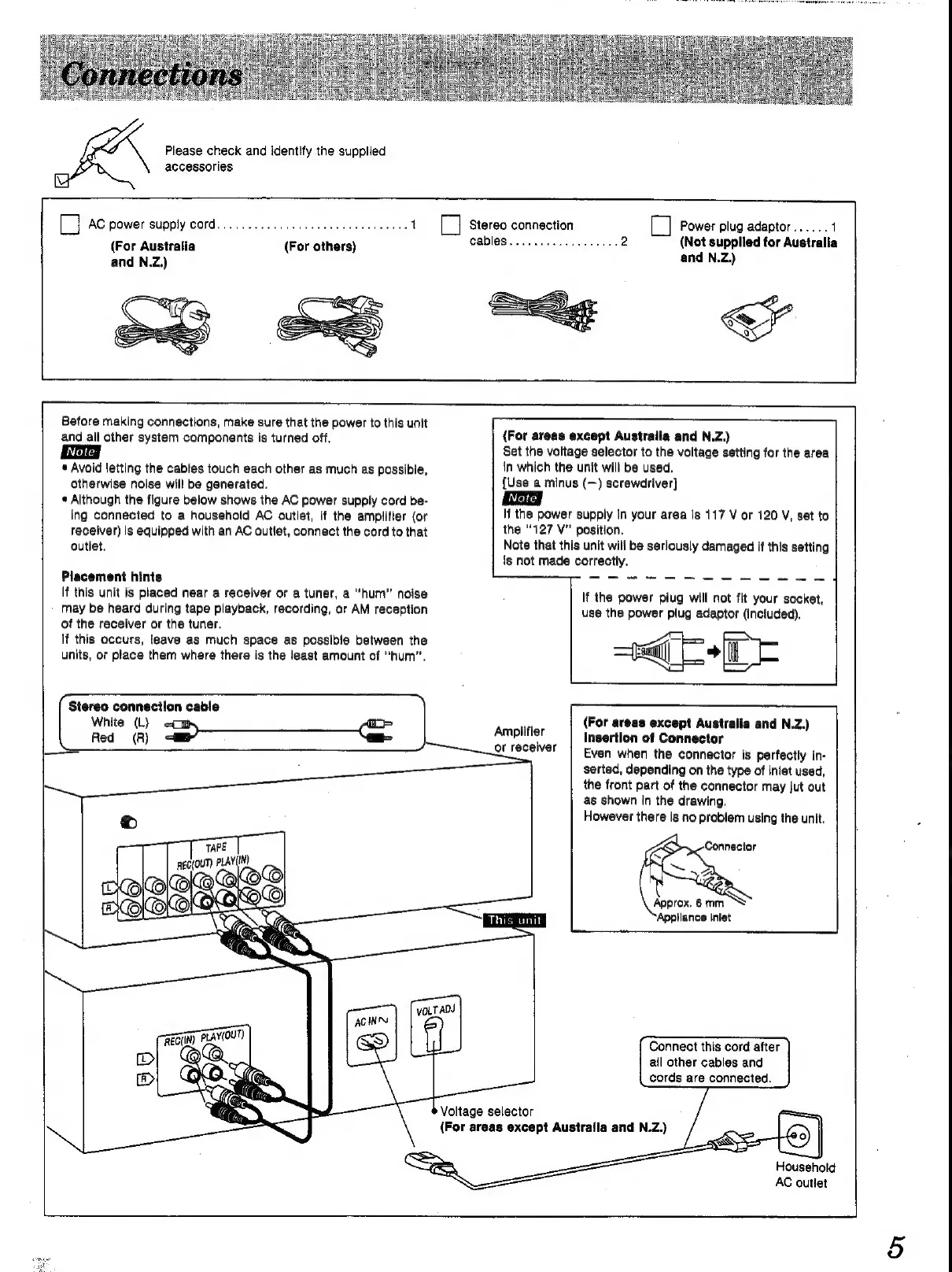

Technics RS-TR252 User Manual

Please check and identify the supplied
accessories
CI AC power supply cord... 6. ccc cece eee 1 | Stereo connection C] Power plug adaptor...... 1
(For Australia (For others) Cables... eee 2 (Not supplied for Australla
and
N.Z.)
and
N.Z.)
(ieee making connections, make sure that the power to this unit
and all other system components is turned off.
* Avoid letting the cables touch each other as much as possible,
otherwise noise will be generated.
* Although the figure below shows the AC power supply cord be-
ing connected to a household AC outlet, if the amplifier (or
receiver) is equipped with an AC outlet, connect the cord to that
outlet.
Placement hints
If this unit is placed near a receiver or a tuner, a “hum” noise
» May be heard during tape playback, recording, or AM reception
of the receiver or the tuner.
If this occurs, leave as much space as possible between the
units, or place them where there is the least amount of “hum”.
Stereo connection cable
White (L) =) =
Red (R)
Voltage selector
(For areas except Austraila and N.Z.)
(For areas except Australia and N.Z.)
Set the voltage selector to the voltage setting for the area
in which the unit will be used.
{Use a minus (—) screwdriver}
lf the power supply in your area is 117 V or 120 V, set to
the 127 V" position.
Note that this unit will be seriously damaged if this setting
is not made correctly.
If the power piug will not fit your socket,
use the power plug adaptor (included).
(E+E
(For areas except Australia and N.Z.)
Insertion of Connector
Even when the connector is perfectly in-
serted, depending on the type of inlet used,
the front part of the connector may jut out
as shown In the drawing.
However there is no problem using the unit.
Amplifier
or receiver
Approx. 6 mm
This unit ‘Appliance inlet
Connect this cord after
ail other cables and
cords are connected.
Household
AC outlet
