Technics SA-5170 - Parts List

OZLS-VS [81]

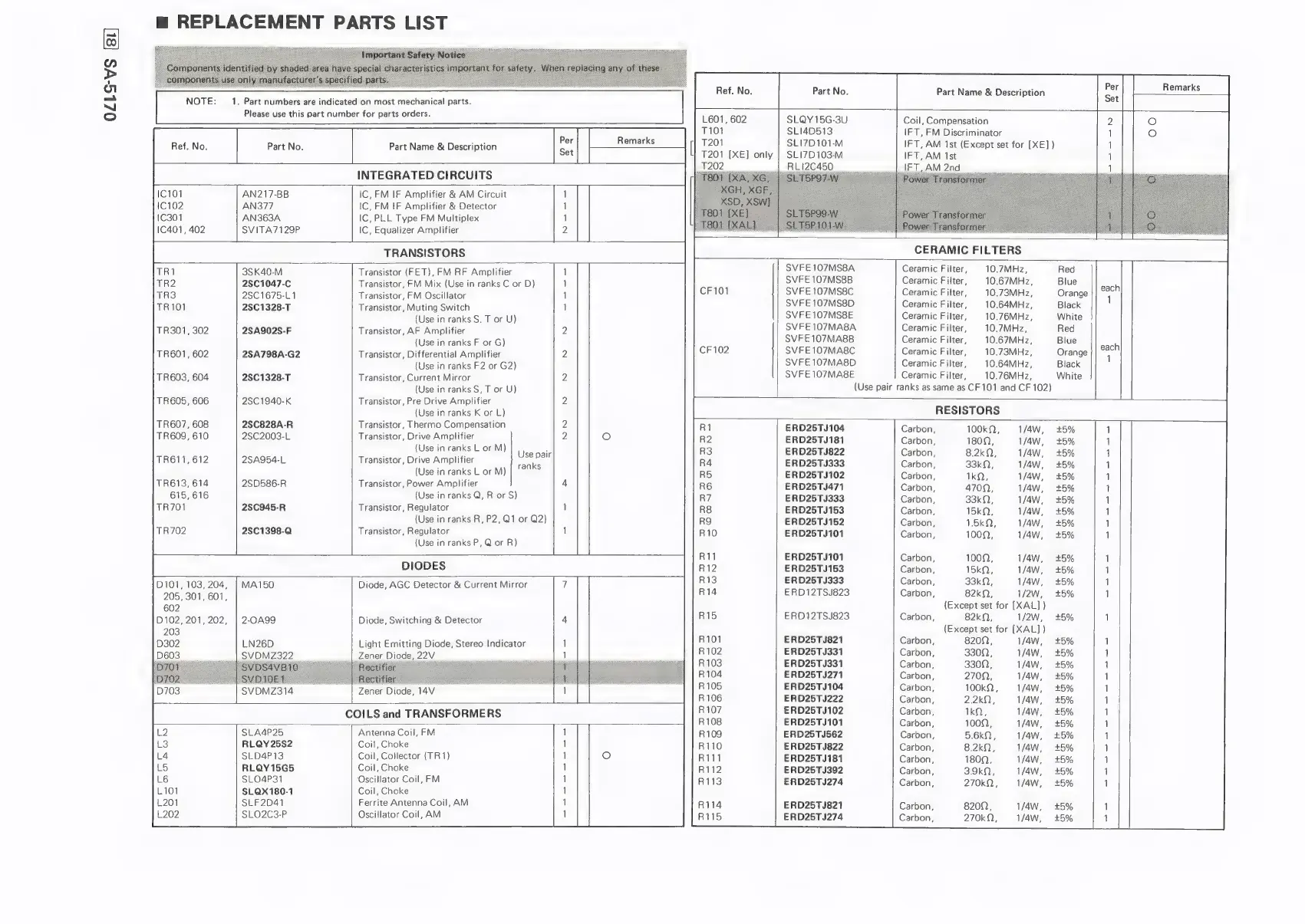

m@ REPLACEMENT PARTS LIST
.
NOTE: 1. Part numbers are indicated on most mechanical parts.
Please use this part number for parts orders.
| |__|
Part No.
Part Name & Description
3
INTEGRATED CIRCUITS
1C101 AN217-BB
1C102 AN377
1C301 AN363A
1C401, 402 SVITA7129P
IC, FM IF Amplifier & AM Circuit
IC, FM IF Amplifier & Detector
IC, PLL Type FM Multiplex
IC, Equalizer Amplifier
TRANSISTORS
3SK40-M
28C1047-C
2SC1675-L1
2SC1328-T
TR301, 302 2SA902S-F
TR601, 602 2SA798A-G2
TR603, 604 2SC1328-T
TR605, 606 2SC1940-K
2SC828A-R
2SC2003-L
TR607, 608
TR609, 610
TR611, 612 2SA954-L
TR613, 614
615, 616
TR701 2SC945-R
2SD586-R
TR702 2SC1398-Q
——— oes
Transistor (FET), FM RF Amplifier
Transistor, FM Mix (Use in ranks C or D)
Transistor, FM Oscillator
Transistor, Muting Switch
(Use in ranks S. T or U)
Transistor, AF Amplifier
(Use in ranks F or G)
Transistor, Differential Amplifier
(Use in ranks F2 or G2)
Transistor, Current Mirror
(Use in ranks S, T or U)
Transistor, Pre Drive Amplifier
(Use in ranks K or L)
Transistor, Thermo Compensation
Transistor, Drive Amplifier
(Use in ranks L or M)
Transistor, Drive Amplifier
(Use in ranks L or M)
Transistor, Power Amplifier
(Use in ranks Q, R or S)
Transistor, Regulator
(Use in ranks R, P2,Q1 or Q2)
Transistor, Regulator
(Use in ranks P, Q or R)
Use pair
ranks
DIODES
0101, 103, 204, | MA150
205, 301, 601,
602
D102, 201, 202, | 2-OA99
LN26D
SVDMZ322
SVDMZ314
Diode, AGC Detector & Current Mirror
Diode, Switching & Detector
Light Emitting Diode, Stereo Indicator
Zener Diode, 22V
Zener Diode, 14V
COILS and TRANSFORMERS
SLA4P25
RLQY25S2
SLD4P13
RL@Y15G5
SLO4P31
SLQX180-1
SLF2D41
SLO2C3-P
Antenna Coil, FM
Coil, Choke
Coil, Collector (TR1)
Coil, Choke
Oscillator Coil, FM
Coil, Choke
Ferrite Antenna Coil, AM
Oscillator Coil, AM
Ref.
No.
Part
No.
Part
Name
&
Description
a
Remarks
L601,
602
SL@Y
15G-3U
Coil,
Compensation
2:
(e}
7101
SLI4D513
IFT,
FM
Discriminator
1
e)
7201
SLI7D101-M
IFT,
AM
1st
(Except
set
for
[XE])
1
T201 [XE]
only
| SLI7D103-M
IFT,
AM
1st
1
T202
RLI2C450
IFT,
AM
2nd
1
CERAMIC FILTERS
ni SVFE107MS8A Ceramic Filter, 10.7MHz, Red
SVFE107MS8B Ceramic Filter, 10.67MHz, Blue
CF101 SVFE107MS8C Ceramic Filter, 10.73MHz, Orange || °°
SVFE107MS8D Ceramic Filter, 10.64MHz, Black
SVFE107MS8E Ceramic Filter, 10.76MHz, White
SVFE107MA8A Ceramic Filter, 10.7MHz, Red
SVFE107MA8B Ceramic Filter, 10.67MHz, Blue
CF 102 SVFE107MA8C Ceramic Filter, 10.73MHz, Orange ie
SVFE107MA8D Ceramic Filter, 10.64MHz, Black
SVFE107MA8E Ceramic Filter, 10.76MHz, White
(Use pair ranks as same as CF 101 and CF 102)
RESISTORS
R1 ERD25TJ104 Carbon, 100kN, 1/4W, +5% 1
R2 ERD25TJ181 Carbon, 1800, 1/4W, +5% 1
R3 ERD25TJ822 Carbon, 8.2k0, 1/4W, +5% 1
R4 ERD25TJ333 Carbon, 33k0, 1/4W, +5% 1
R5 ERD25TJ102 Carbon, 1kQ, 1/4W, +5% 1
R6 ERD25TJ471 Carbon, 4700, 1/4W, +5% 1
R7 ERD25TJ333 Carbon, 33k, 1/4W, +5% 1
R8 ERD25TJ153 Carbon, 15k, 1/4W, +5% 1
RQ ERD25TJ152 Carbon, 1.5kQ, 1/4wW, +5% 1
R10 ERD25TJ101 Carbon, 1000, 1/4W, +5% 1
R11 ERD25TJ101 Carbon, 1000, 1/4W, +5% 1
R12 ERD25TJ153 Carbon, 16kQ, 1/4W, +5% 1
R13 ERD25TJ333 Carbon, 33k, 1/4W, +5% 1
R14 ERD12TSJ823 Carbon, 82k0, 1/2W, +5% 1
(Except set for [XAL] )
R15 ERD12TSJ823 Carbon, 82k, 1/2W, +5% 1
(Except set for [XAL] )
R101 ERD25TJ821 Carbon, 8200, 1/4W, +5% 1
R102 ERD25TJ331 Carbon, 3300, 1/4W, +5% 1
R103 ERD25TJ331 Carbon, 3300, 1/4W, +5% 1
R104 ERD25TJ271 Carbon, 2700, 1/4W, +5% i
R105 ERD25TJ104 Carbon, 100kN, 1/4W, +5% 1
R106 ERD25TJ222 Carbon, 2.2k0, 1/4W, +5% 1
R107 ERD25TJ102 Carbon, 1kQ, 1/4W, +5% 1
R108 ERD25TJ101 Carbon, 1000, 1/4W, +5% 1
R109 ERD25TJ562 Carbon, 5.6k0, 1/4W, +5% 1
R110 ERD25TJ822 Carbon, 8.2k0, 1/4W, +5% 1
R111 ERD25TJ181 Carbon, 1800, 1/4W, +5% 1
R112 ERD25TJ392 Carbon, 3.9k0, 1/4W, +5% 1
R113 ERD25TJ274 Carbon, 270k, 1/4W, +5% 1
R114 ERD25TJ821 Carbon, 8200, 1/4W, +5% 1
R115 ERD25TJ274 Carbon, 270k, 1/4wW, +5% 1
