Technics SA-AX540 User Manual

12
RQT5212

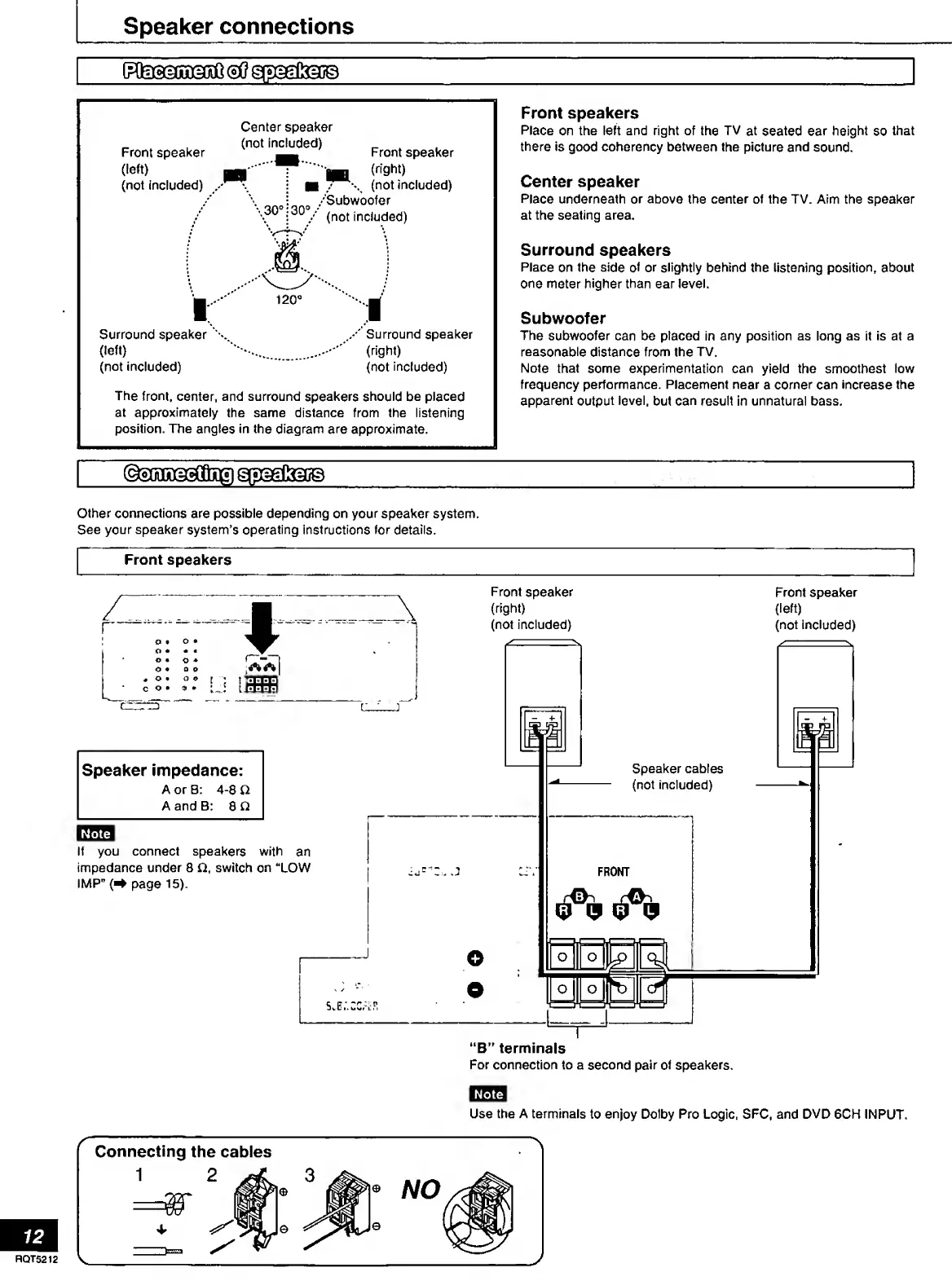

Speaker connections
Front speaker
(left)
(not included)
Surround speaker
(left)
(not included)
Center speaker
(not included)
.30° 30°
Front speaker
M (right)
\ (not included)
Subwoofer
(not included)
120 °
Surround speaker
(right)
(not included)
The front, center, and surround speakers should be placed
at approximately the same distance from the listening
position. The angles in the diagram are approximate.
Front speakers
Place on the left and right of the TV at seated ear height so that
there is good coherency between the picture and sound.
Center speaker
Place underneath or above the center of the TV. Aim the speaker
at the seating area.
Surround speakers
Place on the side of or slightly behind the listening position, about
one meter higher than ear level.
Subwoofer
The subwoofer can be placed in any position as long as it is at a
reasonable distance from the TV.
Note that some experimentation can yield the smoothest low
frequency performance. Placement near a comer can increase the
apparent output level, but can result in unnatural bass.
©gimigcgtaiQ
Other connections are possible depending on your speaker system.
See your speaker system’s operating instructions for details.
“B” terminals
For connection to a second pair of speakers.
CEB
Use the A terminals to enjoy Dolby Pro Logic, SFC, and DVD 6CH INPUT.

Technics SA-AX540 Specifications

General

Tuning Range	FM, MW
Damping Factor	30
Input Sensitivity	150mV (line)
Power Output	100W per channel (8 ohms, 20Hz-20kHz, 0.9% THD)
Impedance	8 ohms
Dimensions	430 x 158 x 370mm
Speaker Load Impedance	8Ω to 16Ω
Video Connections	Composite Video
