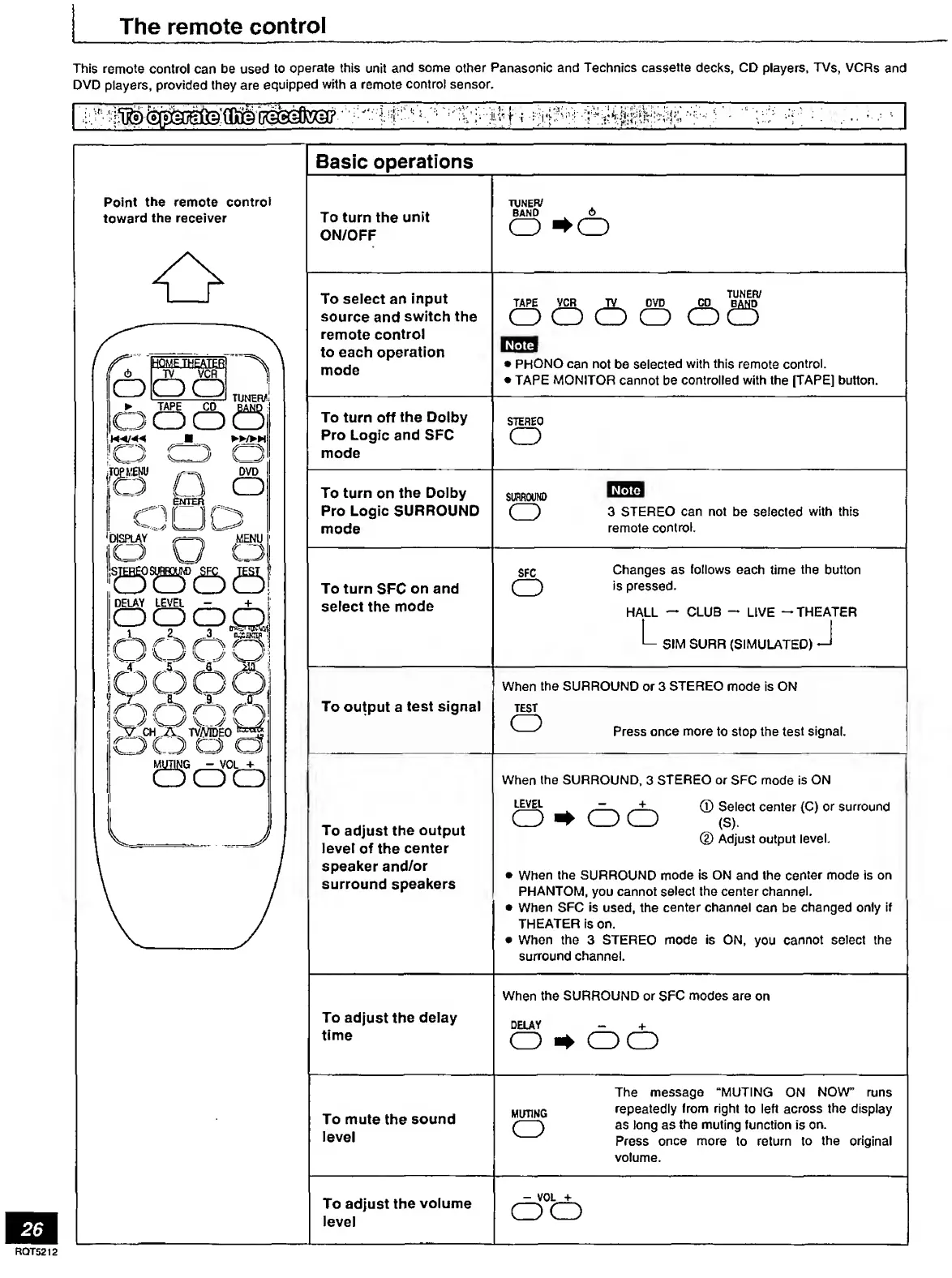

The
remote
control
This
remote
control
can
be
used
to
operate
this
unit
and
some
other
Panasonic
and
Technics
cassette
decks,
CD
players,
TVs,
VCRs
and
DVD
players,
provided
they
are
equipped
with
a
remote
control
sensor.
(S
Q
i
cue
'DISPLAY
:i
r
|
DELAY
LEVEL
!oo
IrS
rN
i.O'
4
5
,00
,fK
i
VWi
QCJ
:j
MUTING
0
r
'y
■
vyyiDEo
O)
cj
^VOL
+
oo
Basic
operations
To
turn
the
unit
ON/OFF
TUNER/
BAND
6
o
*o
To
select
an
input
source
and
switch
the
remote
control
to
each
operation
mode
TUNER/
TAPE
VCR
TV
OVD
CD
BAND
o
o
o
o
oo
l!BIB
•
PHONO
can
not
be
selected
with
this
remote
control.
•
TAPE
MONITOR
cannot
be
controlled
with
the
[TAPE]
button.
To
turn
off
the
Dolby
Pro
Logic
and
SFC
mode
STEREO
O
To
turn
on
the
Dolby
Pro
Logic
SURROUND
mode
SURROUND
CBS
(
)
3
STEREO
can
not
be
selected
with
this
remote
control.
To
turn
SFC
on
and
select
the
mode
Sfc
Changes
as
follows
each
time
the
button
(
)
is
pressed.
HALL
—
CLUB
-
LIVE
-
THEATER
L
SIM
SURR
(SIMULATED)
J
To
output
a
test
signal
When
the
SURROUND
or
3
STEREO
mode
is
ON
TEST
(-)
v
—
/
Press
once
more
to
stop
the
test
signal.
To
adjust
the
output
level
of
the
center
speaker
and/or
surround
speakers
When
the
SURROUND,
3
STEREO
or
SFC
mode
is
ON
®
Select
center
(C)
or
surround
(
_
)
^
(
_
)
(
_
)
(S).
(D
Adjust
output
level.
•
When
the
SURROUND
mode
is
ON
and
the
center
mode
is
on
PHANTOM,
you
cannot
select
the
center
channel.
•
When
SFC
is
used,
the
center
channel
can
be
changed
only
if
THEATER
is
on.
•
When
the
3
STEREO
mode
is
ON,
you
cannot
select
the
surround
channel.
To
adjust
the
delay
time
When
the
SURROUND
or
SFC
modes
are
on
DELAY
-
+
o
OO
To
mute
the
sound
level
The
message
“MUTING
ON
NOW”
runs
muting
repeatedly
from
right
to
left
across
the
display
as
long
as
the
muting
function
is
on.
"
Press
once
more
to
return
to
the
original
volume.
-
VOL
+
OO
RQT5212
To
adjust
the
volume
level
