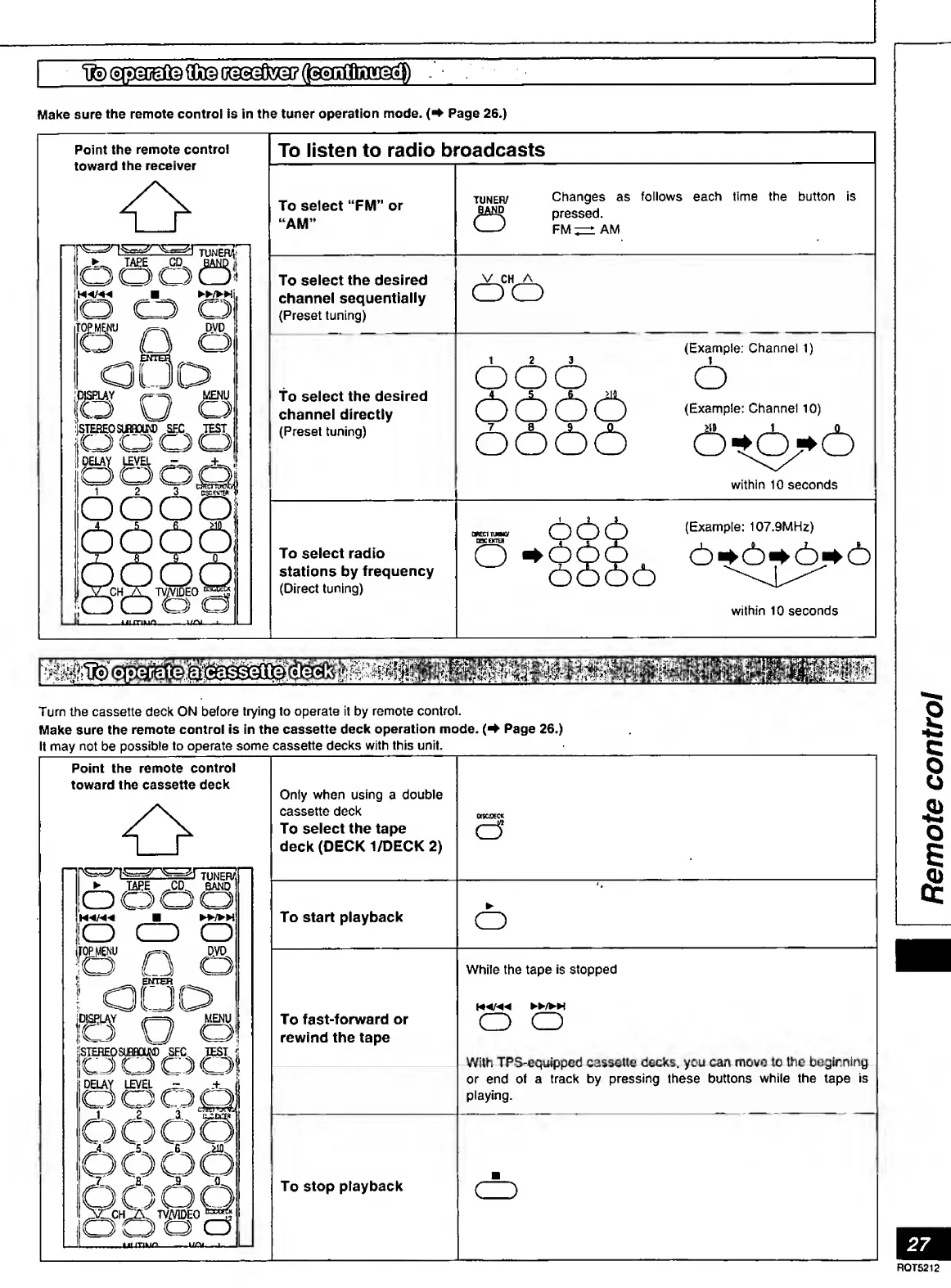

Make sure the remote control is in the tuner operation mode. (* Page 26.)
point the remote control | To listen to radio broadcasts
toward the receiver
To select “FM” or
“AM”
To select the desired
channel sequentially
(Preset tuning)
to select the desired
channel directly
(Preset tuning)
To select radio
stations by frequency
(Direct tuning)
tunefv Changes as follows each time the button is
pressed.
v- ) FM^AM
V CH A
OO
1 2 3
66
(Example: Channel 1)
ooo o
6666 (Example: Channel 10)
6 * 6 , *6
within 10 seconds
(Example: 107.9MHz)
within 10 seconds
Turn the cassette deck ON before trying to operate it by remote control.
Make sure the remote control is in the cassette deck operation mode. (* Page 26.)
It may not be possible to operate some cassette decks with this unit.
Point the remote control
toward the cassette deck
Only when using a double
cassette deck
To select the tape
deck (DECK 1/DECK 2)
To start playback
To fast-forward or
rewind the tape
To stop playback
While the tape is stopped
o o
With TPS-equipped cassette decks, you can move to the beginning
or end of a track by pressing these buttons while the tape is
playing.
27
ROT5212
Remote
control

Technics SA-AX540 Specifications

General

Tuning Range	FM, MW
Damping Factor	30
Input Sensitivity	150mV (line)
Power Output	100W per channel (8 ohms, 20Hz-20kHz, 0.9% THD)
Impedance	8 ohms
Dimensions	430 x 158 x 370mm
Speaker Load Impedance	8Ω to 16Ω
Video Connections	Composite Video
