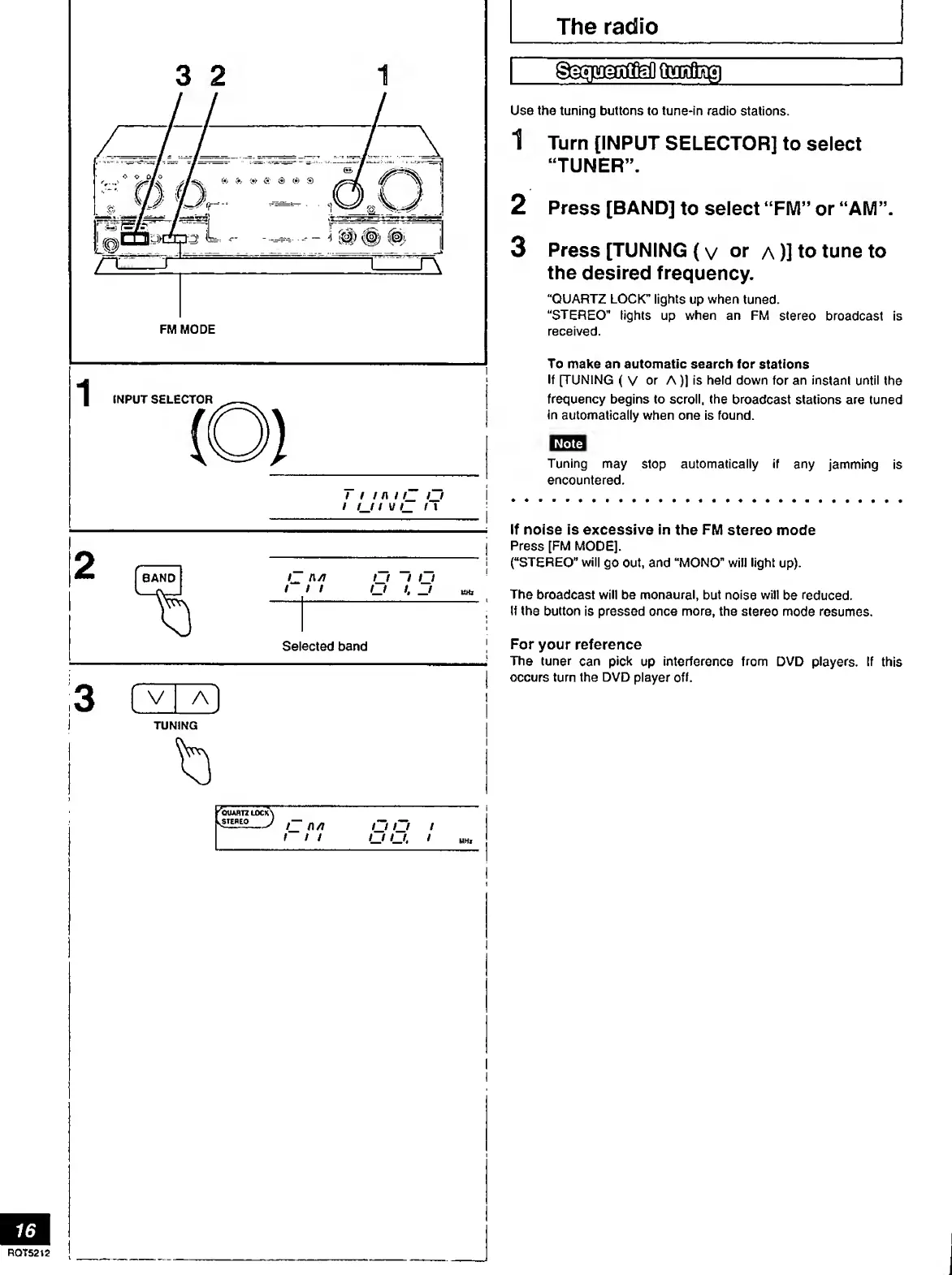

The radio
Use the tuning buttons to tune-in radio stations.
1 T urn [INPUT SELECTOR] to select
“TUNER”.
2 Press [BAND] to select “FM” or “AM”.
3 Press [TUNING ( v or A)] to tune to
the desired frequency.
“QUARTZ LOCK” lights up when tuned.
"STEREO" fights up when an FM stereo broadcast is
received.
To make an automatic search for stations
If [TUNING (V or A)] is held down for an instant until the
frequency begins to scroll, the broadcast stations are tuned
in automatically when one is found.
nnn
Tuning may stop automatically if any jamming is
encountered.
if noise is excessive in the FM stereo mode
Press [FM MODE).
(“STEREO" will go out, and “MONO” will light up).
The broadcast will be monaural, but noise will be reduced.
If the button is pressed once more, the stereo mode resumes.
For your reference
The tuner can pick up interference from DVD players. If this
occurs turn the DVD player off.

Technics SA-AX540 Specifications

General

Tuning Range	FM, MW
Damping Factor	30
Input Sensitivity	150mV (line)
Power Output	100W per channel (8 ohms, 20Hz-20kHz, 0.9% THD)
Impedance	8 ohms
Dimensions	430 x 158 x 370mm
Speaker Load Impedance	8Ω to 16Ω
Video Connections	Composite Video
