Technics SA-AX540 User Manual

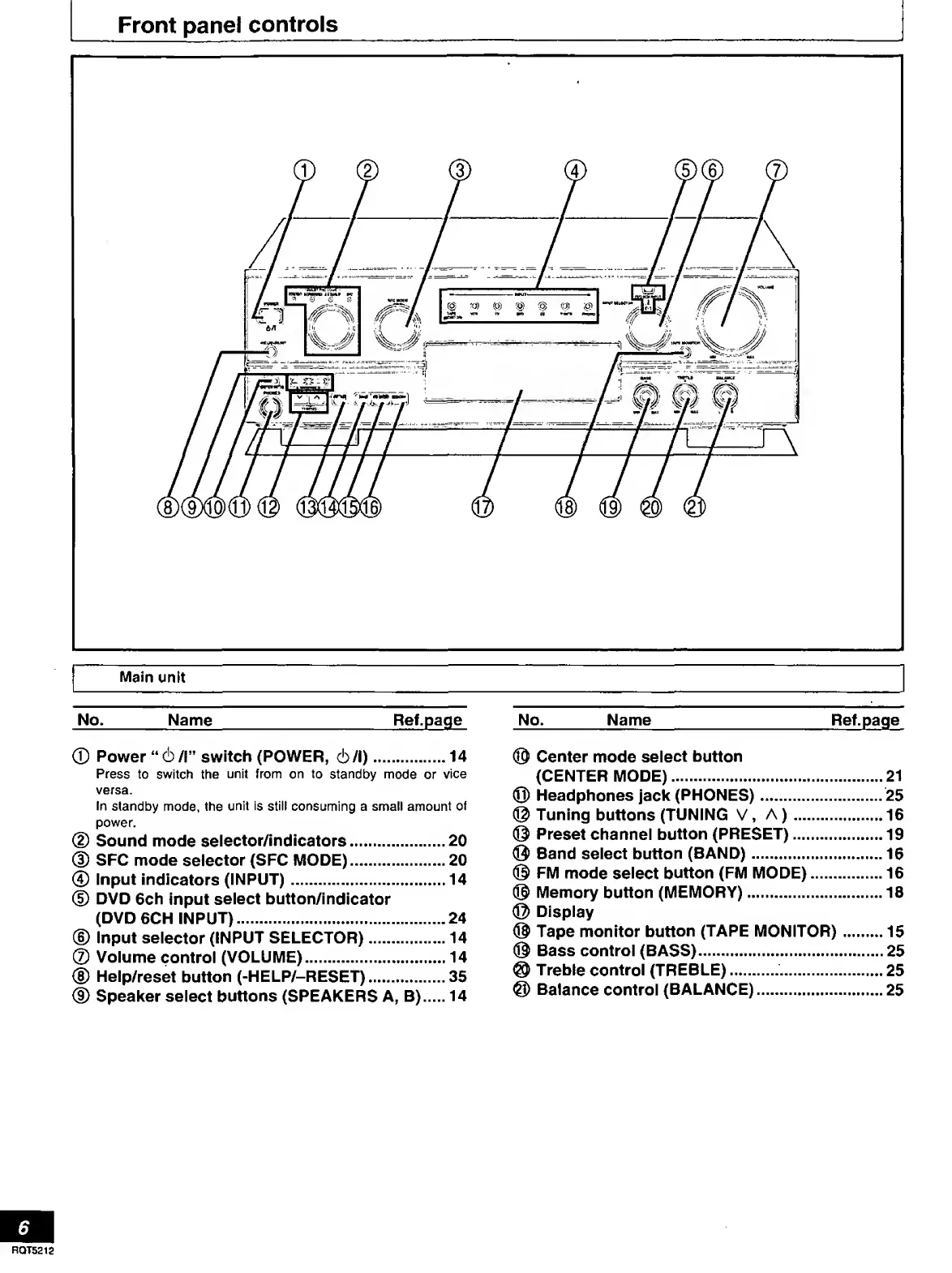

© Power “6 /I” switch (POWER, 6/1) . 1 4
Press to switch the unit from on to standby mode or vice
versa.
In standby mode, the unit is still consuming a small amount of
power.
© Sound mode selector/indicators.20
0 SFC mode selector (SFC MODE).20
0 Input indicators (INPUT).14
0 DVD 6ch Input select button/indicator
(DVD 6CH INPUT).24
0 Input selector (INPUT SELECTOR).14
© Volume control (VOLUME).14
® Help/reset button (-HELP/-RESET).35
0 Speaker select buttons (SPEAKERS A, B).14
© Center mode select button
(CENTER MODE).21
CD Headphones jack (PHONES).25
© Tuning buttons (TUNING V, A).16
© Preset channel button (PRESET).19
© Band select button (BAND).16
© FM mode select button (FM MODE).16
© Memory button (MEMORY).18
© Display
© Tape monitor button (TAPE MONITOR).15
© Bass control (BASS).25
® Treble control (TREBLE)..25
© Balance control (BALANCE).25
6
RQT5212

Technics SA-AX540 Specifications

General

Brand	Technics
Model	SA-AX540
Category	Stereo Receiver
Language	English
