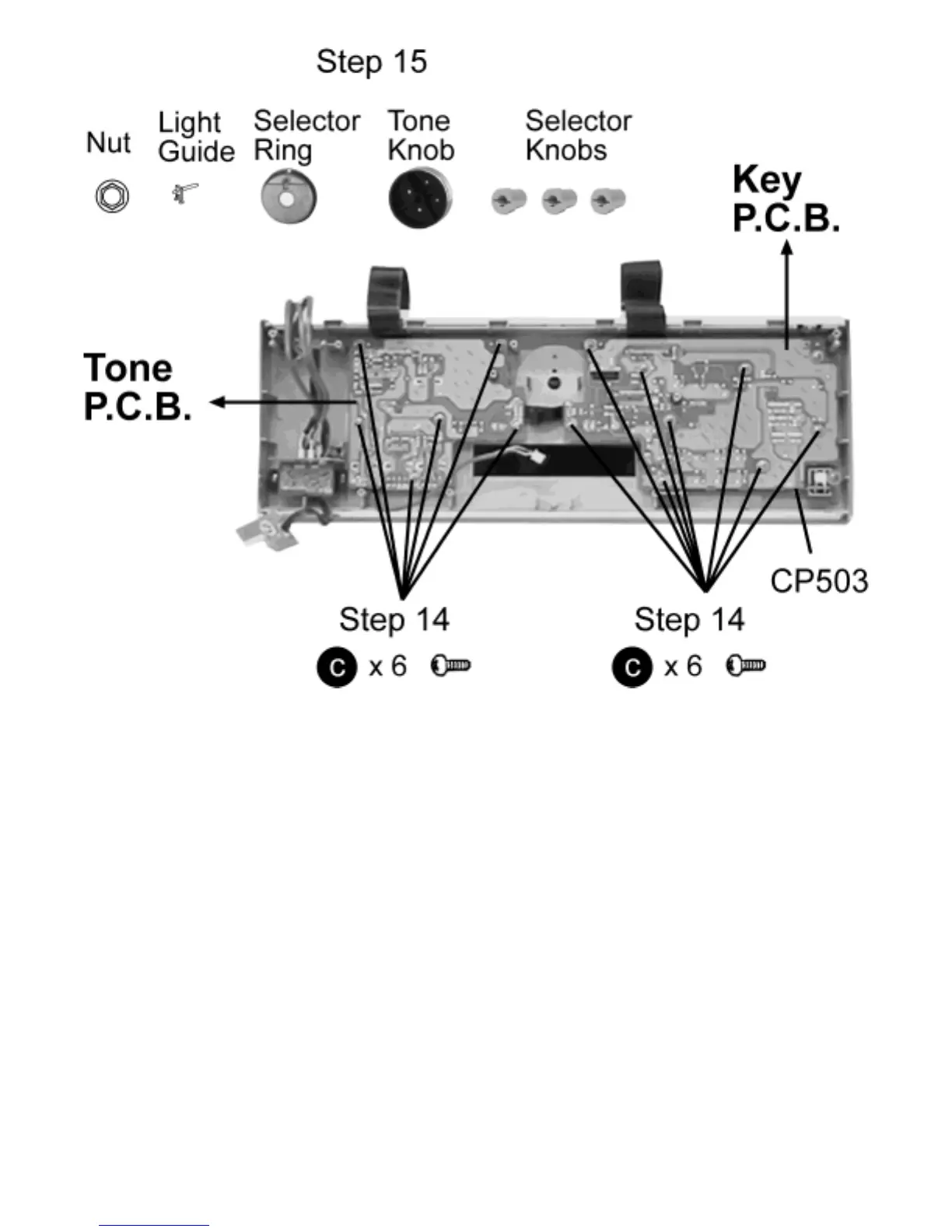

Step 14 Remove all the screws.
Step 15 Remove Selector Knobs, Tone Knob, Selector Ring, Light Guide and unscrew the nut./Take note
of CP503.
