Step 17 Release the AC In/Out P.C.B. catch.
Step 18 Release the CP771 and pull out the rear panel in the direction shown.

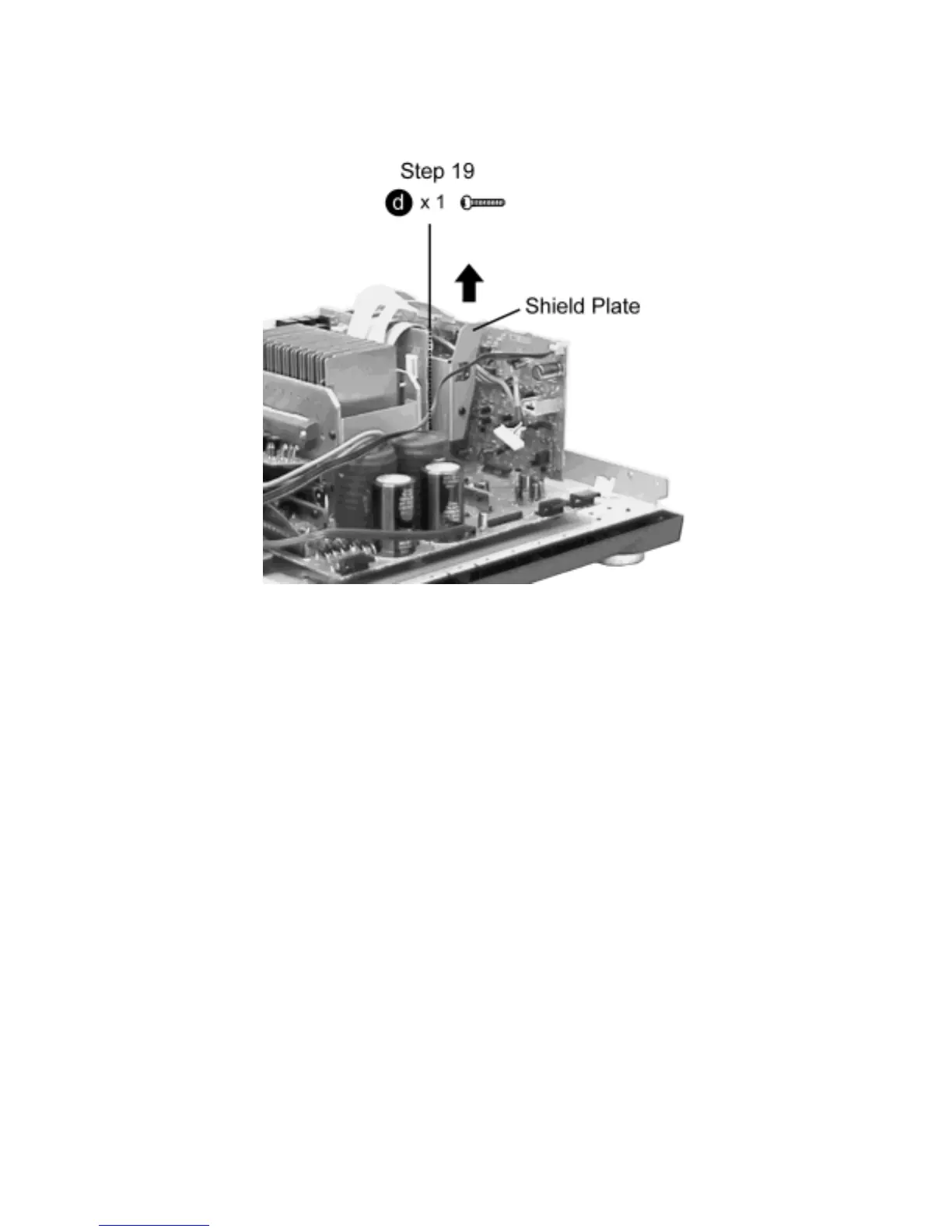

Step 19 Remove the screw and Shield Plate.
